SIMSCAN-E Intelligent, Wireless and Palm-Sized 3D Scanner

Category： Handheld 3D Scanners
INQUIRY EMAIL

Product Description:

SIMSCAN-E Intelligent, Wireless and Palm-Sized 3D Scanner

SIMSCAN-E wireless handheld 3D scanner, with a lightweight base and cutting-edge wireless scanning technology, opens up a new form of portable, wireless and free scanning.
Equipped with a powerful edge computing engine and high-definition industrial camera module, the measurement rate is up to 6.3 million measurements/second, and it can quickly capture measurement-level high-precision 3D data. Equipped with 3 scanning modes: high-speed, fine, and deep hole, it has leading performance and can easily handle precise small space or complex structure measurement at any time.

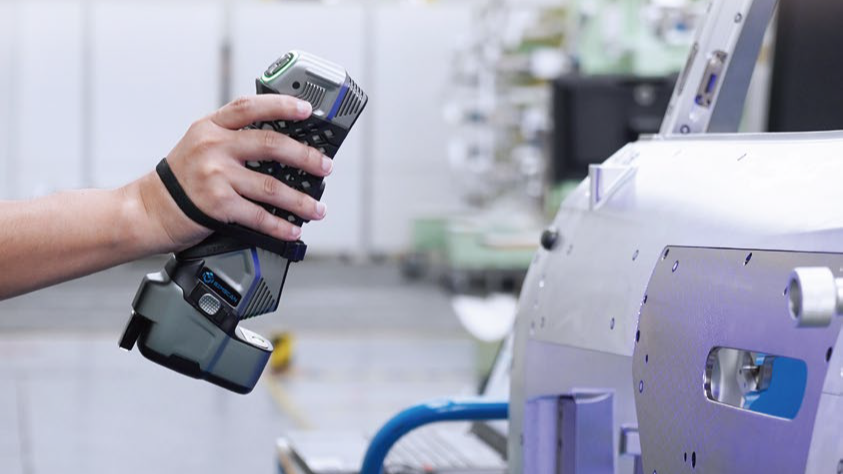

The compact and wireless SIMSCAN-E portable 3D scanner weighs only 600 grams and measures 203 × 80 × 44 mm, making it extremely easy to scan with one hand. Enjoy powerful data processing capabilities and say goodbye to tangled cables. With SIMSCAN-E's advanced edge computing and wireless data transmission, users can ensure freedom and flexibility in every scan. Whether you are performing 3D scanning in a complex workshop, at height, or outdoors without power, nothing can stop you. SIMSCAN-E is equipped with a high-capacity battery to ensure extended runtime. Its dual power design allows for easy battery replacement without interrupting the scanning workflow. The intelligent battery level indicator keeps you informed throughout the scanning process. Its detachable charging base can seamlessly switch between wireless and wired modes to adapt to different scenarios and needs.

Fast, Smooth, and Efficient

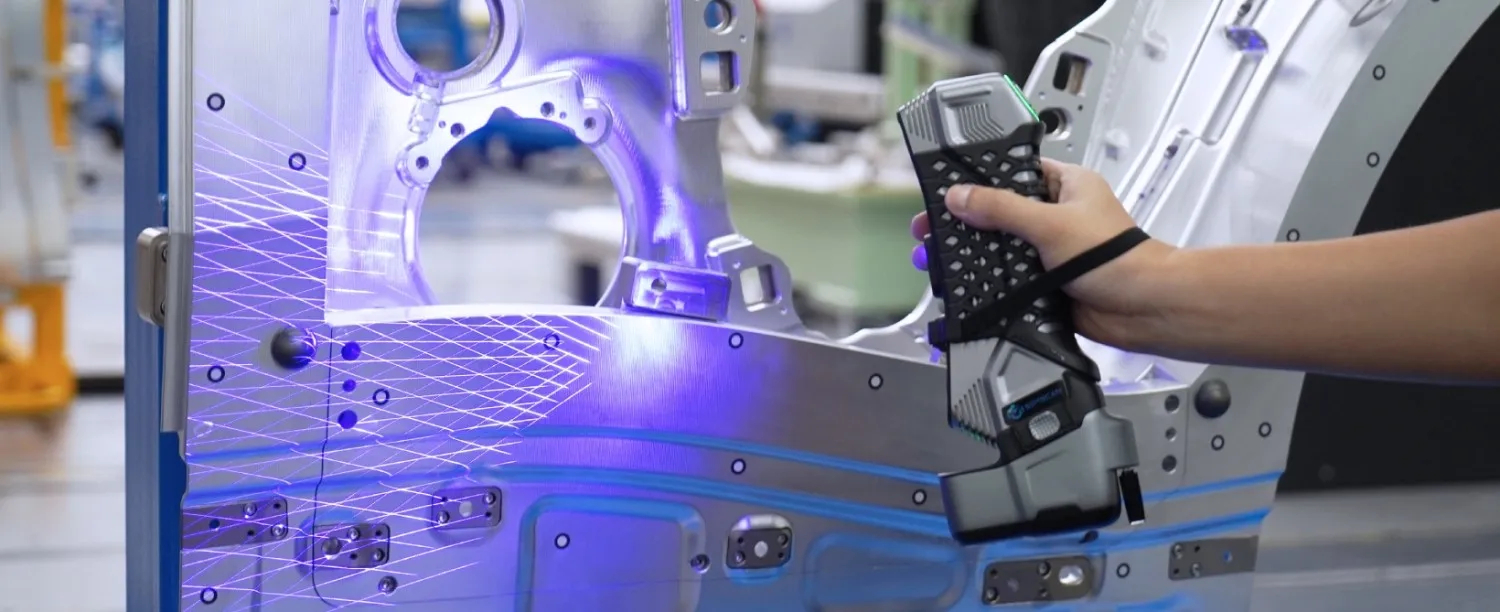

Thanks to its advanced algorithms, SllSCAN-E can provide a high measurement rate of 6.3 million measurements per second. Coupled with the 81 blue laser frame rate, it ensures an efficient and smooth scanning experience.

The high measurement rate enables rapid data acquisition, capturing intricate details and complex geometries with exceptional precisionprovide comprehensive coverage and enhanced accuracy, minimizing the need for multiple passes or redundant scans. The 180 fps framand scan quality, even in detailed and complex scenarios.

Exceptional Precision and Detail

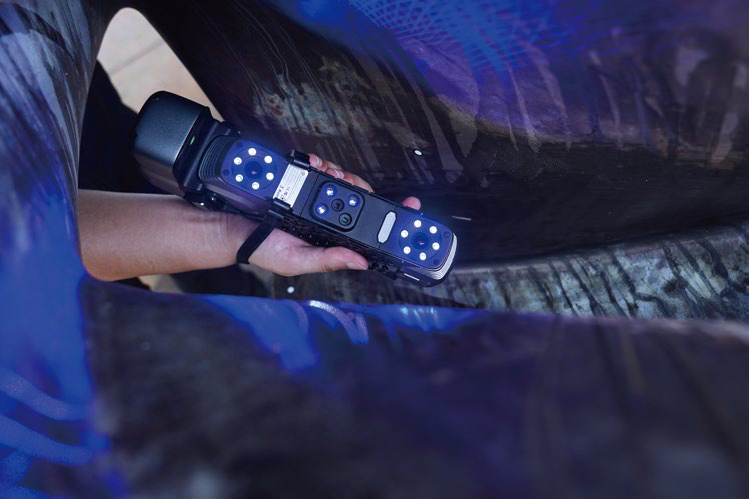

SIMSCAN-E is equipped with advanced industrial cameras and sophisticated image enhancement algorithms, designed to capture every intricate feature with exceptional precision. Its sub-pixel feature extraction technology ensures that even the smallest details are recorded accurately, making it ideal for applications requiring meticulous detail and fine resolution.

Technical Specifications

Type		SIMSCAN-E
Scan mode	Ultra-fast scanning	63 blue laser lines (Triple Cross Technology)
	Hyperfine scanning	17 blue parallel laser lines
	Deep hole scanning	1 extra blue laser line
Accuracy(1)		Up to 0.020 mm
Scanning rate up to		6,300,000 measurements/s
Scanning area up to		700 mm × 600 mm
Laser class		CLASSⅡ (eye-safe)
Resolution up to		0.020 mm
Volume accuracy(2)	Standard	0.015 mm + 0.035 mm/m
	Paired with MSCAN-L15	0.015 mm + 0.012 mm/m
Stand-off distance		300 mm
Depth of field		550 mm
Output formats		.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Dimensions		203 mm × 80 mm × 44 mm
Weight		600 g
Operating temperature range		-10°C‒40°C
Interface mode		USB3-B
Patents		CN204329903U, CN104501740B, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204902785U, CN106403845B, CN110030946B, CN212300269U, CN211904059U, CN211696268U, CN306053019S, CN212606697U, CN306321502S
