TrackProbe 3D Probing System

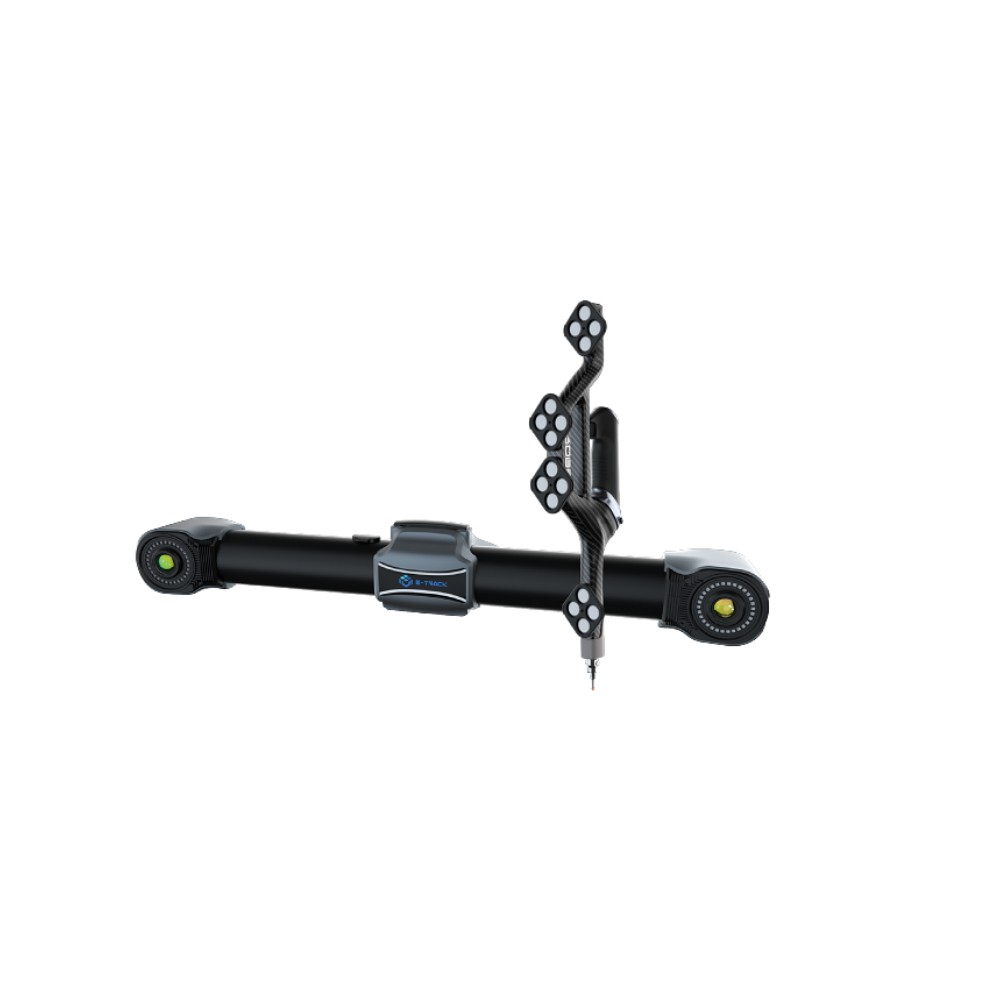

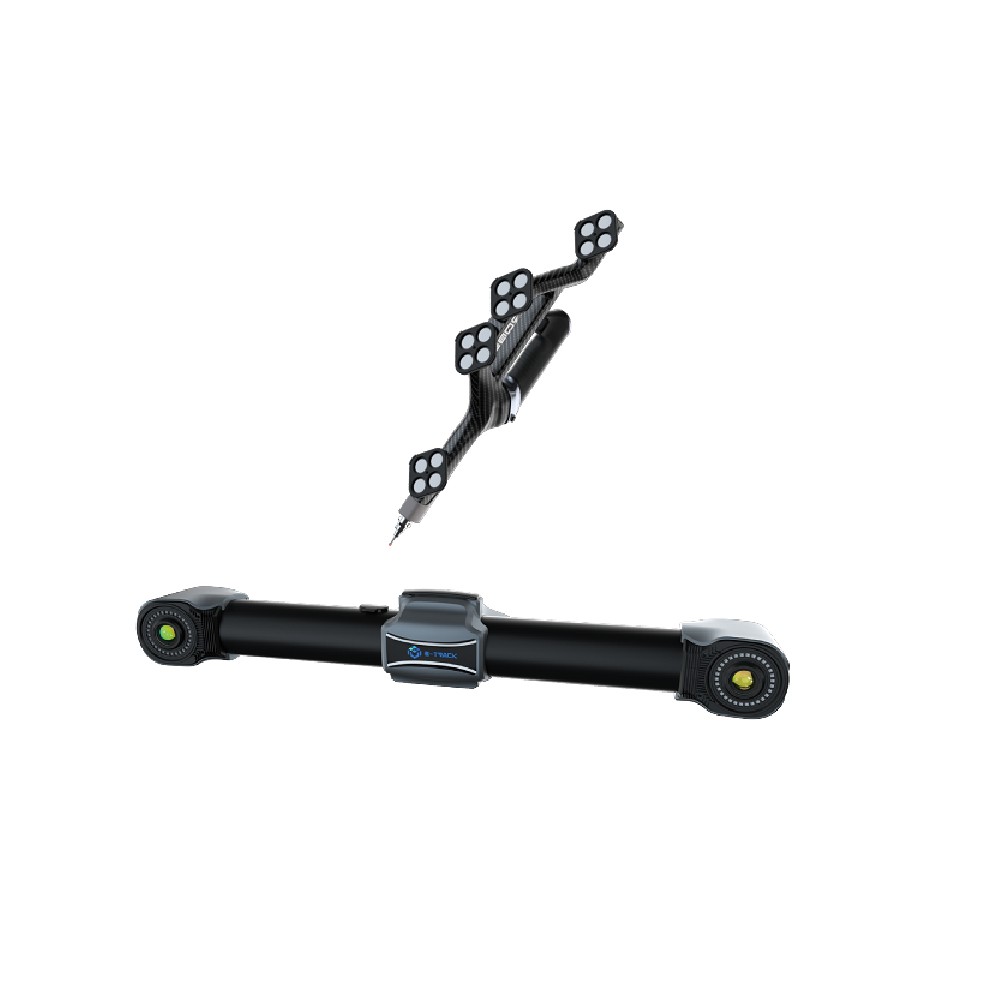

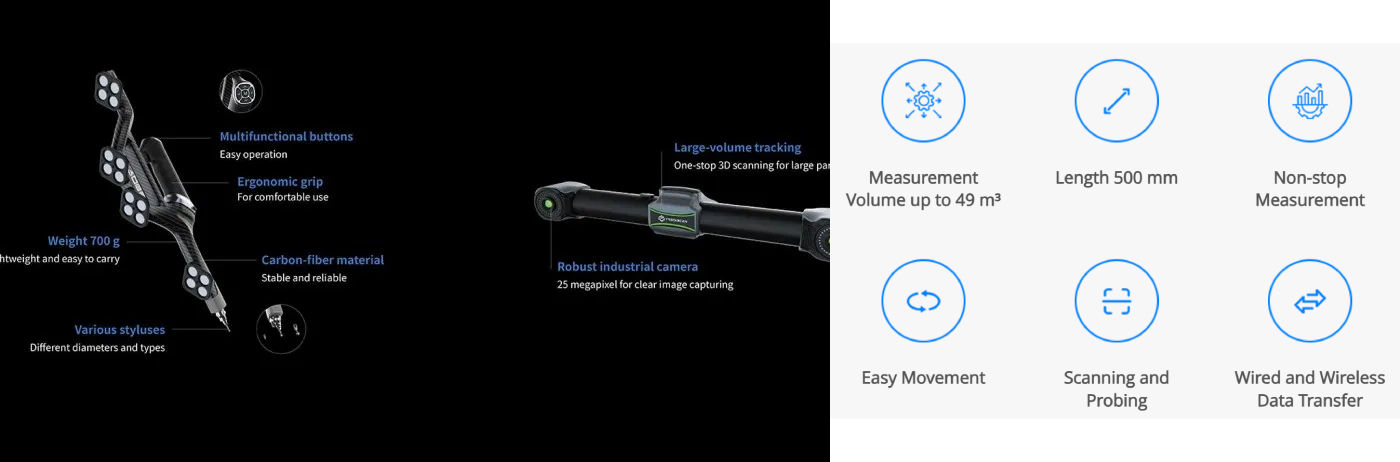

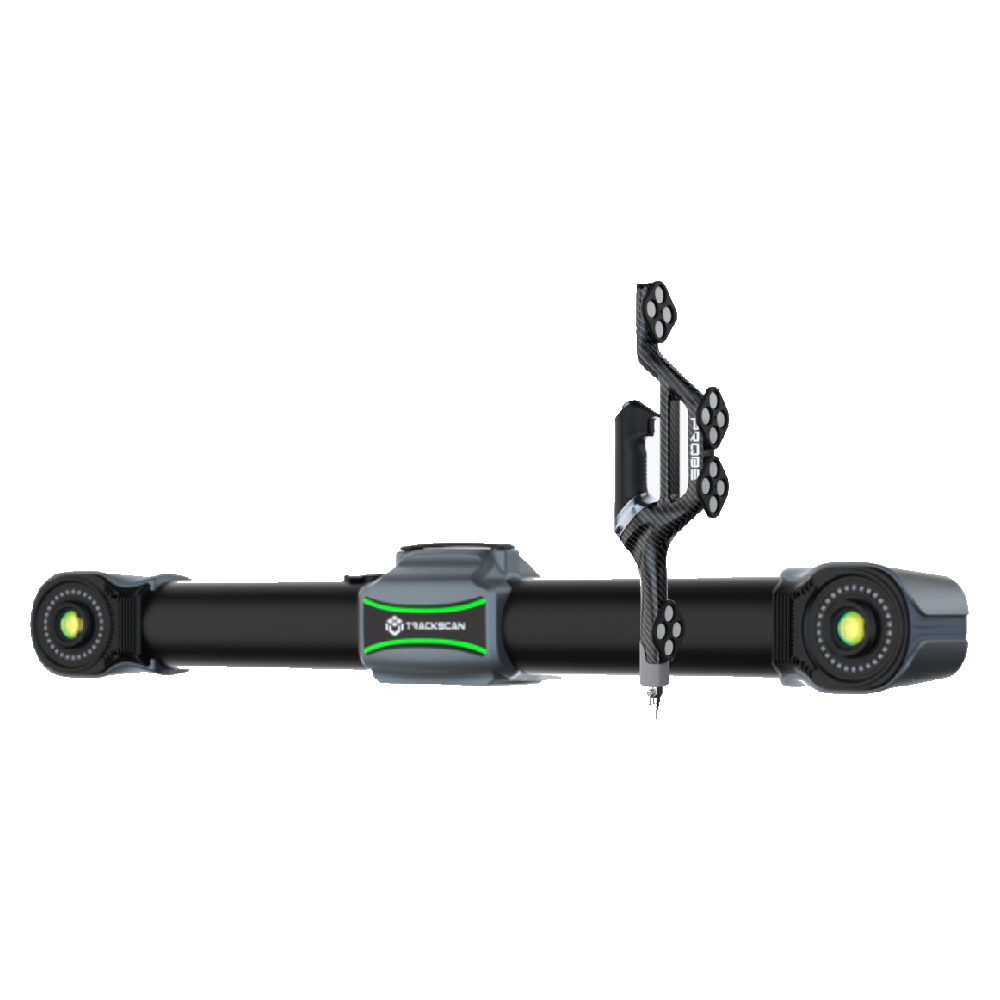

The TrackProbe 3D probing system, consisting of a tracking i-Probe and the latest optical tracker i-Tracker, is designed for metrology-level measurements. As a versatile 3D digitizer, TrackProbe excels in tasks such as fixture adjustment, benchmark marking, and geometric and dimensional inspection of engineering machinery on the shop floor. It is highly precise, portable, and easy-to-use, which ensures high-quality measurements for parts in large measurement volumes, at long distances, and in harsh conditions.

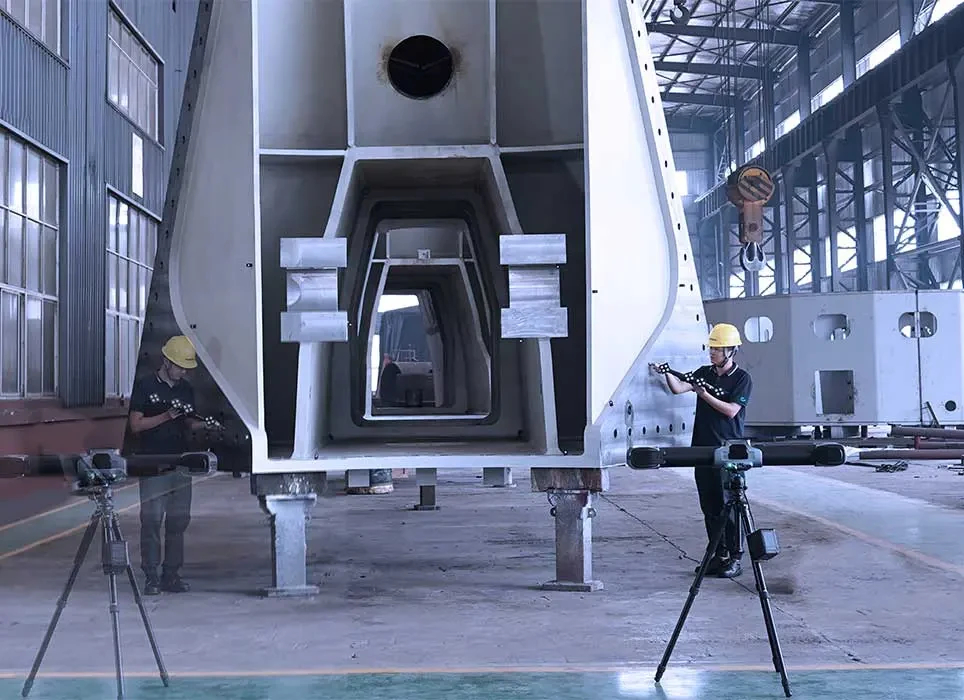

TrackProbe is a system that allows you to perform 3D measurements with high accuracy and flexibility. You can use it for various tasks on the shop floor, such as fixture adjustment, benchmark marking, and geometric and dimensional inspection of engineering machinery. TrackProbe can handle both small and large parts, and has no constraints on the measurement situation.

Extensive Measurement

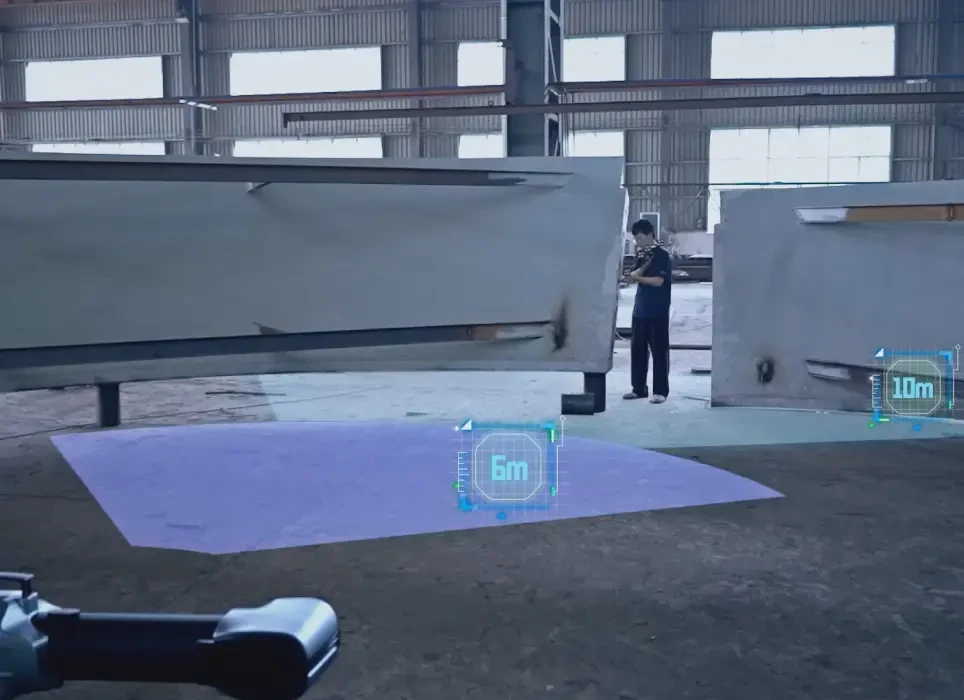

When combined with i-Tracker, which has a large field-of-view, i-Probe can measure parts in a distance of up to 6 meters. The tracking distance can be extended and reach 10 meters. Its wide-area measurement enables it to measure large-sized parts with high accuracy and excellent performance.

Precise Metrology-grade Results

TrackProbe adopts high-precision optical tracking and robust algorithms to measure the shapes and GD&T of different parts with high accuracy. The volume accuracy is 0.067 mm for 28.6 m³, and 0.049 mm for 10.4m³.

Non-stop Measurement and Easy Movement

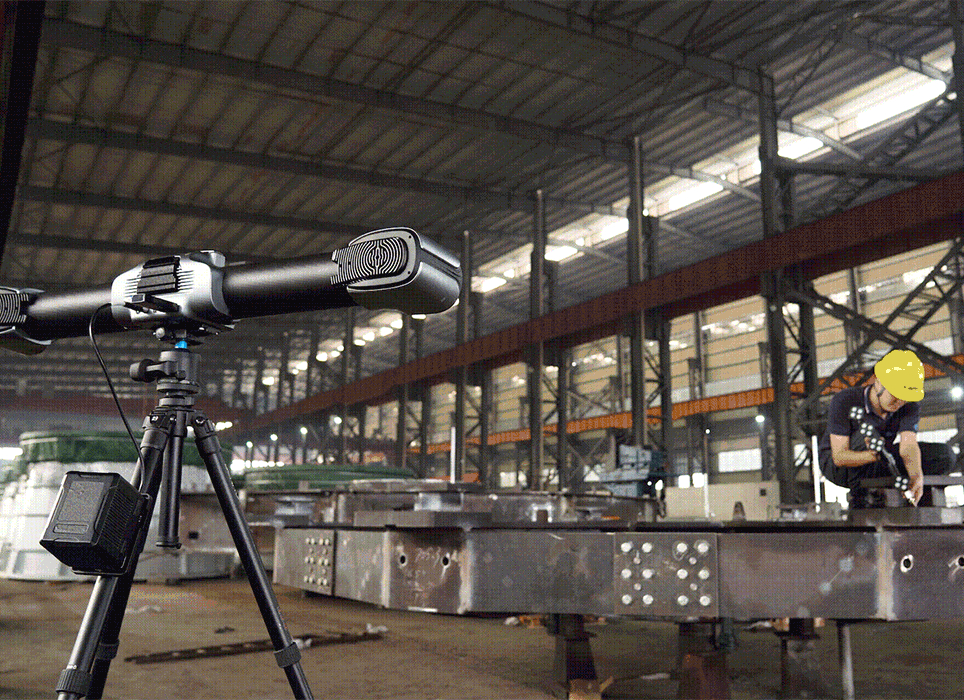

The probe locations can be approached from any angle as long as the i-Probe 3D digitizer is within the optical tracker cameras’ field of view. i-Probe’s poses can be tracked and mapped to the coordinate systems in real time by the tracker so that it can measure continuously without the need to reposition.

Based on advanced software and positioning algorithms, only a few markers are needed for i-Tracker to move and continue tracking the i-Probe. It greatly simplifies the movement and measurement processes and it is powerful to obtain data of large parts in a long distance.

Diverse Uses

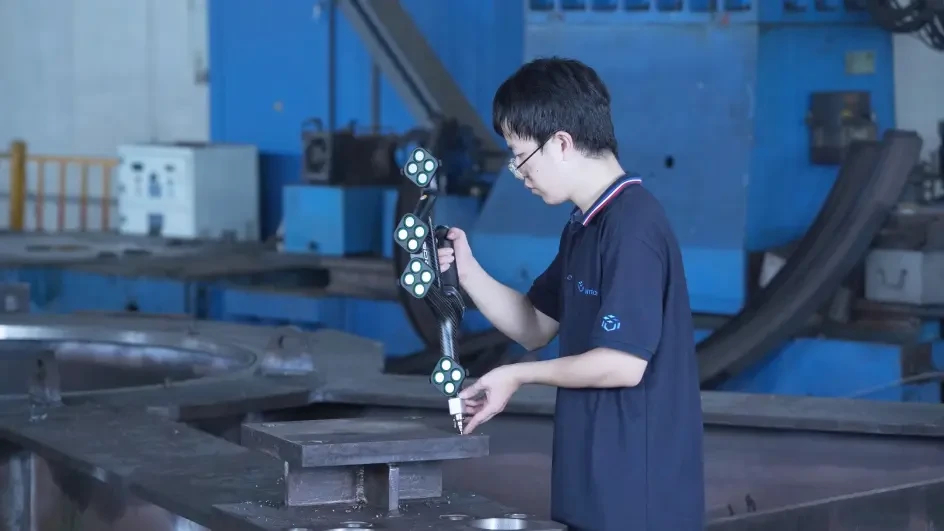

The i-Probe is lightweight, portable, and reliable. It can be operated in various settings regardless of vibrations, temperature changes, humidity, and lighting. With dynamic referencing, it can calculate and correct position deviations to achieve high-precision measurements on shop floors or outdoors. It can deal with complex surfaces, high-precision parts, or large-scale parts without any problem.

Technical Specifications

Type		TrackProbe
Volumetric accuracy(1)	10.4 m³ (Tracking distance 3.5 m)	0.049 mm (0.0019 in)
	28.6 m³ (Tracking distance 5.0 m)	0.067 mm (0.0026 in)
Measurement distance (per tracker)		Max 10 m (393.7 in)
Part size range (recommended)		0.1 m-12 m (3.9 in × 472.4 in)
Camera pixel of i-Tracker		25 MP
Dimensions of i-Probe 500		510*145*89 mm (20.1 × 5.7 × 3.5 in)
Weight of i-Probe 500		700 g (1.54 lb)
Operating temperature range		0–45°C (32℉-113℉)
Operating humidity range (non-condensing)		10–90% RH
Connection		Wired and wireless
Number of targets		16
Patents		ZL201520680513.1, ZL202210065778.5, ZL202221475584.4, ZL202221766958.8, ZL202320545878.8

(1)Comply with ISO 10360-2 standard.
