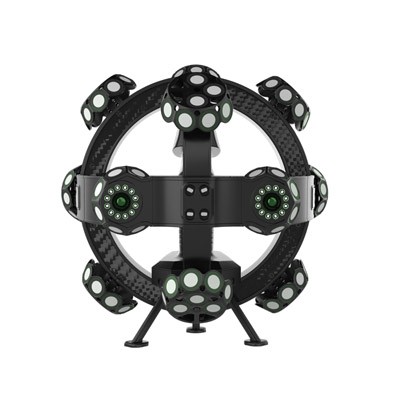

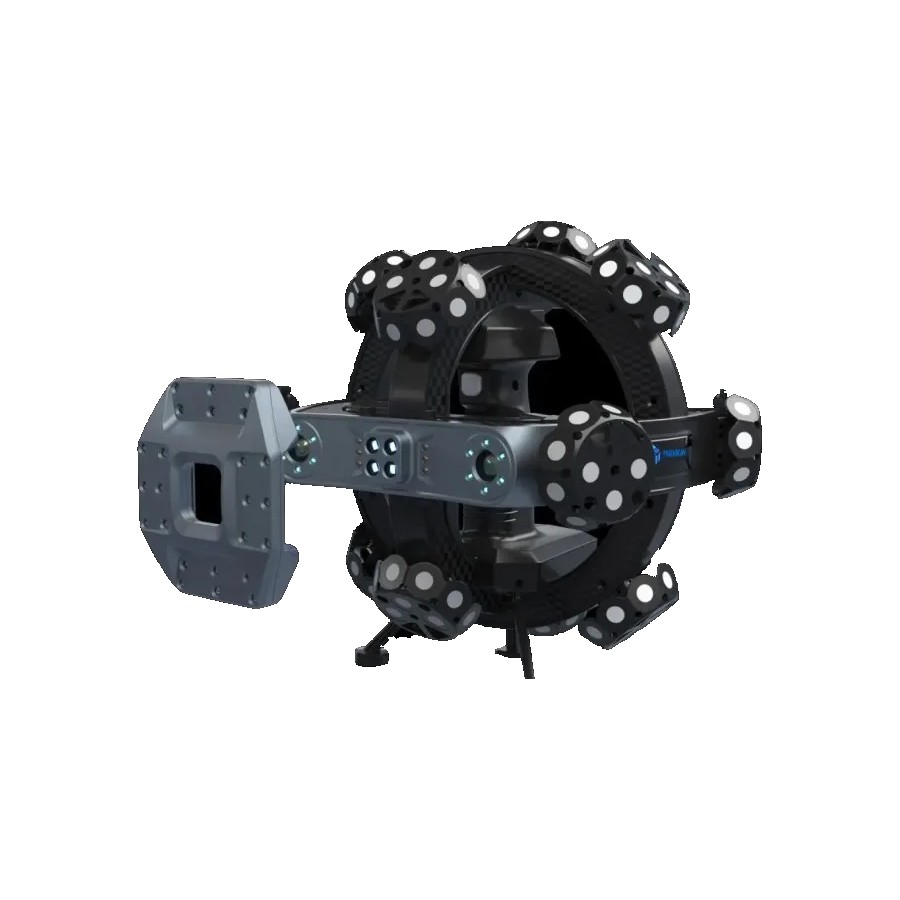

NIMBLETRACK-CR Wireless 3D Scanning System

NIMBLETRACK-CR Wireless 3D Scanning System

Category： Tracking 3D System
INQUIRY EMAIL

Product Description:

TrackScan-P Optical 3D Tracking Scanner

Engineered with intelligent optical tracking measurement and high-resolution cameras, TrackScan-P 3D Tracking Scanner can precisely measure parts without having to stick reference targets. This optical 3D measurement system, consisting of a portable 3D scanner and an optical tracker i-Tracker, suits well for 3D scanning large-scale objects. It can be widely applied for quality control, product development, reverse engineering, and more in industries such as aerospace, automotive, rail transport, and mold.

By combining it with additional modules, it can enable extendable applications. It can be paired with an auxiliary light module to inspect circles, grooves, and machined holes of stamping parts. With a tracking Probe, it conducts precise contact measurements for edges, circles, and grooves. When being mounted onto a robot arm, it is an optimal choice for intelligent and automated 3D inspection.

Extendable Applications

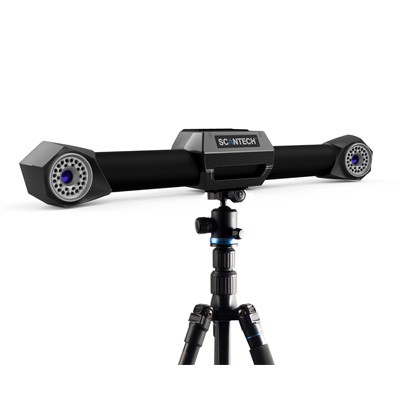

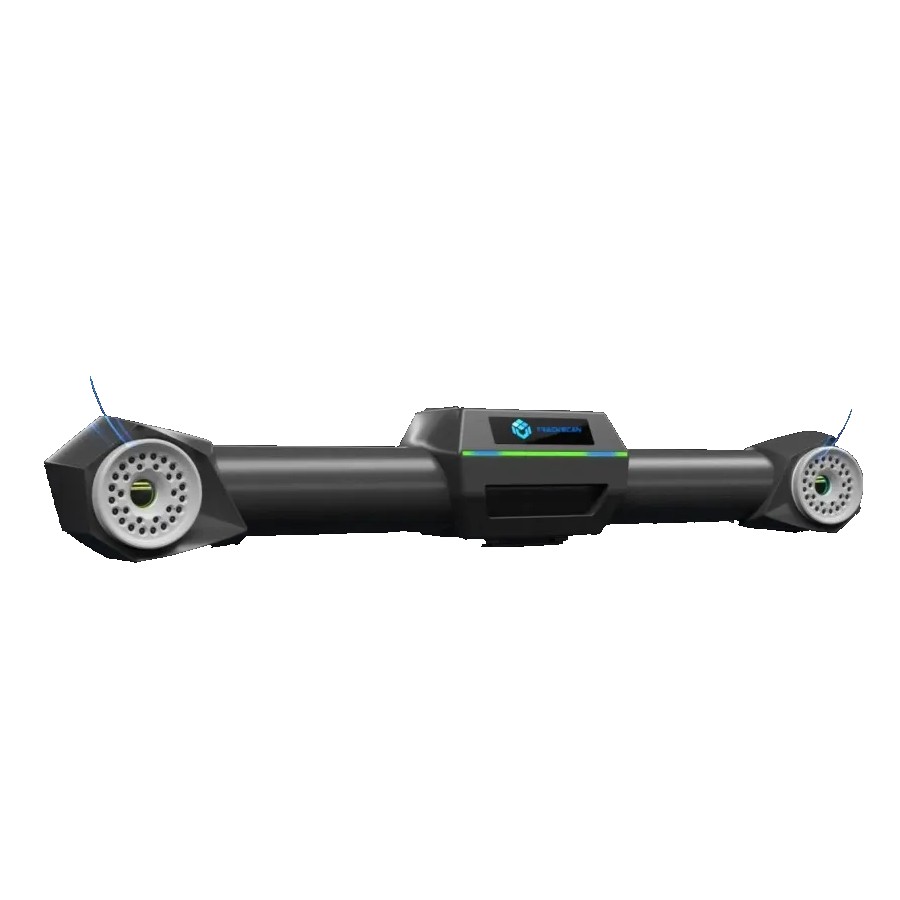

i-Tracker

When combined with i-Tracker, which has a large field-of-view, i-Probe can measure parts in a distance of up to 6 meters. The tracking distance can be extended and reach 10 meters. Its wide-area measurement enables it to measure large-sized parts with high accuracy and excellent performance.Its measurement range can be dynamicaly extended by adding more -Trackers so that it can measure large-scale objects without compromising accuracy.

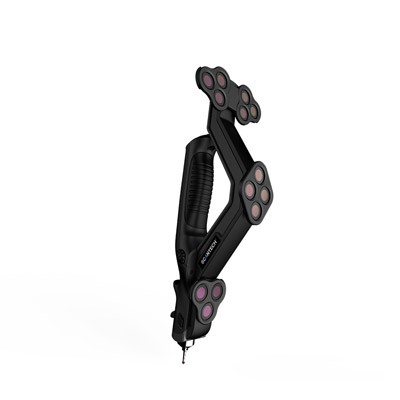

Probe

It can be paired with a tracking Probe (optional with diferent sizes) to probe inaccessible areas such as holes and hidden points. This contact measurement
probe can ensure precise results with high single-point repeatability of 0.030 mm

AM-CELL

It can be mounted on a robotic arm to form an automated 3D measurement system AM-CELL for eficient, and batch measurement.

M-Track

lts i-Tracker can also be combined with path planning software for intelligent robotic path planning and guiding.

Precise Edge Detection

TrackScan 3D tracking scanner features a stand-out function of instant edge detection. Users can inspect circles, grooves, and machined holes of stamping parts in various finishes on the site without having to import original CAD models.

The efficient edge detection is enabled thanks to its gray value measurement and optional auxiliary light module. Good measurements are ensured by delivering accurate and repeatable hole positions and diameters.

Unrivaled-fast & Detail-maker

By freely switching between multiple working modes, the TrackScan fits different scanning situations with an accuracy of up to 0.025 mm and an ultra-fast measurement rate of up to 2,600,000 measurements/s. Its 7 parallel blue laser lines perform well for capturing details. A single blue laser line aims to collect 3D data of deep holes and hard-to-reach areas efficiently.

Optical Tracking for Instant 3D Scanning

TrackScan-P 3D system’s optical tracking allows users to start scanning instantly without having to stick targets, significantly improving efficiency and decreasing costs.

Strong Adaptability

Made from aerospace-grade materials, it is sturdy and reliable. It also boasts a strong anti-interference capability to operate smoothly regardless of vibrations or thermal variations. Due to its advanced algorithm, TrackScan is robust in capturing 3D data of reflective and dark surfaces.

Technical Specifications

Type		TrackScan-P550	TrackScan-P542
Scan mode	Ultra-fast scanning	21 blue laser crosses	17 blue laser crosses
	Hyperfine scanning	7 blue parallel laser lines
	Deep hole scanning	1 blue laser line
Accuracy(1)		Up to 0.025 mm (0.0009 in)
Measurement rate up to		2,600,000 measurements/s	2,200,000 measurements/s
Scanning area up to		500 mm × 600 mm (19.7 in × 23.6 in)
Laser class		ClassⅡ (eye-safe)
Resolution up to		0.020 mm (0.0008 in)
Volumetric accuracy(2)	10.4 m³	0.060 mm (0.0024 in)
	18.0 m³	0.075 mm (0.0030 in)
Volumetric accuracy (With MSCAN photogrammetry system)		0.044 mm+0.012 mm/m (0.0017 in + 0.00014 in/ft)
Single-point repeatability of tracking Probe		0.030 mm (0.0012 in)
Hole position accuracy		0.050 mm (0.0020 in)
Object Size (Recommend)		100 mm – 8000 mm (3.9 in – 315.0 in)
Stand-off distance		300 mm (11.8 in)
Depth of field		400 mm (15.7 in)
Output formats		.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Operating temperature range		-10°C–40°C (14℉-104℉)
Operating humidity (Non-condensation)		10%–90% RH
Interface mode		USB 3.0
Certification		CE, UL
Patents		CN106500627，CN106500628，CN206132003U，CN204854633U，CN204944431U，CN204902788U，CN204963812U，CN204902785U，CN106403845，US10309770B2，CN204854633U，CN105068384B，CN105049664B，CN106403845B，CN214375417U，CN214379242U，CN214379241U，CN109000582B，CN112802002B，CN210567185U，CN211121096U，CN214149174U，CN114001671B，CN114001696B，CN114554025B，CN114205483B，US10309770B2，US11060853B2，KR102096806B1，EP3392831B1
