Product Description:

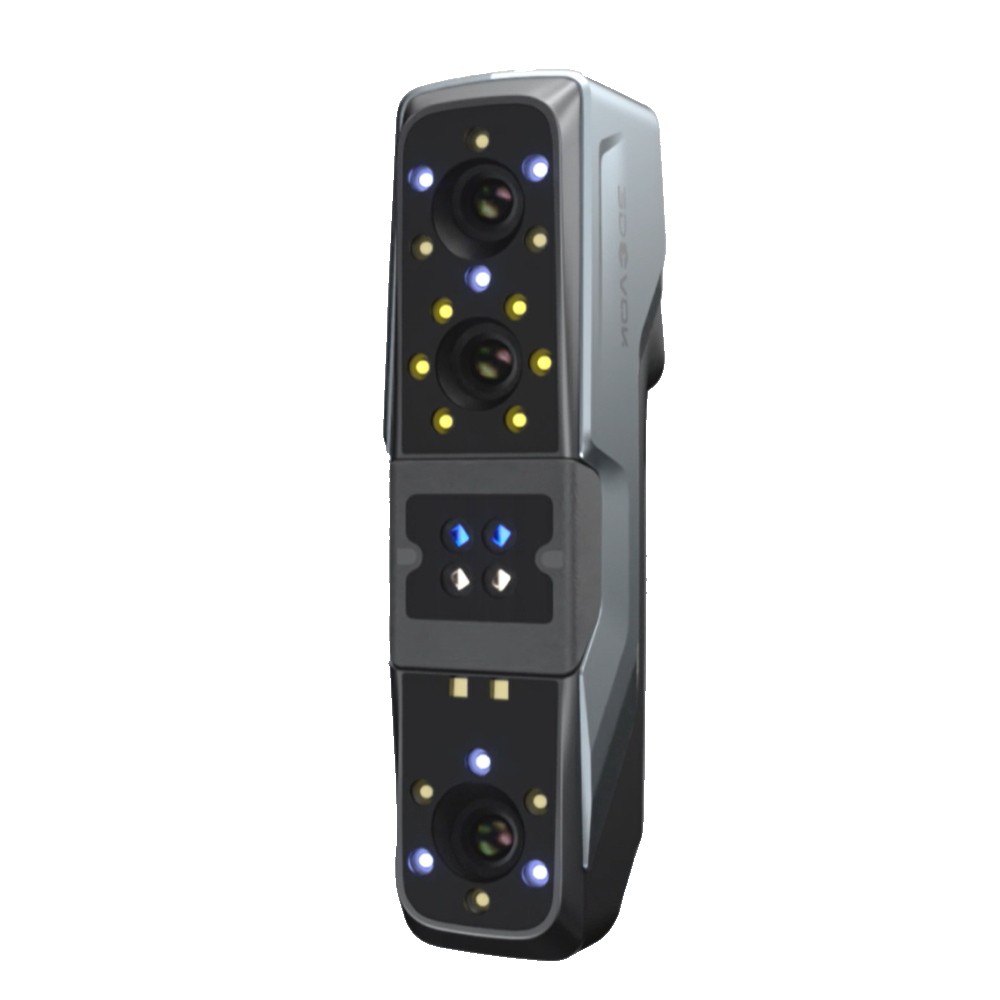

3DeVOK MT: Engineered for Professional Productivity
The 3DeVOK MT is a professional and versatile 3D scanner that stands out for its exceptional performance. Based on industrial-grade 3D scanning technology, it incorporates both lasers and speckles to offer you a magic tool. With professional scanning software, flexible parameter settings, intuitive interaction, and reliable performance, it significantly enhances work efficiency. It is an excellent solution for scanning objects of almost any kind, making it ideal for artistic design, reverse engineering, 3D measurement, 3D visualization, 3D printing, research, education and more.
Key Features: Efficient scanning with 34 blue laser lines, Marker-free scanning with laser modes, Smart combination of large-area infrared speckle and partial fine scanning, Advanced hybrid alignment, Invisible light scanning, Easy scanning for black and reflective objects without spray, Outdoor scanning.
Industrial & Automotive Parts / Product Design
Marker Alignment with 34-line blue laser & 22-line infrared laser
High Data Quality: Accuracy reaching 0.04 mm, resolution up to 0.05 mm
Strong Material Adaptability: Capture black and reflective surfaces without scanning spray
Fast Scanning: Frame rates up to 70 FPS while a maximum single-frame scanning area of 490 mm × 490 mm
Efficient Operation: Marker distance of 10-12 cm, reducing marker usage
Real-time Scanning: New real-time mesh display algorithm for easy monitoring of scan results
3D Data Compatibility: Support export of formats like .asc and .stl, compatible with mainstream CAD and reverse engineering software
Recommended Object Size: 0.05–5 m
Applications: CAD design, reverse engineering, automotive customization, 3D printing, virtual simulation, and more
Art Sculptures / Movable Cultural Relics
Hybrid Alignment with 34 blue laser lines & 22 infrared laser lines
Marker-free Scanning: Direct scanning of objects with rich textures or geometric features
Fine Details: Resolution up to 0.1 mm
Strong Material Adaptability: Easily handle dark, black, and reflective surfaces
Stable Lighting Adaptability: Ensure smooth data acquisition in both low light and direct sunlight
Recommended Scanning Size: 0.1–4 m
Applications: Suitable for 3D art design, cultural and creative product design, and digital archiving/restoration/monitoring/preservation of cultural relics
High-Definition Full-Color Mapping Solution
Comprehensive Workflow: Combine MT color 3D scanning with free texture mapping or optional advanced 3D texturing software to capture precise and vivid 3D color data
Ideal Objects: Suitable for items with intricate textures and vibrant colors
Applications: Perfect for 3D visualization, full-color 3D printing, cultural heritage data archiving, and more
* Enhanced 3D Data Display with Color Scanning and Texture Mapping
Medium to Large Objects / Sculptures / Full-Body Scans
Large-area Infrared Speckle + Partial Fine Scanning with 3 Light Sources
Powerful Alignment Capability: Large-area infrared speckle scanning covers up to 1,100 mm*1,000 mm per frame, efficiently accommodating medium to large objects
Partial Fine Scanning: Supports seamless mode switching and data integration, allowing smooth scanning of larger objects while preserving intricate details (resolution up to 0.1 mm).
Large Depth of Filed: Scanning distance from 150 to 1,500 mm enables versatile, multi-angle scanning for comprehensive data capture
Maximum Scanning Size: up to 5m
Full-Body / Body Parts Scanning
Infrared Speckle + Geometry / Hybrid Alignment
Human Body Mode: Supports no-light scanning, hair capture, and automatic correction of slight movements
Eye-Safety: Class I laser compliant with IEC 60825 standards, ensuring safe operation
Exceptional Detail: Resolution up to 0.1 mm for sharp and clear details
Easy Operation: Maximum scanning area of 1,100 mm × 1,000 mm for smooth scanning
Strong Adaptability: No need for exposure adjustments, making it easy to scan dark clothing
Applications: Ideal for medical rehabilitation, artistic design, personalized customization, and more.
Research / Education
Versatile Coverage: Accommodates a wide range of object sizes, from 0.05 m to 5 m
Environmental Compatibility: Adapts seamlessly to both indoor and outdoor scanning conditions
Multidisciplinary Applications: Supports diverse fields, including industrial design, mechanical design, art, cultural heritage and archaeology, medical rehabilitation, and forensic science.
Education-Friendly & Professional Support: Scanning software with no node limitations, plus exclusive educational discounts, offering a cost-effective 3D solution tailored for research and teaching

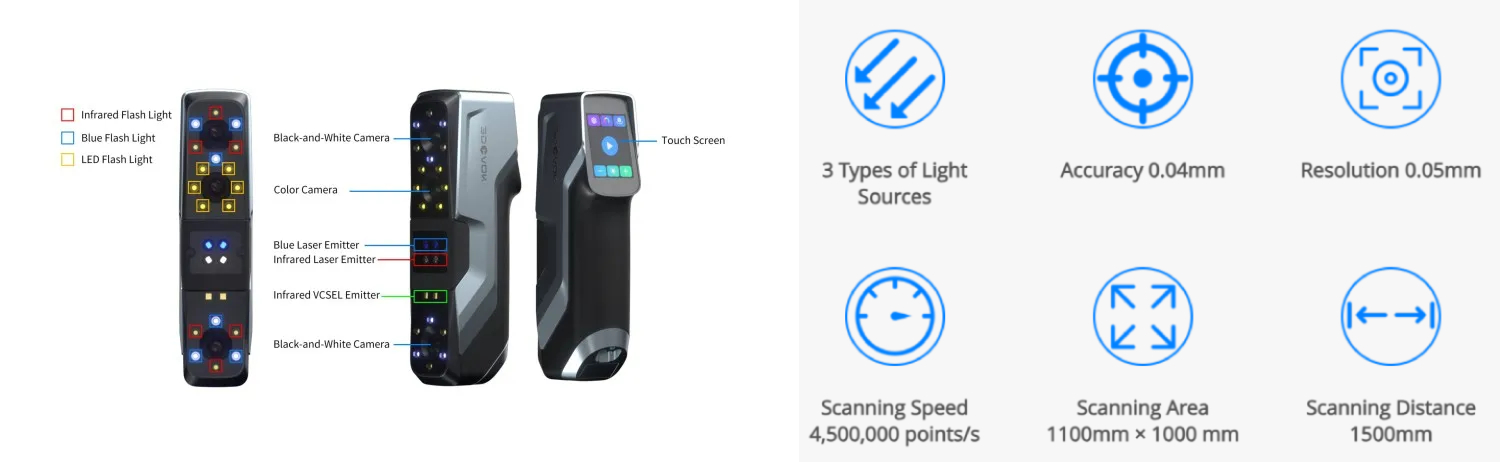

Technical Specifications
|
Product Brands & Models
|
3DeVOK MT
|
|
Light Sources
|
34 Blue Laser Lines
|
22 Infrared Laser Lines [invisible]
|
Infrared VCSEL Structured Light [invisible]
|
|
Class of Lasers
|
Class Ⅱ (Eye-safe)
|
Class Ⅰ (Eye-safe)
|
|
Scan Mode
|
Blue Line Laser
(Supports markerless scanning)
|
Infrared Line Laser
(Supports markerless and invisible-light scanning)
|
Infrared Linear-array Structured Light-Speckle
(Supports markerless, invisible light scanning, partial fine scanning, and rapid scanning at ultra-long-distance range and ultra-large FoV)
|
|
Basic Accuracy✱
|
Up to 0.04 mm
|
|
Volumetric Accuracy✱
|
Up to 0.04 mm + 0.06 mm/m
|
|
Point Distance
|
0.05 – 5 mm
|
0.1 – 5 mm
|
Regular Scan: 0.2-5 mm
Fine Scan: 0.1-5 mm
|
|
Alignment Mode
|
Hybrid Alignment (Marker&Texture&Geometric features), Marker Alignment, Texture Feature Alignment and Geometric Feature Alignment
|
Hybrid Alignment (Marker&Texture&Geometric features), Texture Feature Alignment and Geometric Feature Alignment
|
|
Ability to Capture Texture
|
Yes
|
|
Scanning Distance
|
150 – 1000mm
|
150 – 1500mm
|
|
Field of View
|
140 mm × 140 mm – 490 mm × 490 mm
|
50 mm × 75 mm – 1100mm × 1000mm
|
|
Scanning Speed
|
Up to 3,300,000 Points/s
|
Up to 2,450,000 Points/s
|
Up to 4,500,000 Points/s
|
|
Output Formats
|
*.obj, *.stl, *ply, *.asc, *.mk2,*.txt,*.epj,*.apj,*.spj,*.map, *sk
|
|
The Ability for 3D Printing
|
Supports .stl, .obj and other formats
|
|
Working Temperature Range
|
0 – 40 ℃
|
|
Working Humidity Range
|
10% – 90% RH (Non-condensing)
|
|
Interface
|
USB 3.0
|
|
Scanner Dimensions & Weight
|
Dimensions: 215 mm × 73 mm × 53 mm; Weight: 640 g
|
|
Power Source
|
DC: 12 V, 5.0 A
|
|
Certifications
|
CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC
|
|
Recommended Configurations for PC
|
OS: Win10/Win11, 64-bit; CPU: i7-13650HX and above; RAM: 32GB and above;
Graphic Card: NVIDIA discrete graphics card, NVIDIA RTX3060 and above; Graphics memory: 6GB and above
|
|
✱ It is the results of the laboratory’s theoretical accuracy test, which belong to uncertainty errors.
|
