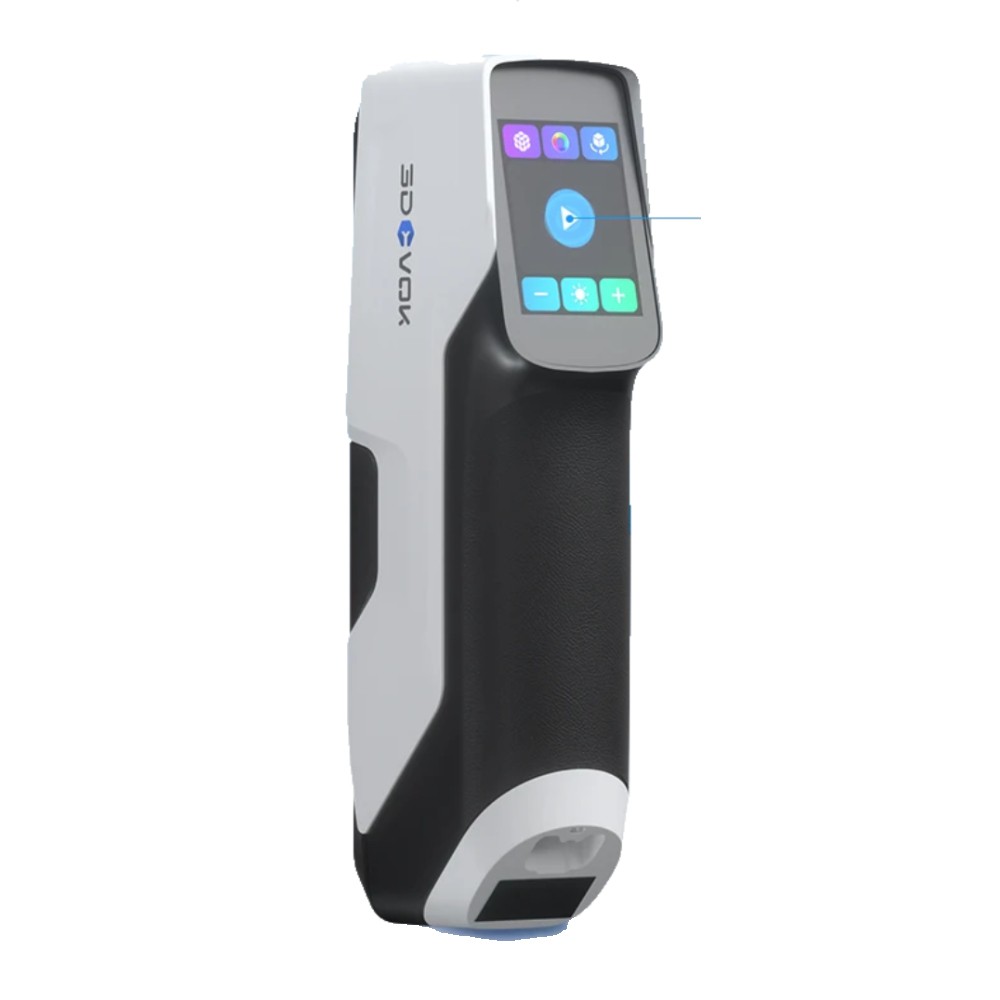

3DeVOK MQ Professional 3D Scanner

Category： Handheld 3D Scanners
INQUIRY EMAIL

Product Description:

3DeVOK MQ Empowers Professionals, Making Everyone A 3D Creator

One scanner, endless possibilities—perfect for 3D printing, cultural heritage preservation, reverse engineering, creative design, art, medical rehabilitation, and research & education. The ultimate 3D productivity partner for 3D printing farms, design studios, and small to medium-sized businesses.

6 Key Features for Exceptional
3D Scanning Every Time

Dual-Mode Laser, Boundless Scanning

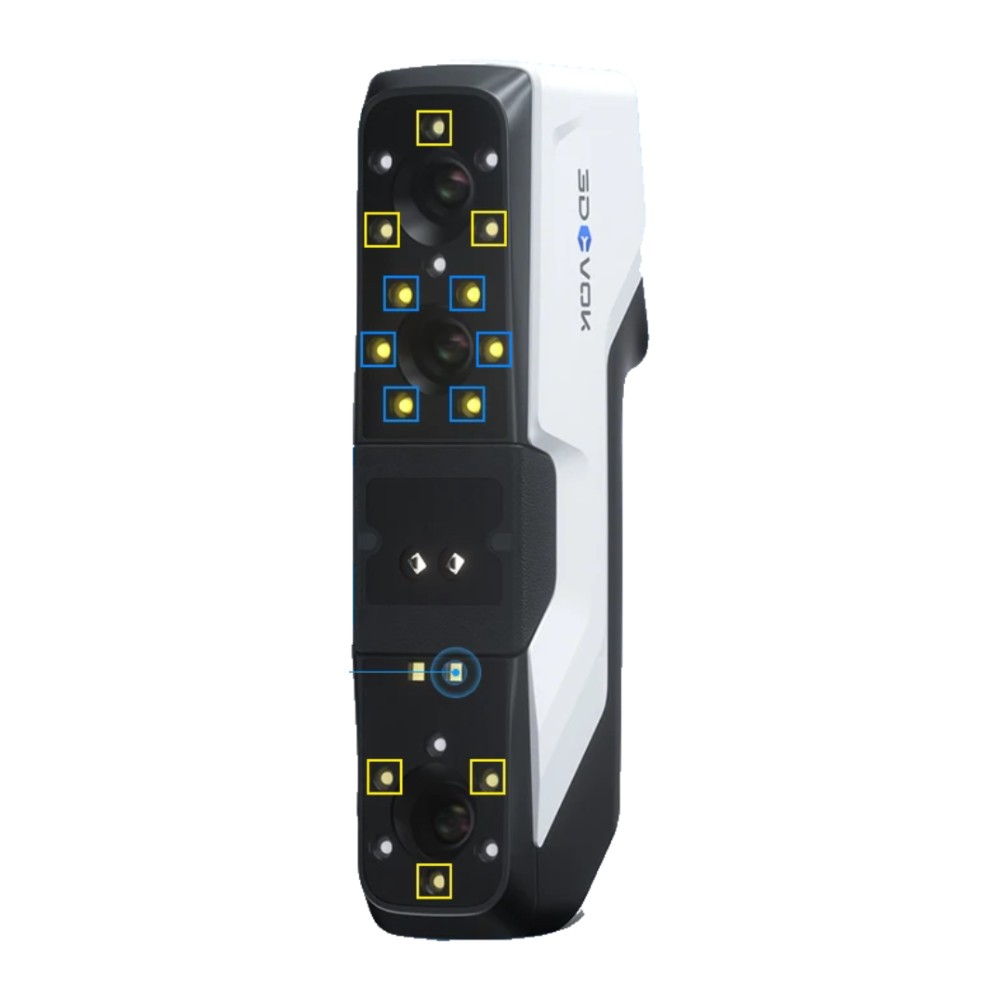

22-Line Infrared Laser

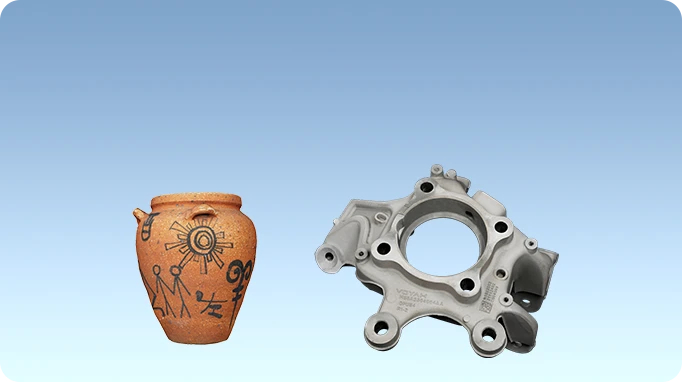

The MQ 3D scanner features 22-line infrared laser technology, enabling seamless scanning of objects as small as 5cm across various materials. With up to 0.08mm accuracy, it meets the quasi-industrial 3D data acquisition demands.

Infrared Speckle with 2 Distinct FoV

Designed specifically for scanning portraits, body parts, and medium to large objects (30cm and above), the scanner supports Fine and Fast Scanning at the ultra-wide scanning area up to 1,100mm × 1,000mm, enabling efficient scanning and easy operation.

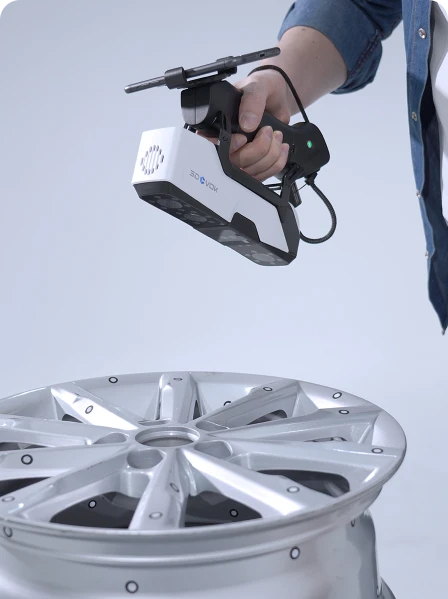

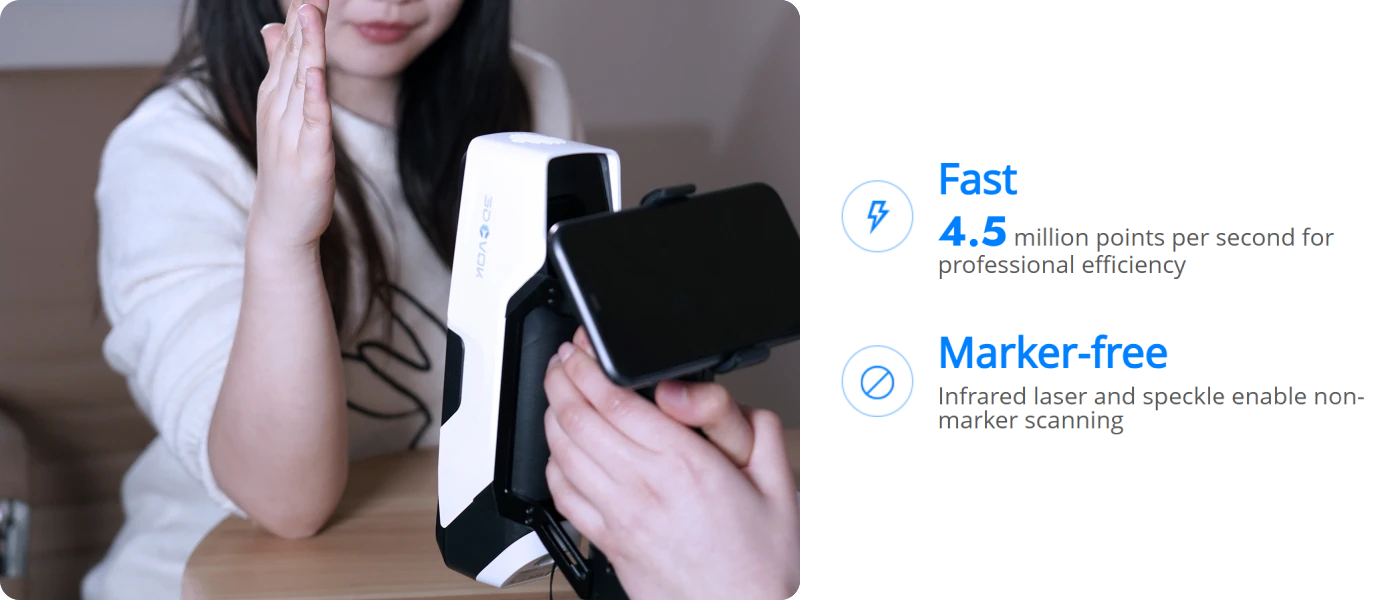

Marker-free Data Capture

Embrace the Power of Versatility

3D Printing
Bringing Creative Ideas to Life

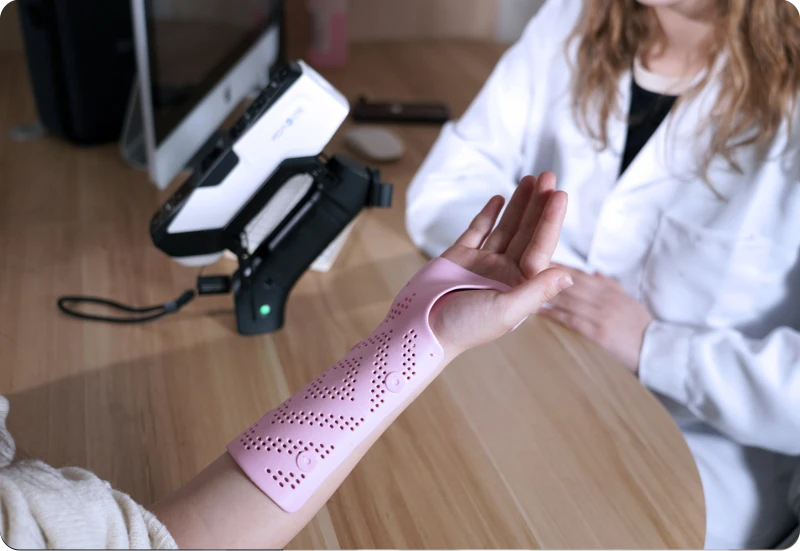

Medical Rehabilitation
Technology Enhancing Lives

Education & Research

Making New Technologies Accessible

Tech for All
Unlocking the Digital Future of Everything

Technical Specifications

Type	3DeVOK MQ

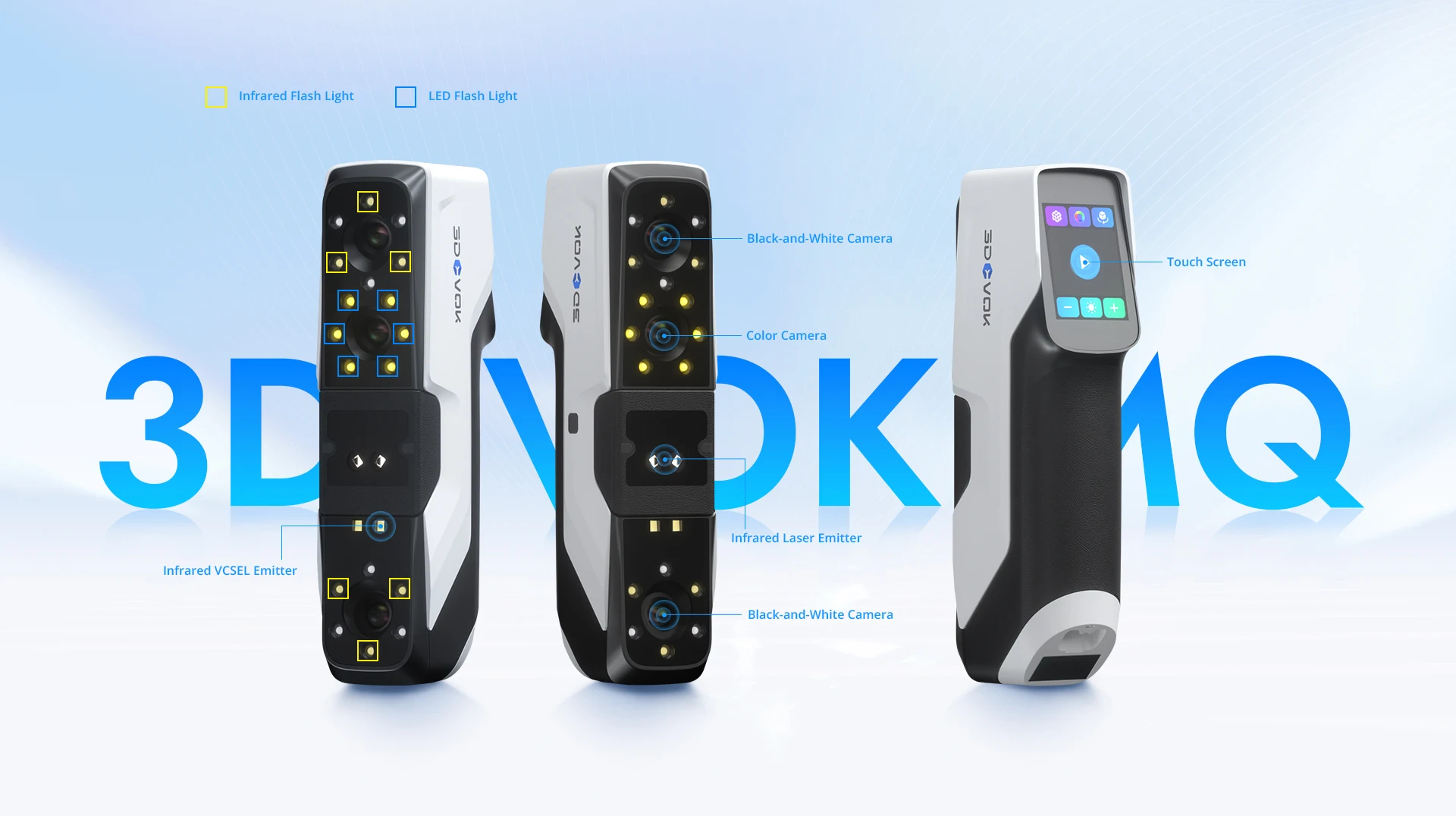

Light Sources	22 Infrared Laser Lines [Invisible]	Infrared VCSEL Structured Light [Invisible]
Class of Lasers	Class Ⅰ (Eye-safe)
Scan Modes	Infrared Laser Lines Supports markerless and invisible-light scanning	Infrared Linear-array Structured Light (Speckle) Supports markerless scanning, invisible-light scanning, partial fine scanning, and rapid scanning at ultra-long-distance range and ultra-large FoV

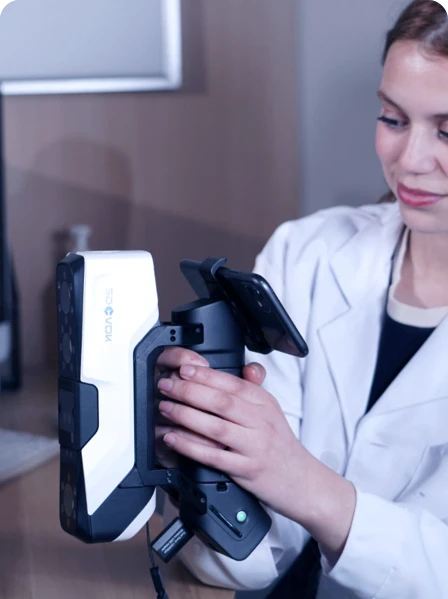

Wireless Scanning	Support (with an optional handle)
Accuracy*	Up to 0.08 mm
Point Distance	0.1-5 mm
Alignment Mode	Support hybrid, markers, texture, and geometric features alignment	Support hybrid, texture, and geometric features alignment
Ability to Capture Texture	Yes
Scanning Distance	150-1,000 mm	150-1,500 mm
Field of View	140 mm × 140 mm - 490 mm × 490 mm	50 mm × 75 mm - 1,100mm × 1,000mm
Scanning Frame	Up to 70 FPS (Marker alignment)	Up to 30 FPS
Scanning Speed	Up to 2,450,000 Points/s	Up to 4,500,000 Points/s
Output Formats	.obj, .stl, .ply, .asc, .mk2, .txt, .epj, .apj, .spj, .map, *.sk
The Ability for 3D Printing	Supports .stl, .obj and other formats
Wireless Scanning	Support (with an optional handle)
Working Temperature Range	0 - 40 ℃
Working Humidity Range	10% - 90% RH (Non-condensing)
Interface	USB 3.0
Scanner Dimensions & Weight	Dimensions: 215 mm × 73 mm × 53 mm; Weight: 550 g
Power Source	DC: 12 V, 5.0 A
Certifications	CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC
Recommended Configurations for PC	OS: Win10/Win11, 64-bit; CPU: i7-13650HX and above; RAM: 32GB and above; Graphic Card: NVIDIA discrete graphics card, NVIDIA RTX3060 and above; Graphics memory: 6GB and above
* The laboratory theoretical accuracy test results are subject to uncertainty errors.
