CMM flexible fixture-108PCS

CMM Fixtures

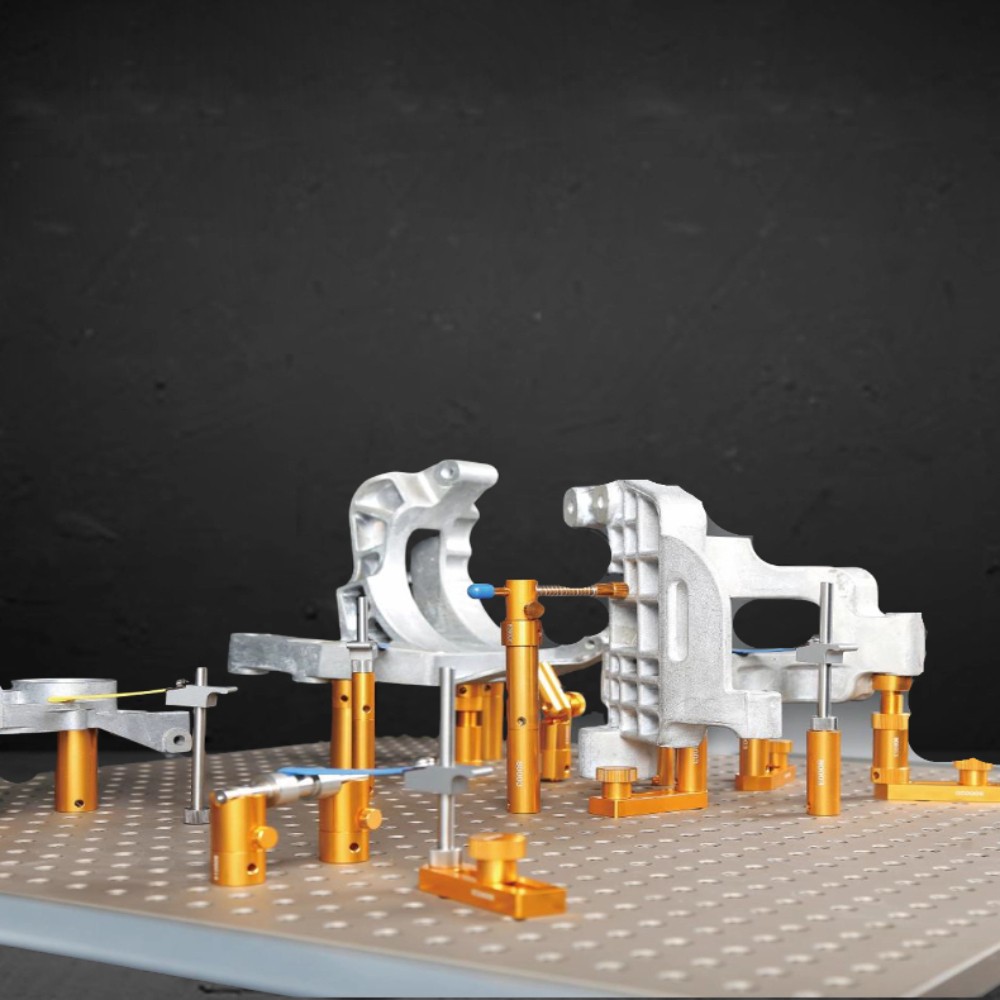

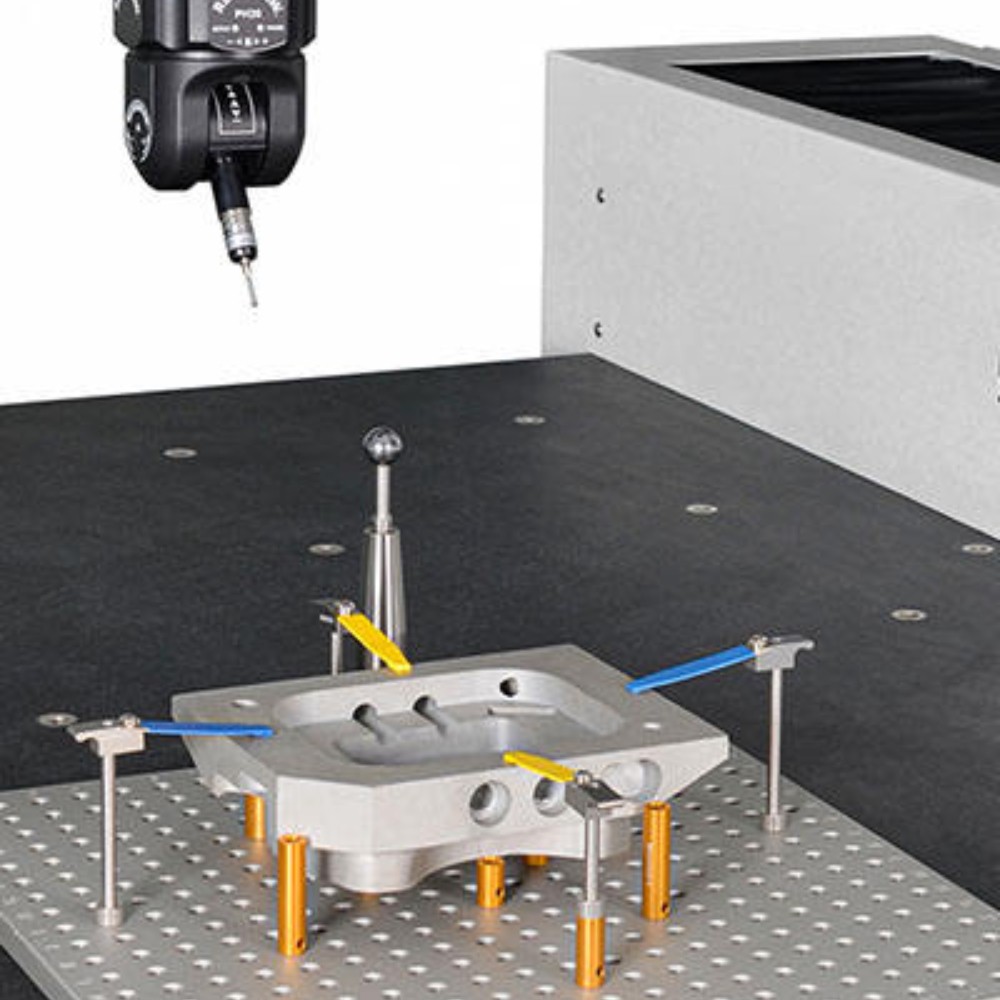

The cmm application is always coming with varies of different parts with different shapes or materials. Some are even without any effective reference plane to be correctly located on the work stage. Developing specific fixtures for each component should be with low efficiency and high cost. So we have developed the CMM fixtures kit and base plates, to help users saving time and cost but also able to achieve fast and reliable fixturing during the CMM measuring process. The fixtures kit helps to improve the throughput, reproducibility and accuracy of the inspection process with quick and repeatable fixturing set-ups.

Application

CMM fixture kits

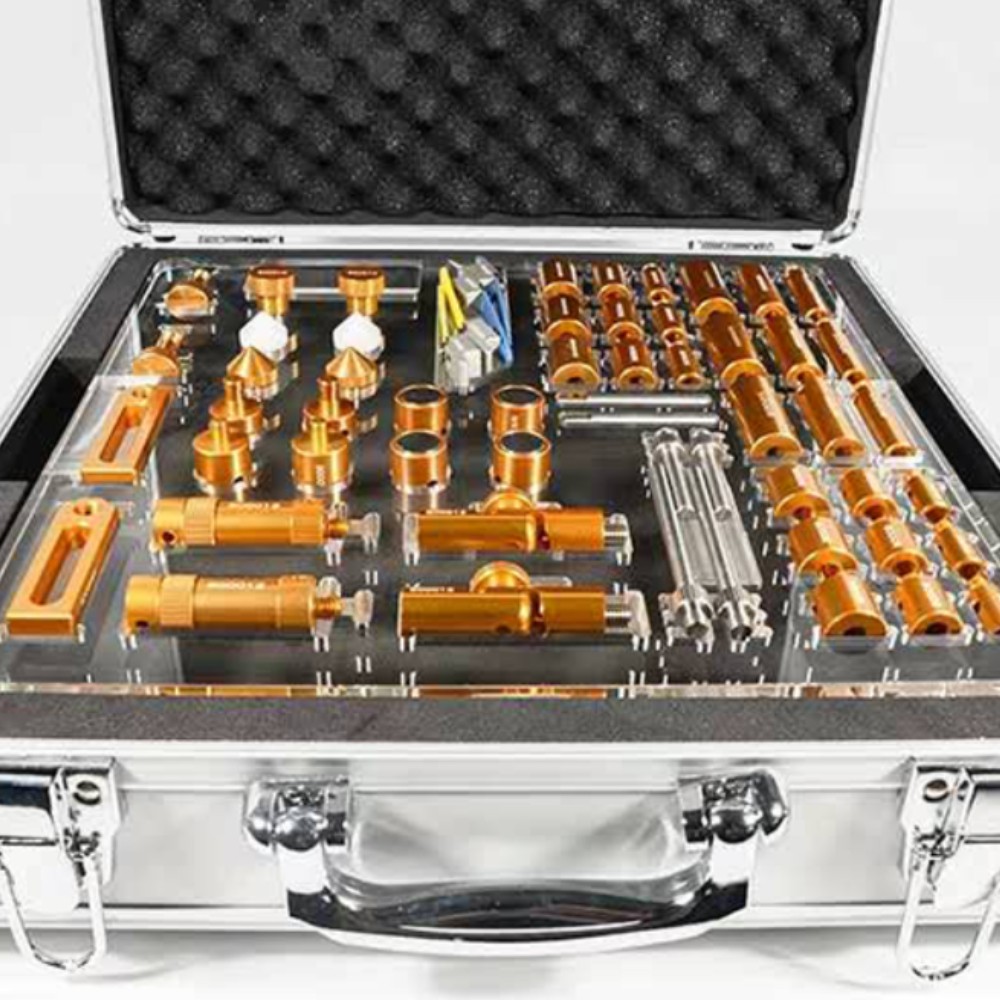

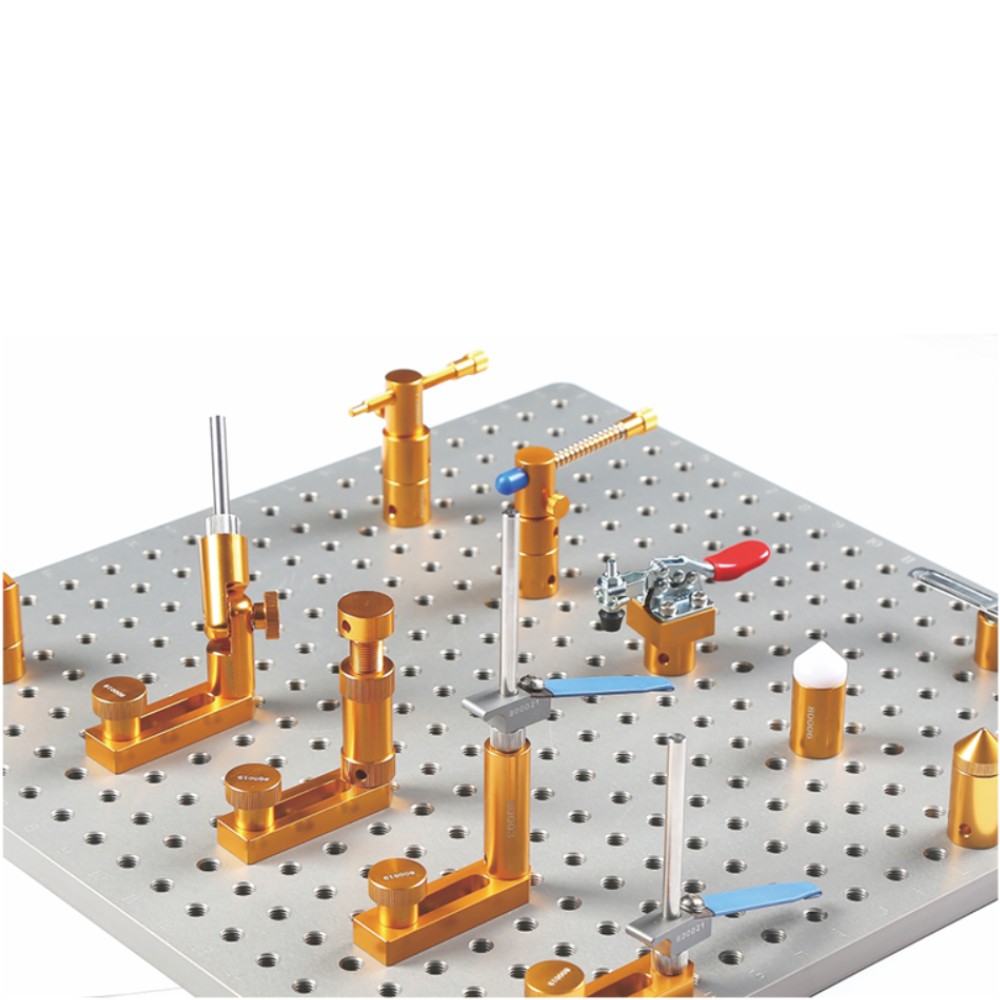

The CMM fixtures are designed as a complete components kit. We have studied most of the CMM measuring application from our experience of CMM users, and have taken reference to different types of parts, to develop the fixtures kit components. The kit is including supporting, pressing, and holding components, which allow the user to manage the fixturing easily and no special tools as required. Regardless of shapes or materials, user can easily find the fixturing solution during measuring process.

400*300mm, M8 /M6Thread holes
400*400mm, M8 /M6Thread holes
500*500mm, M8 /M6Thread holes
600*600mm, M8 /M6Thread holes
800*800mm, M8 /M6Thread holes
Other customized sizes
