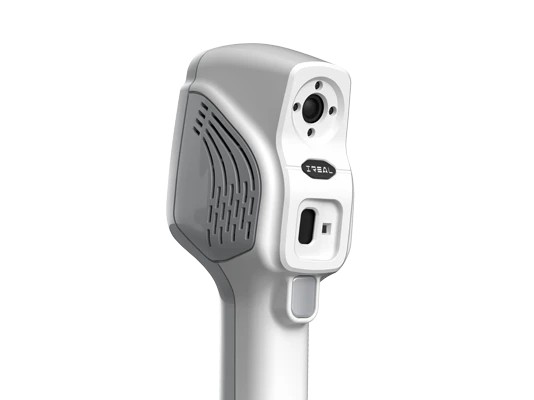

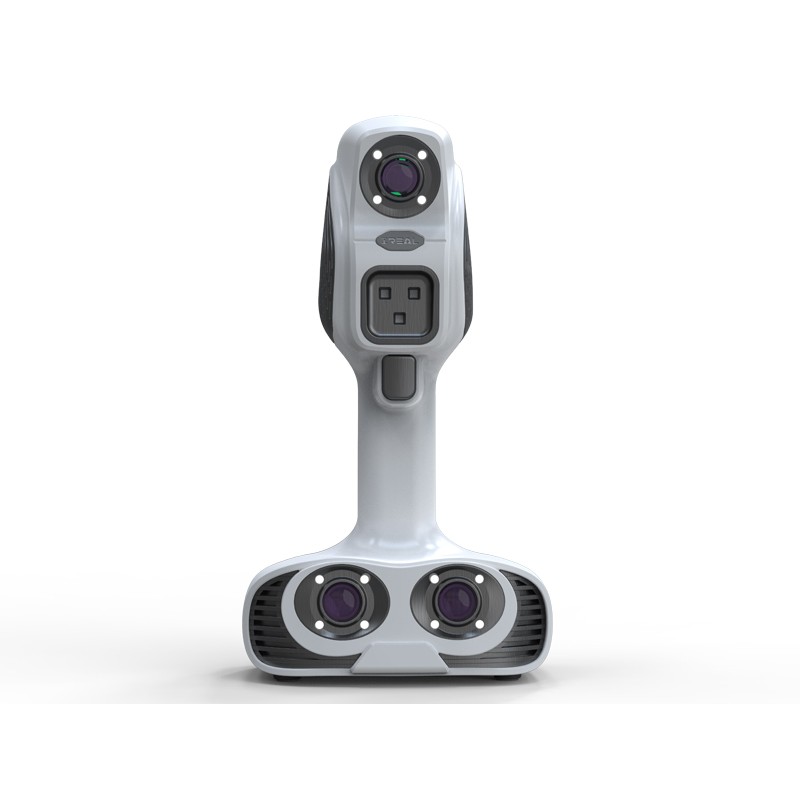

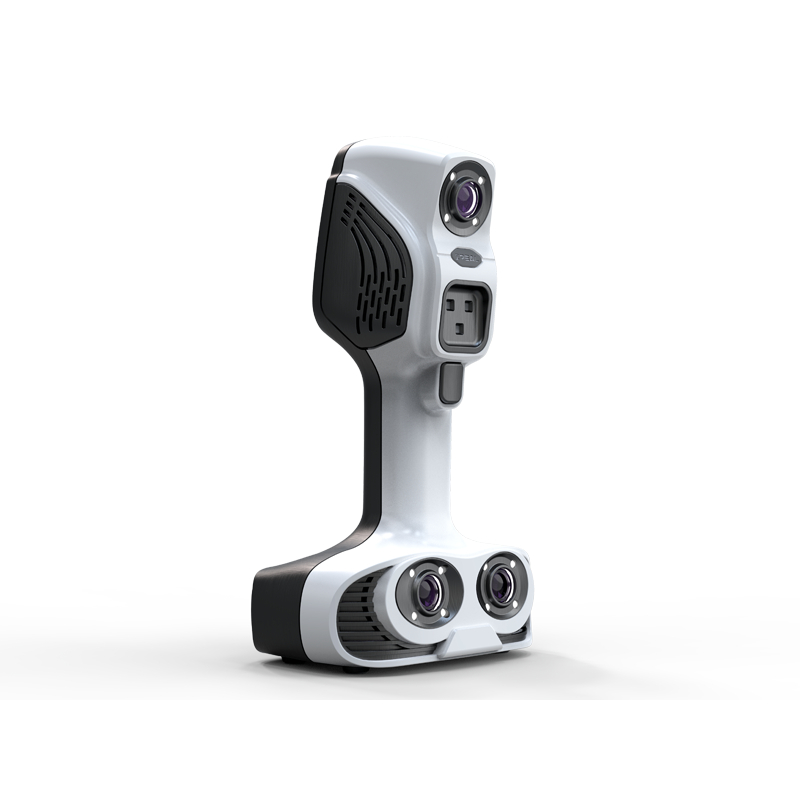

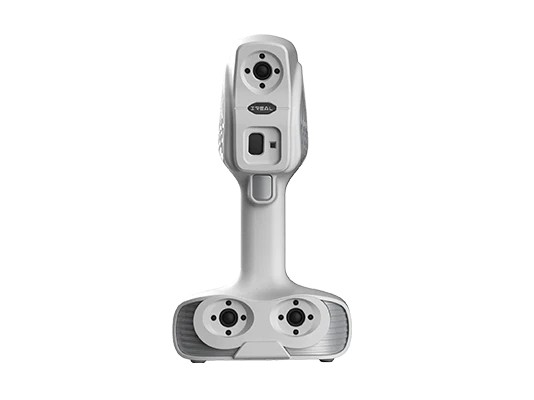

iReal 2S Color 3D Scanner

Category： Handheld 3D Scanners
INQUIRY EMAIL

Product Description:

iReal 2S Color 3D Scanner

Our latest product, iReal 2E 3D body scanner maximizes the performance in depth of field, scanning area, algorithm, texture reproduction and detail capturing, specially designed for medium to large-sized objects and human body 3D scanning.

iReal 2S initiatively adopts double scattering speckle technology: blue LED light and infrared light. This color 3D scanner maximizes performances in texture reproduction, accuracy, detail capturing, etc.

iReal 2S features in super HD texture capturing capacity, wide scan area, fast scanning speed, intelligent alignment, fully automatic post-processing algorithm. With its HD color reproduction, iReal 2S extremely meets the requirements of texture acquisition. Also as a 3D body scanner, it ensures best-in-class performance on body scan, especially for eyes and hairs.

iReal 2S color 3D scanner is very user-friendly for making an easy and fast scanning. It streamlines workflows and creates easier color measurements.

Experience Invisible light 3D Scanning

High Data Quality: Accuracy reaching 0.04 mm, resolution up to 0.05 mmWhen objects are ful of continuous, non-repetitive and richly vared geometric/texturalfeatures, you can scan them directy with geometn and feature alignment, The target free 3D scanning and one-button start improve on-site working efficiency. When objects have inadequat geometric or textural features, we can use hybrid alignment mode (target and feature alignments) .lust stick several markers on featureles parts and you can align scans smoothly.iReal 2S adopts infrared light technology, making it totally safe and comfortable for body scan and face scan, especially capturing 3D data of human eyes without uncomfortableness.

Hair scanning is always a difficulty for normal color 3D scanners, but iReal 2S has a strong ability in hair acquisition.
Applications: CAD design, reverse engineering, automotive customization, 3D printing, virtual simulation, and more

Super HD Texture Capturing

Deeply fulfill the visual experience of texture capturing in various fields.

Scanning without Markers

When object has continuous and irregular textures or geometric features, it can be scanned without any markers base on texture alignment and geometric alignment.

Mixed Alignment Modes

Scanning object without continuous or irregular textures or geometric features, iReal 2S combines texture/geometric/markers alignments with few markers to finish it.

Technical Specifications

Type	iReal 2S
Light source	Blue light	Infrared light
Visibility	Visible	Invisible
Safety	LED light（eye-safe）	CLASS І (eye-safe)
Color scanning	Support
Color reproduction	24 bit
Measurement rate	1,500,000 measurements/s
Point distance	0.200 ~ 3 mm	0.500 ~ 3 mm
Point accuracy (single frame)	Up to 0.100 mm	Up to 0.150 mm
Alignment accuracy (for markers)	Up to 0.200 mm/m	Up to 0.250 mm/m
Alignment mode without markers	Texture/feature/mixed alignments
Alignment mode with markers	Markers/mixed alignments
Optimal scanning distance	350 mm ~ 650 mm
Effective working range	250 mm ~ 1000 mm

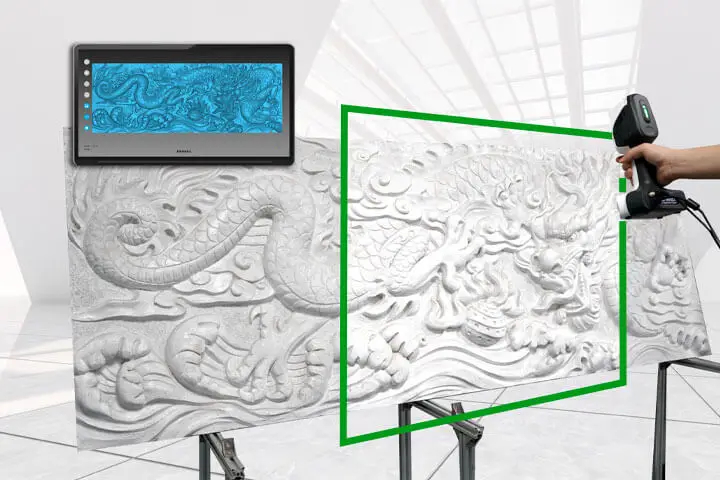

Scanning area	520 mm x 510 mm
Output formats	OBJ, STL, PLY, ASC, SK
3D printing	Support
Work temperature	5 ~ 40℃
Interface mode	USB 3.0
Weight	910 g
