TrackScan Sharp-S Optical 3D Scanning System

TrackScan Sharp-S Optical 3D Scanning System

Category： Tracking 3D System
INQUIRY EMAIL

Product Description:

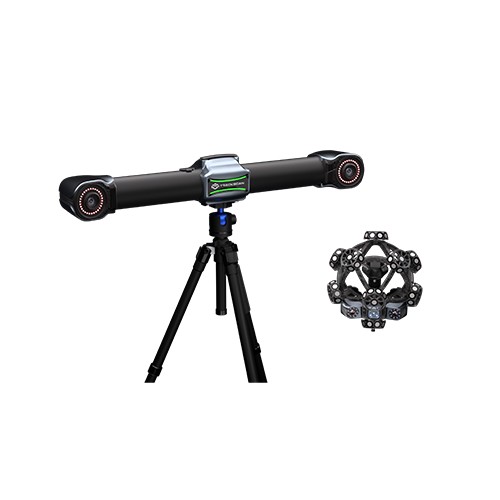

TrackScan Sharp-S Optical 3D Scanning System

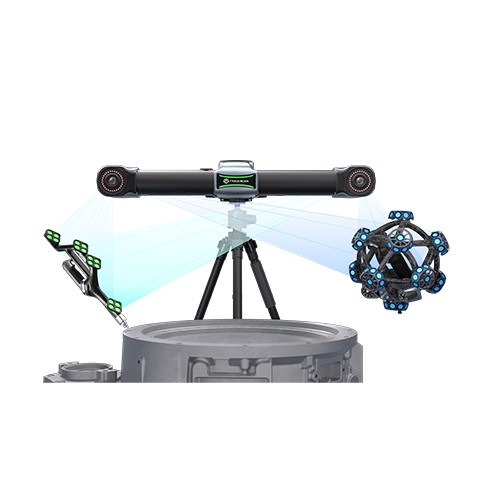

TrackScan Sharp-S optical 3D scanning system, engineered with 25-megapixel industrial cameras and robust onboard processors for edge computing, is specially designed for measuring large-scale parts over a long distance with high speed. It brings optical measurements to new heights by offering a tracking distance of up to 8.5 meters, a high-precision measurement range of 135 m3, enabling powerful measurement experiences.

This measurement system is highlighted by its robust performance including 99 laser lines, and a measurement rate of up to 4.86 million measurements/s, offering highly precise and reliable measurement results.

Moreover, as the third generation of Scantech’s technology featured by intelligent and wireless 3D scanning, TrackScan Sharp-S is fully battery-powered and supports wireless data transfer, which frees the user from cable constraints and allows for smooth scanning in any environment.

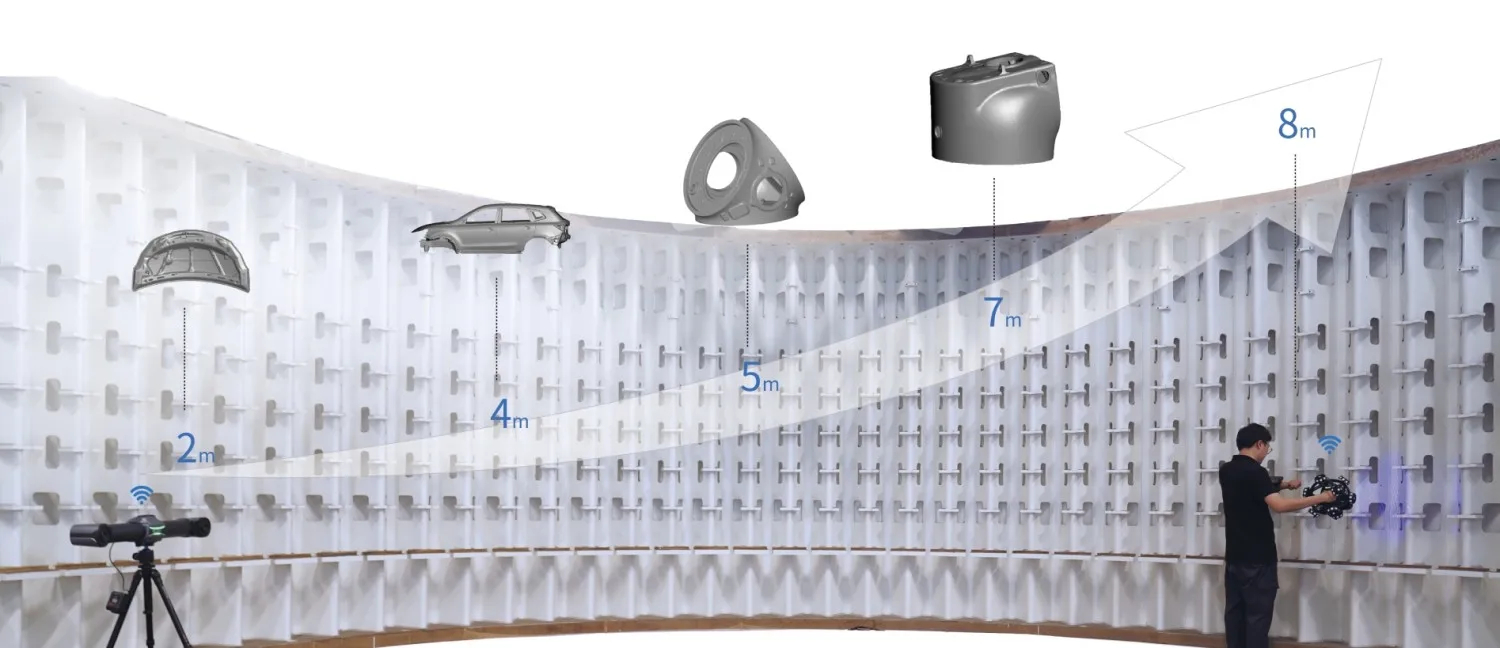

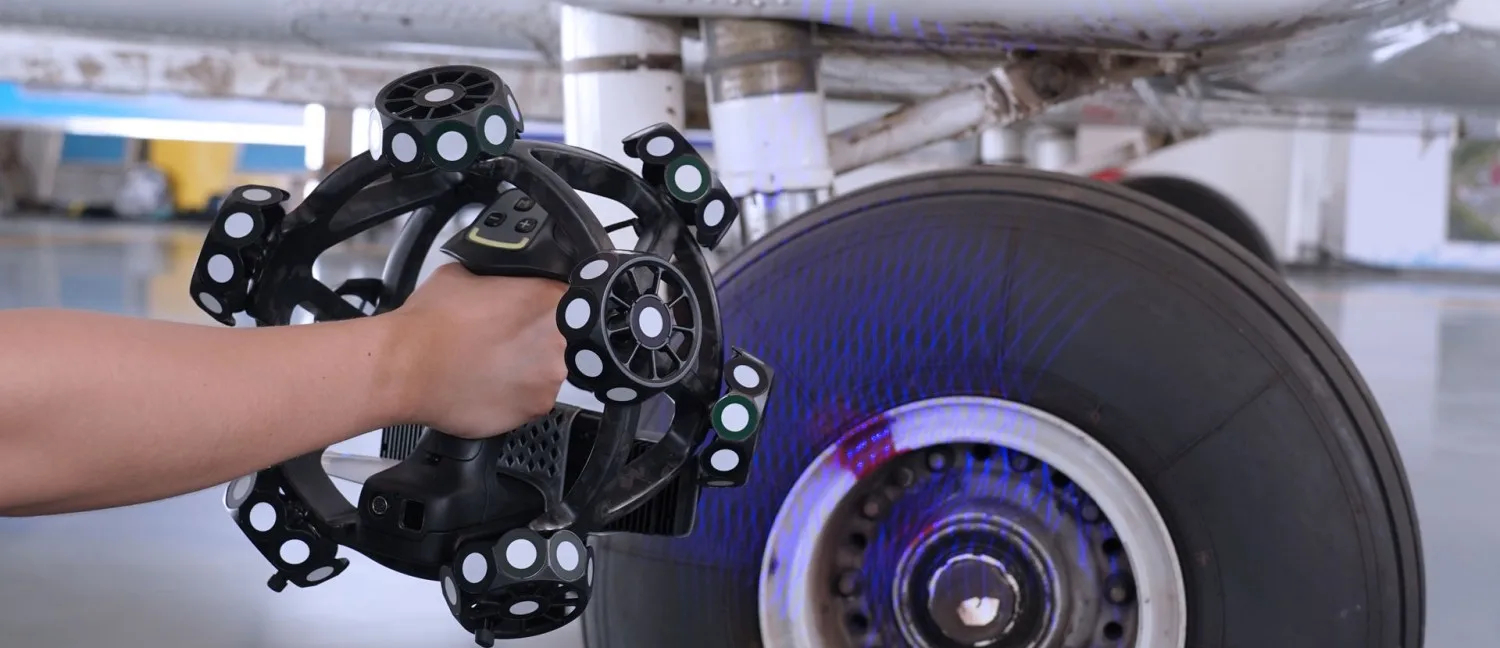

Long-distance and Large-volume Tracking

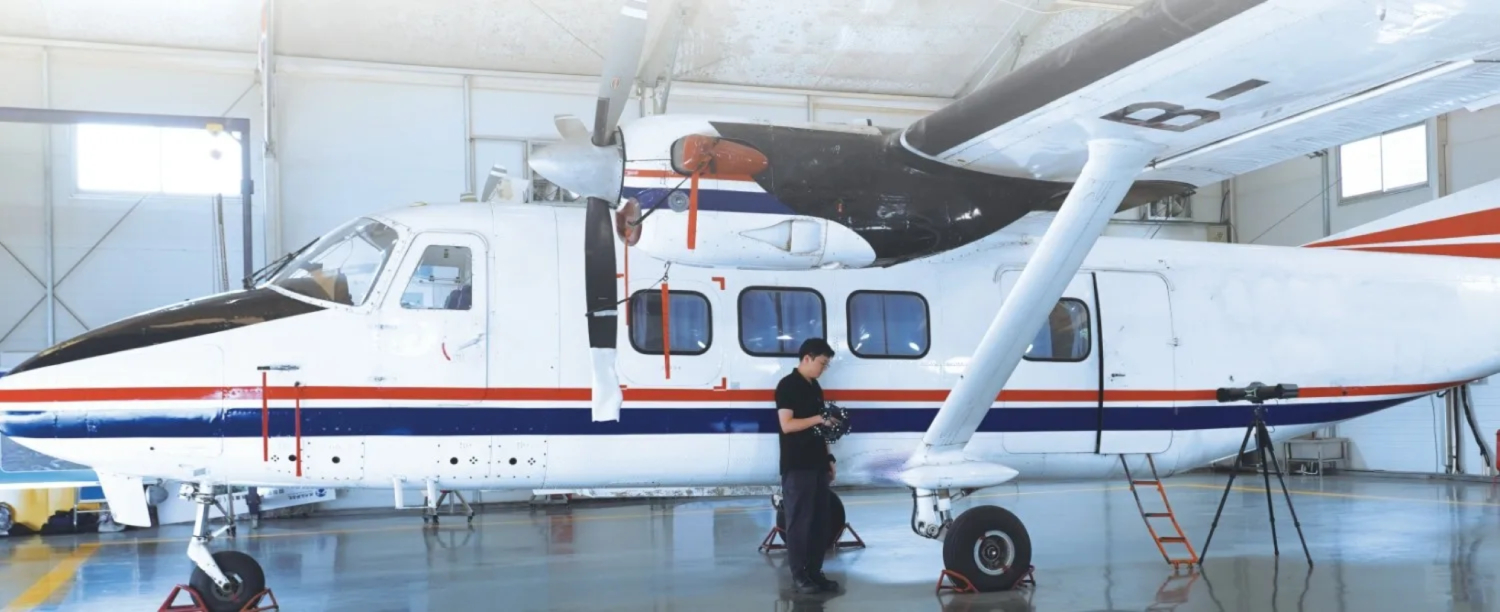

High Data Quality: Accuracy reaching 0.04 mm, resolution up to 0.05 mmWhen objects are ful of continuous, non-repetitive and richly vared geometric/texturalfeatures, you can scan them directy with geometn and feature alignment, The target free 3D scanning and one-button start improve on-site working efficiency. When objects have inadequat geometric or textural features, we can use hybrid alignment mode (target and feature alignments) .lust stick several markers on featureles parts and you can align scans smoothly.iReal 2S adopts infrared light technology, making it totally safe and comfortable for body scan and face scan, especially capturing 3D data of human eyes without uncomfortableness.TrackScan Sharp-S adopts a dynamic adaptive LED algorithm and long-distance depth of field, which supports a max tracking distance as long as 8.5 meters. It allows users to effortlessly tackle a wide variety of challenges including measuring large-scale parts in aerospace, energy, and heavy industry. Its 135-m3 industrial high-precision measurement range and 233-m3 scanning range are achieved thanks to its large tracking volume, robust edge calibration algorithm, and stable structure. It saves the hassle of moving trackers frequently and enables users to measure large components efficiently in just one position.

Wireless and Easy 3D Scanning

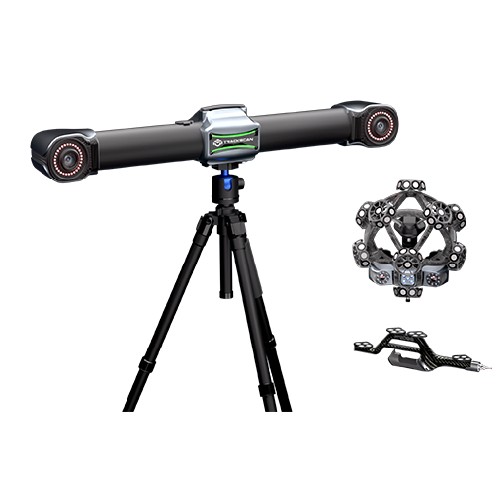

Wireless System

Both the system's 3D scanner and optical tracker have powerful onboard processors for edge computing, whichprocess images and data in real-time and output 3D coordinates, Combined with batteries, and external wNiCs, itlets users measure objects wirelessly.

Plug-and-play
The system connects automatically when switched on, without requiring any complex settings, and startsscanning instantly.

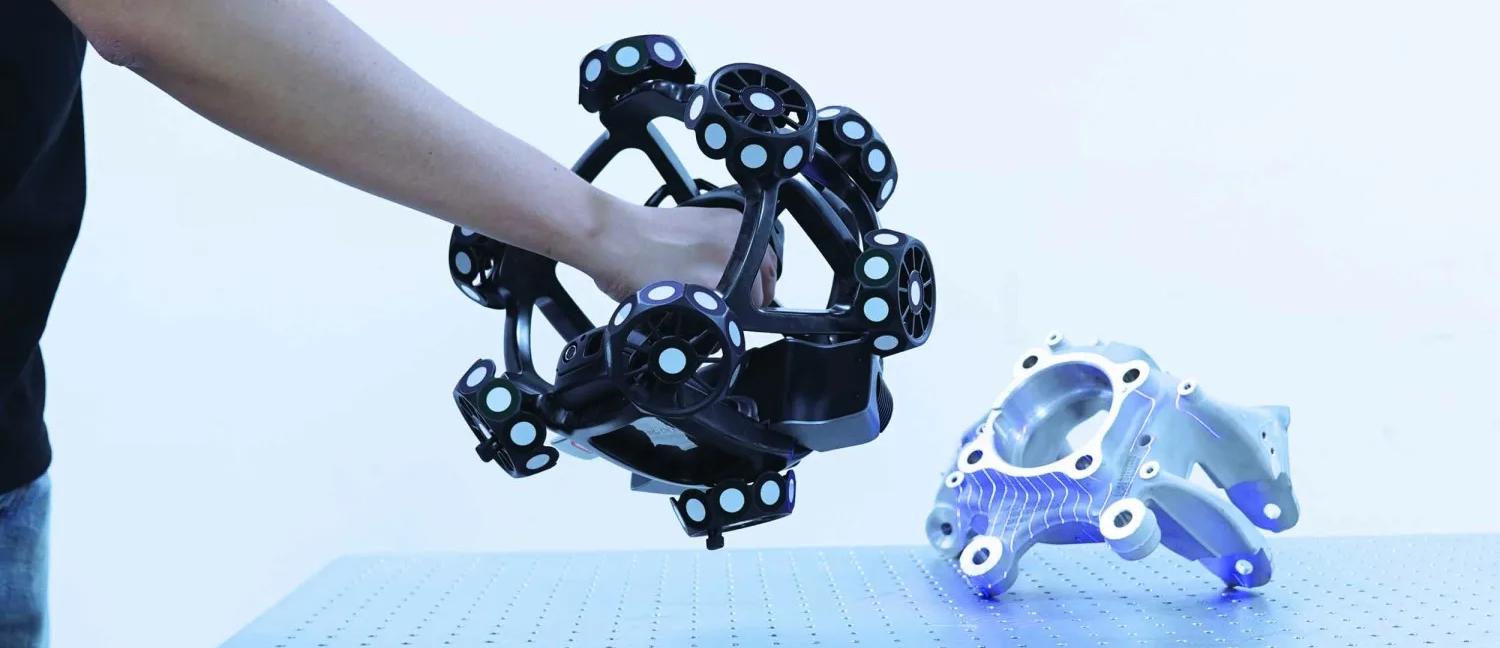

User-friendlyOperation
Its user-friendly buttons are easy to operate, offering flexible and free 3D scanning

Excellent and Stable Performance

The TrackScan Sharp-S measurement system features metrology-grade hardware and an innovative in-housed developed algorithm. In this way, the system achieves a maximum volumetric accuracy of 0.048 mm (10.4 m3), capable of meeting stringent industrial requirements for measurements.

The 3D scanner features an innovative stable structure with CFFIM technology to ensure lightweight design and high strength. Built tough, it maintains a stable performance and it is unaffected by thermal variations to ensure high-precision measurements. Its integrated structure allows users to grip it from any direction, enabling them to handle and position it freely. Its harmoniously integrated components create a unified and balanced look.

Fast 3D Scanning

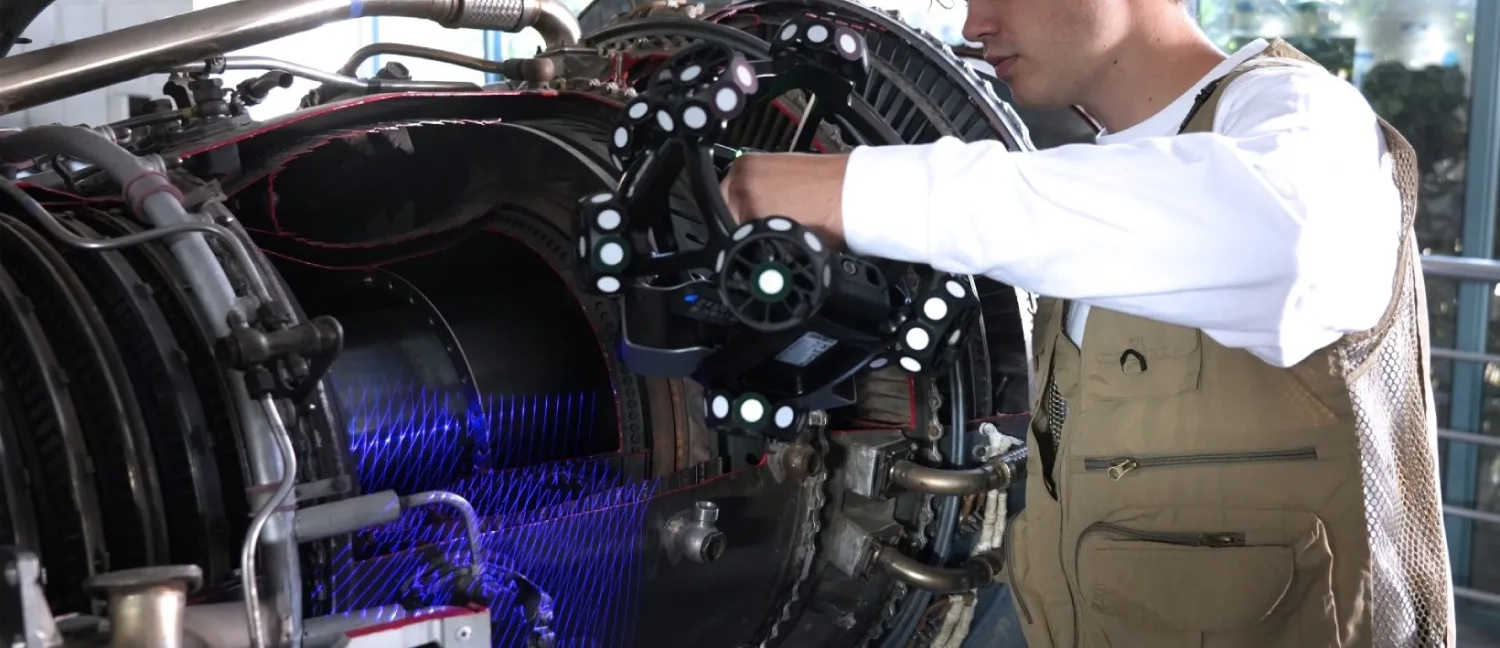

Enhanced by advanced hardware and robust edge computing, TrackScan Sharp-S scans up to an impressive 4.86 million measurements/s with 81 blue laser lines. Whether it is complex aerospace parts or large-scale machinery, TrackScan Sharp-S is ideal for capturing 3D data and identifying deviations of parts rapidly, which facilitates more efficient and intelligent measurements for manufacturers.

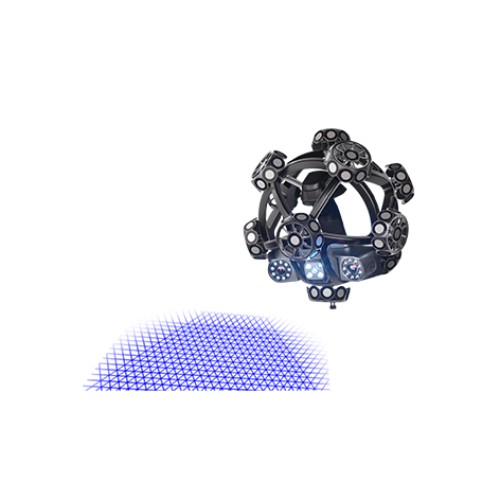

Precise Detail Capture

The system's fine scanning mode powered by 17 parallel laser lines enables it to scan over a large area whilegenerating point clouds fast, This feature provides exceptional detai-capturing efficiency, allowing users tocapture intricate details such as slots and corners with high precision and speed. As a result, parts aremeticulously represented in 3D, ensuring accurate and comprehensive digital models.

Technical Specifications

Type		TrackScan Sharp-S
Scan mode	Ultra-fast scanning	81 blue laser lines (Triple Cross Technology)
	Hyperfine scanning	17 blue parallel laser lines
	Deep-hole scanning	Extra 1 blue laser line
Accuracy(1)		up to 0.025 mm
Measurement rate up to		4,860,000 measurements/s
Scanning area up to		800 mm × 700 mm
Laser class		ClassⅡ (eye-safe)
Resolution up to		0.02 mm
Volumetric accuracy(2)	10.4 m³ (3.5 m)	0.048 mm
	35 m³ (5.2 m)	0.069 mm
	95 m³ (7.2 m)	0.128 mm
	135 m³ (8.5 m)(3)	0.159 mm
Volumetric accuracy (with MSCAN photogrammetry system)		0.044 mm+0.012 mm/m
Stand-off distance		300 mm
Depth of field		400 mm, 800 mm (Large depth of field)
Output format		.stl, .pj3, .igs, .asc and etc., customized
Operating temperature range		-10–40 °C
Operating humidity range (non-condensing)		10 ~ 90% RH
Interface mode		USB 3.0, Network Interface
Certification		CE, Rohs, WEEE, FCC
Patents		CN109000582B, CN110992393B, CN111678459B, CN111694665B, CN112802002B, CN112867136B, CN112964196B, CN113188476B, CN113340234B, CN113432561B, CN113473034B, CN113514008B, CN113766083B, CN114001696B, CN114205483B, CN114554025B, CN114627249B, CN115289974B, CN115325959B, CN115493512B, CN115511688B, CN115661369B, CN115690333B, CN115695763B, CN116136396B, CN116206069B, CN116244730B, CN209263911U, CN210567185U, CN211121096U, CN214149174U, CN218103220U, CN218103238U, CN218411072U, CN218584004U, CN218734448U, CN219829788U, CN219834226U, CN307756797S, EP3392831B1, EP3907702B1, KR102096806B1, US10309770B2, US11060853B2, US11493326B2
Hole position accuracy		0.05 mm

Type		TrackScan-Sharp 49
Scan mode	Ultra-fast scanning	21 blue laser crosses
	Hyperfine scanning	7 blue parallel laser lines
	Deep-hole scanning	1 blue laser line
Accuracy(1)		Up to 0.025 mm (0.0009 in)
Measurement rate up to		2,600,000 measurements/s
Scanning area up to		500 mm × 600 mm (19.7 in × 23.6 in)
Laser class		ClassⅡ (eye-safe)
Resolution up to		0.020 mm (0.0008 in)
Volumetric accuracy(2)	10.4 m³ (Tracking distance 3.5 m)	0.049 mm (0.0019 in)
	28.6 m³ (Tracking distance 5.0 m)	0.067 mm (0.0026 in)
	49.0 m³ (Tracking distance 6.0 m)	0.089 mm (0.0035 in)
Tracking Distance per i-Tracker		6000 mm (236.2 in)
Volumetric accuracy (with MSCAN photogrammetry system)		0.044 mm + 0.012 mm/m (>6m) (0.0017 in + 0.00014 in/ft)
Hole position accuracy		0.050 mm (0.0020 in)
Camera pixels of i-Tracker		25 MP
Stand-off distance		300 mm (11.8 in)
Depth of field		400 mm (15.7 in)
Part size range (recommended)		0.1 m-12 m (3.9 in-472.4 in)
Operating temperature range		0 °C-45 °C (32℉-113℉)
Operating humidity range (non-condensing)		10-90 % RH
Interface mode		USB 3.0, Network Interface
Certification		CE, RoHS, WEEE
Patents		CN106500627B, CN106500628B, CN206132003U, CN204854633U, CN204944431U, CN204902788U, CN204963812U, CN204902785U, CN106403845B, US10309770B2, CN204854633U, CN105068384B, CN105049664B, CN106403845B, CN214375417U, CN214379242U, CN214379241U, CN214149174U, CN109000582B, CN112802002B, CN210567185U, CN211121096U,C N114001671B, CN114001696B, CN114554025B, CN114205483B, US10309770B2, US11060853B2, KR102096806B1, EP3392831B1, CN218411072U, CN115325959B, CN218103238U, CN218103220U, CN114627249B, US11493326B2, CN115695763B, CN307756797S, CN218584004U
