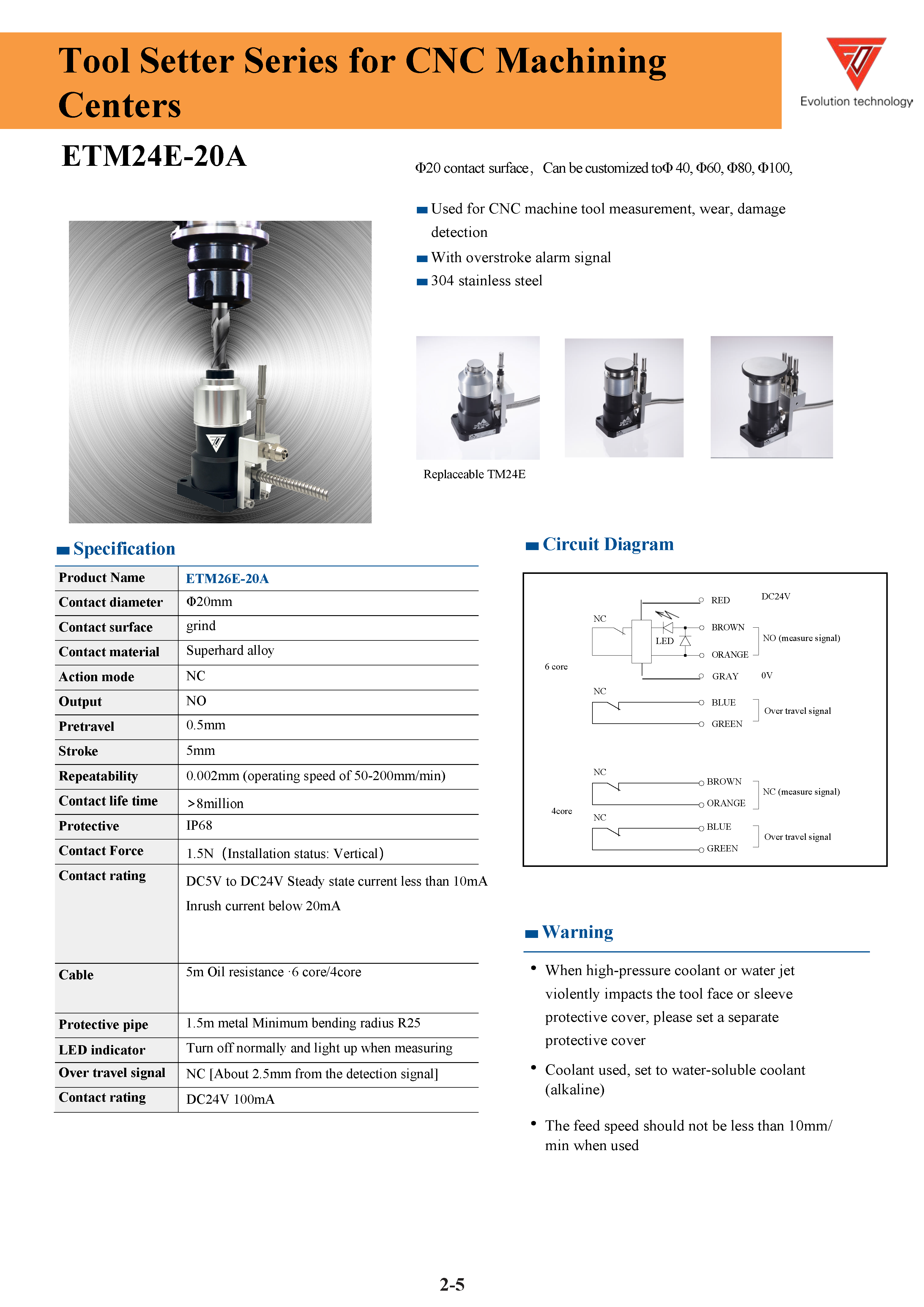

ETM24E-20A

Product Overview

ETM24E-20A

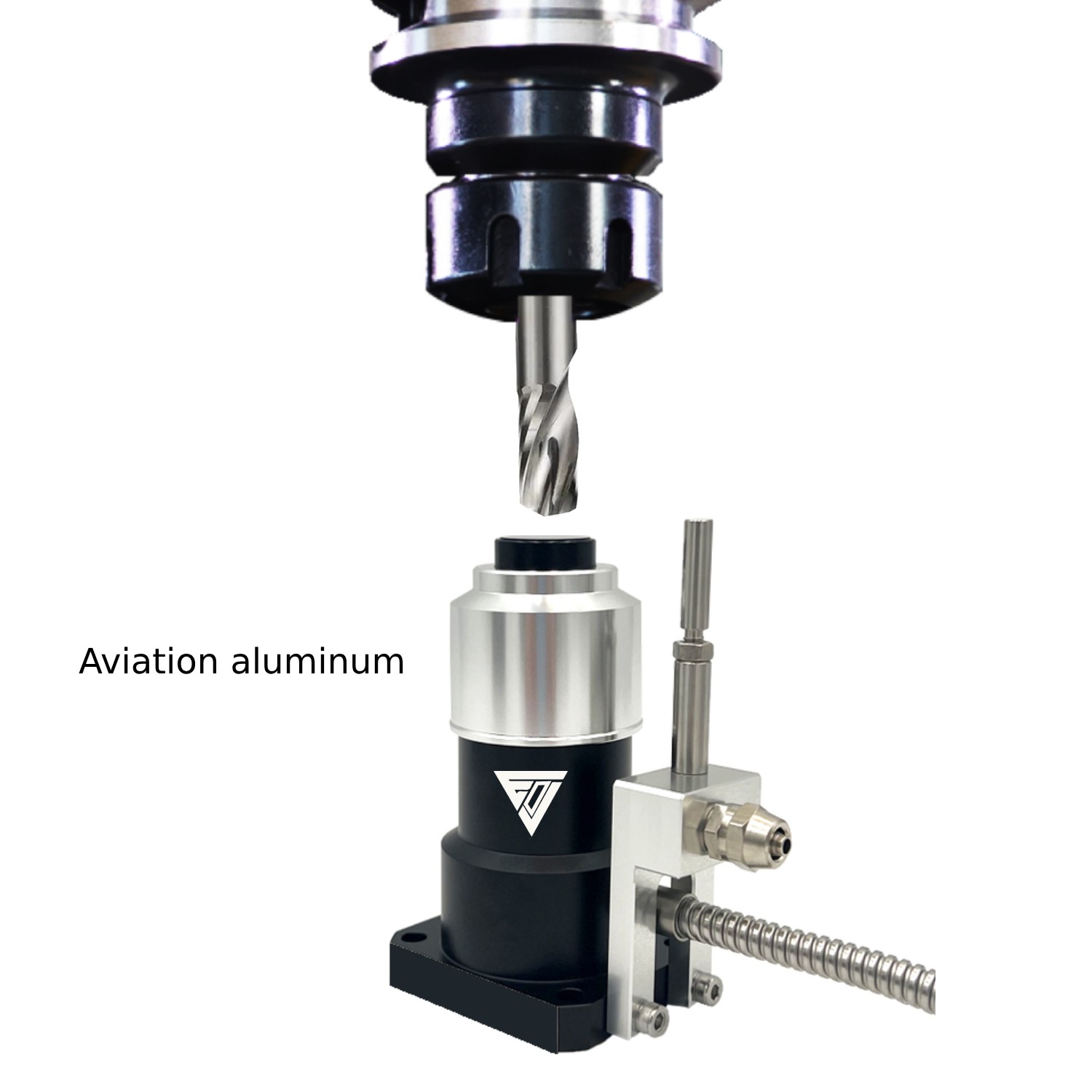

ETM24E-20A is suitable for tool setters of large machine tools and gantry machine tools. Tool setters are high-precision touch sensors used to position cutting tools.

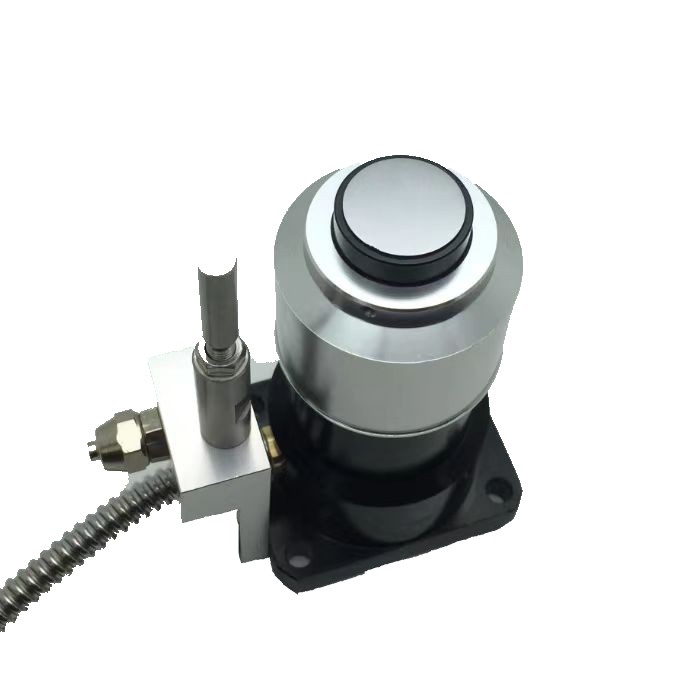

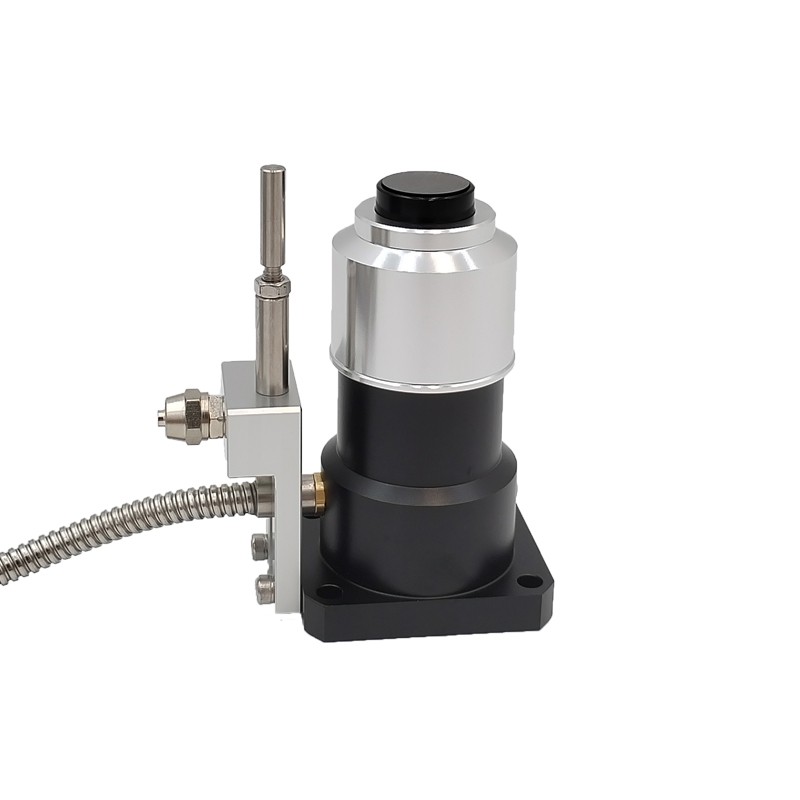

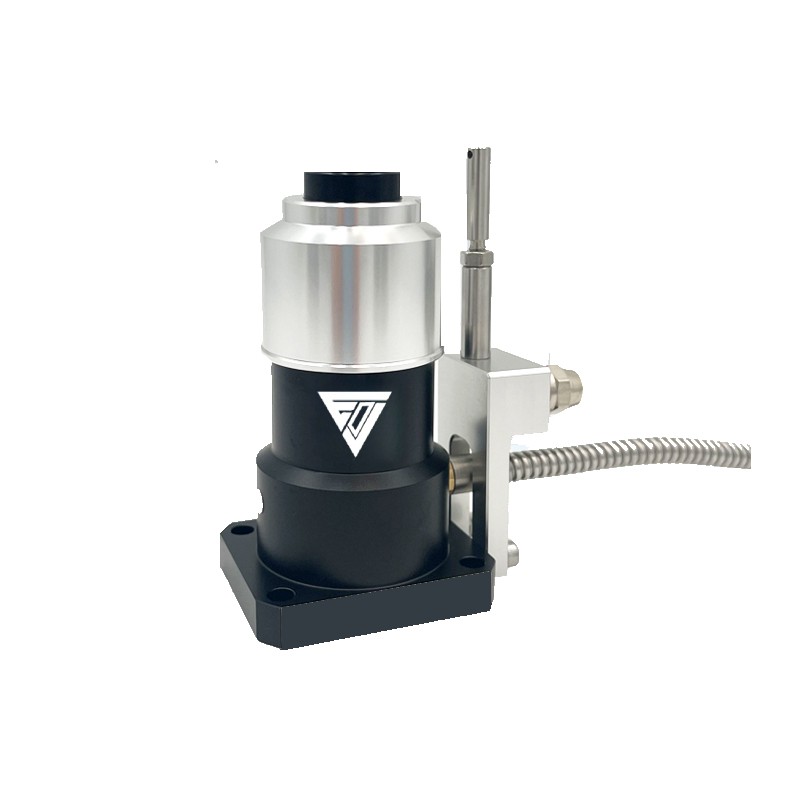

ETM24E-20A is a compact, cost-effective tool setter with a contact surface of φ20 (the contact surface can be customized to 40, 60,)
It can preset various tool types on large machine tools, perform wear, handling, and help maintain machine accuracy at all times.

-Automates high-precision originating of cutting tools
-Prevents machining defects due to thermal displacement and wear
-Eliminates operator burden by reducing setup time by 90%, including conventional test cutting and manual measurement
-Eliminates dangerous on-machine tool setting
-Prevent serious losses caused by tool breakage during machining
