ETM26D-20W

Product Item : 11
Category： Tool setters and broken tool detectors
INQUIRY EMAIL

Product Description:

Product Overview

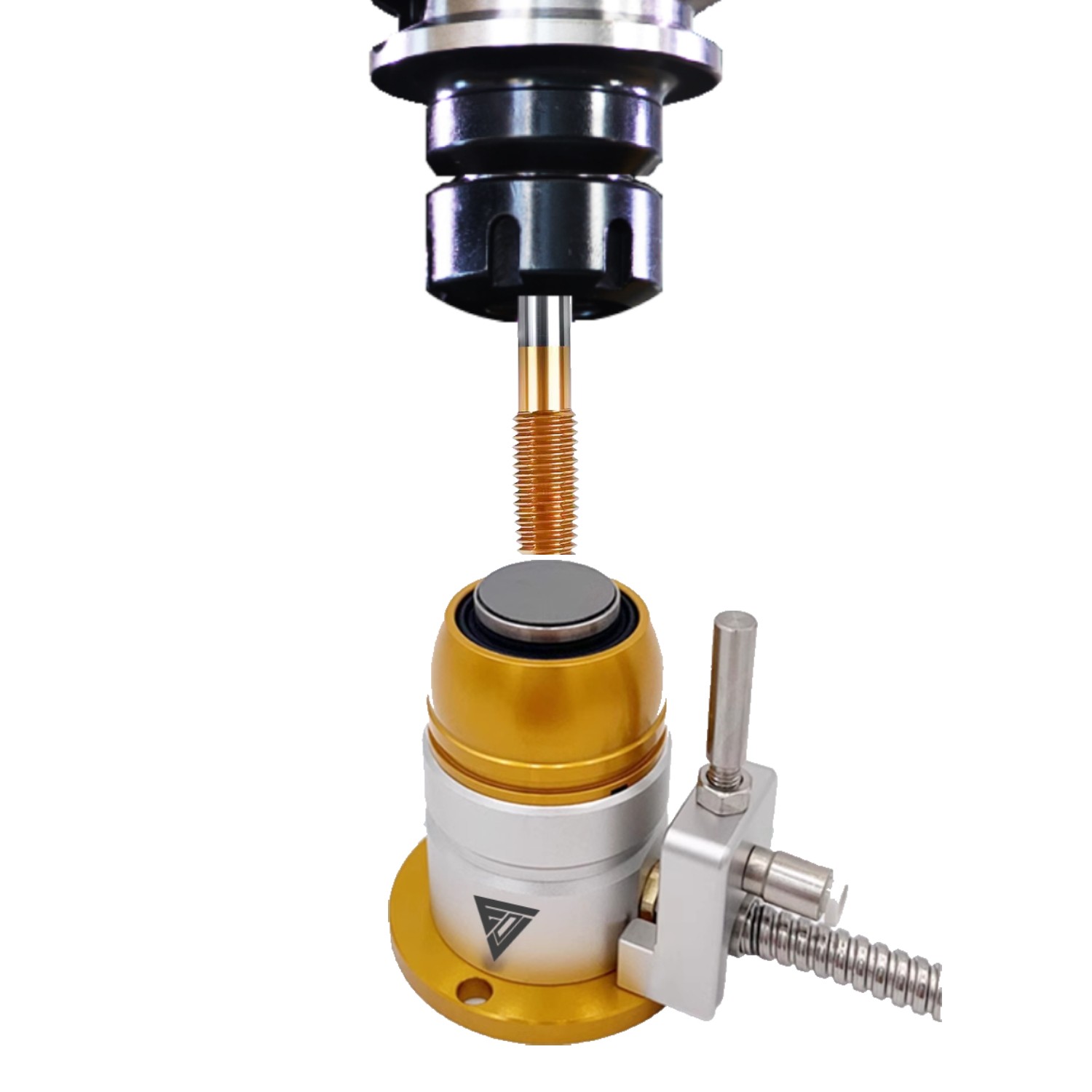

ETM26D-20W Tool Setter

ETM26D-20W is mainly used for woodworking machinery tool testing Measurement, wear, and breakage detection.

occurs when the stroke is exceeded Alarm signal can prevent damage accidents.

Applicable to China, Japan, Taiwan, South Korea, Germany and other woodworking engraving machines .As well as various woodworking control machinery, cutting machines, etc.

The ETM26D-20W is a compact, cost-effective too

l setter with a φ20 contact-surface .

What can we do？

Before processing： Determine whether the workpiece is clamped. Determine the current workpiece center position. Find the workpiece Angle deviation. Determine the Z-direction reference point

After processing： Detect the key dimensions of the workpiece.

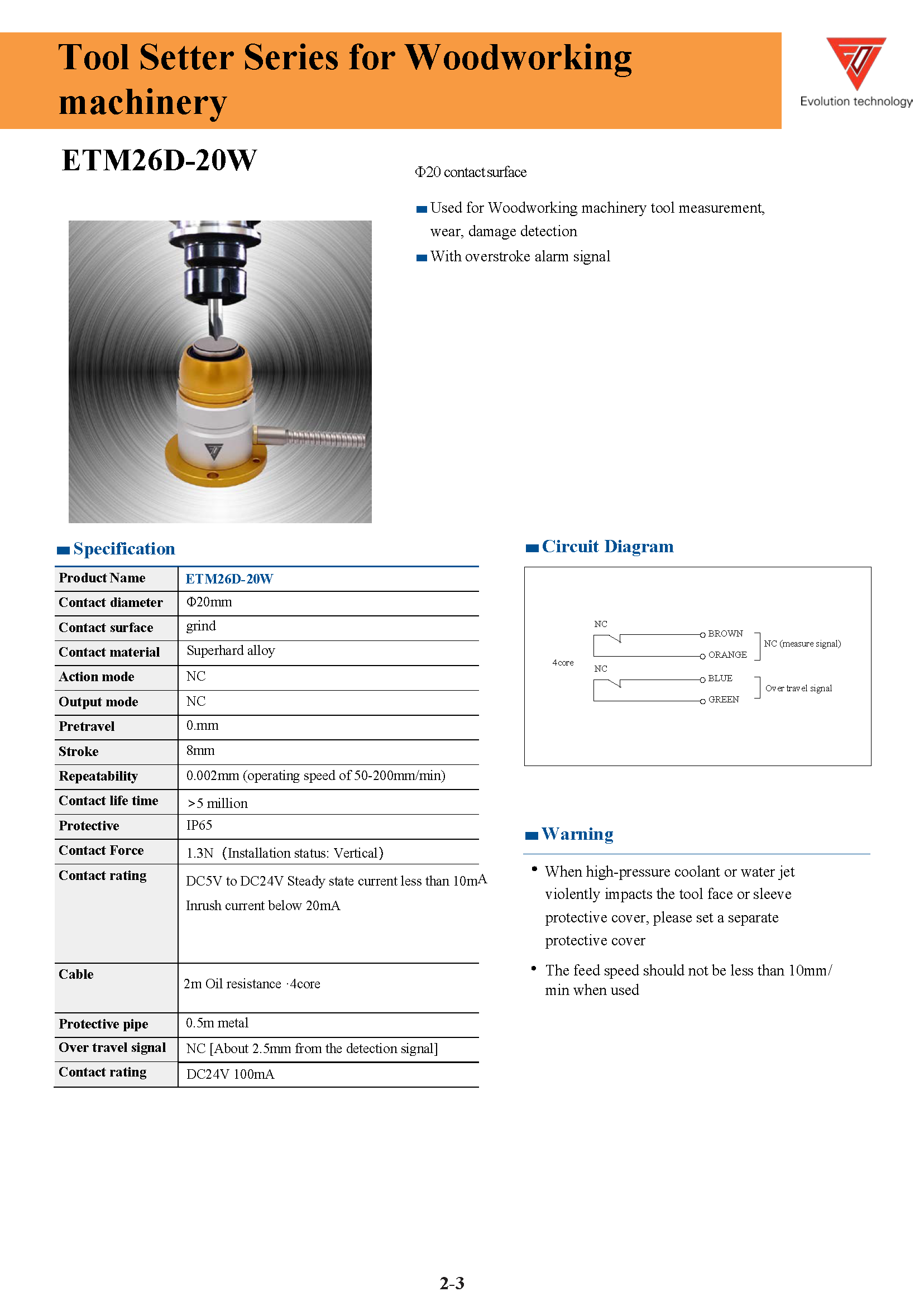

PRODUCT SPECIFICATIONS
