ETM26D-20A

Product Overview

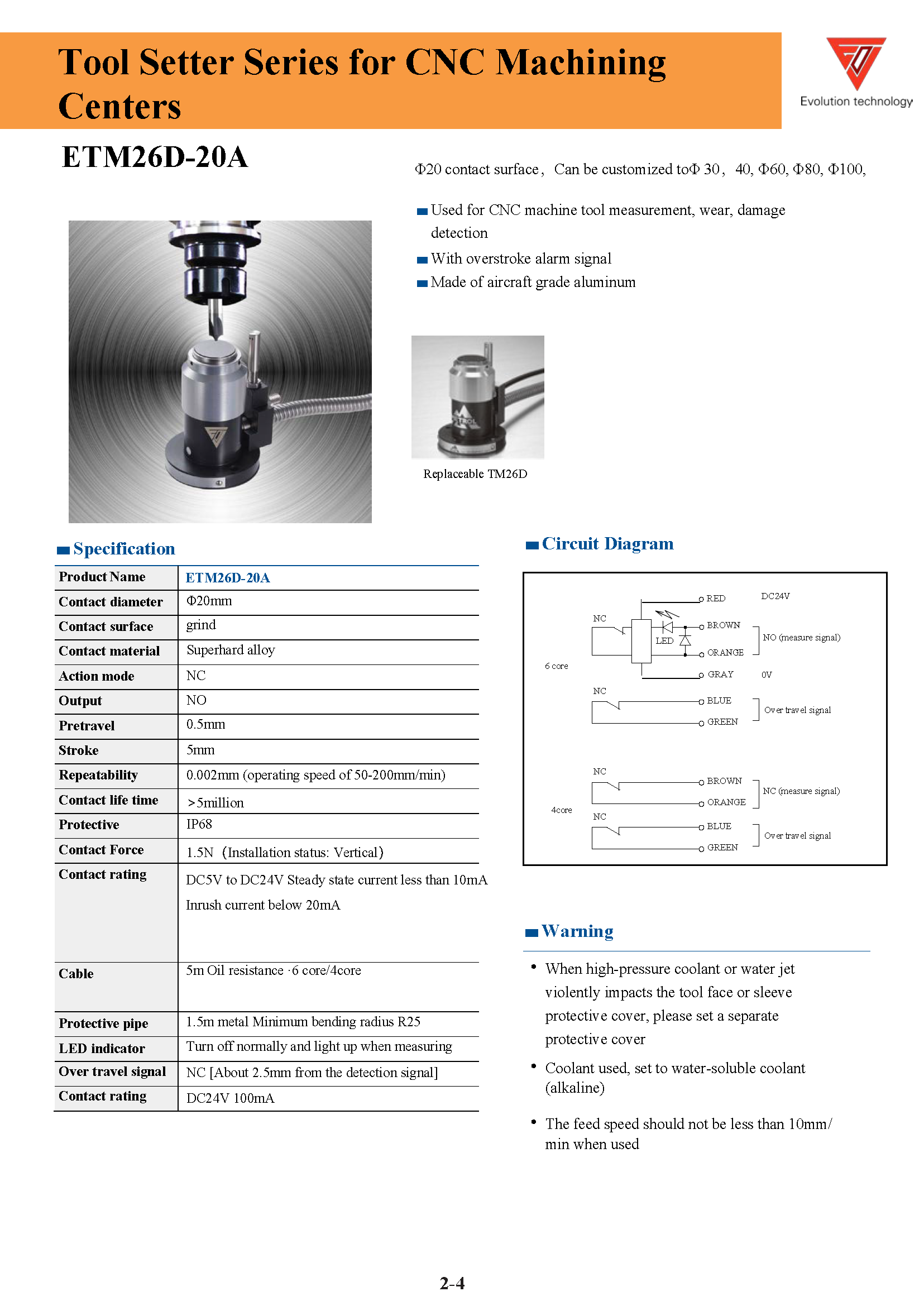

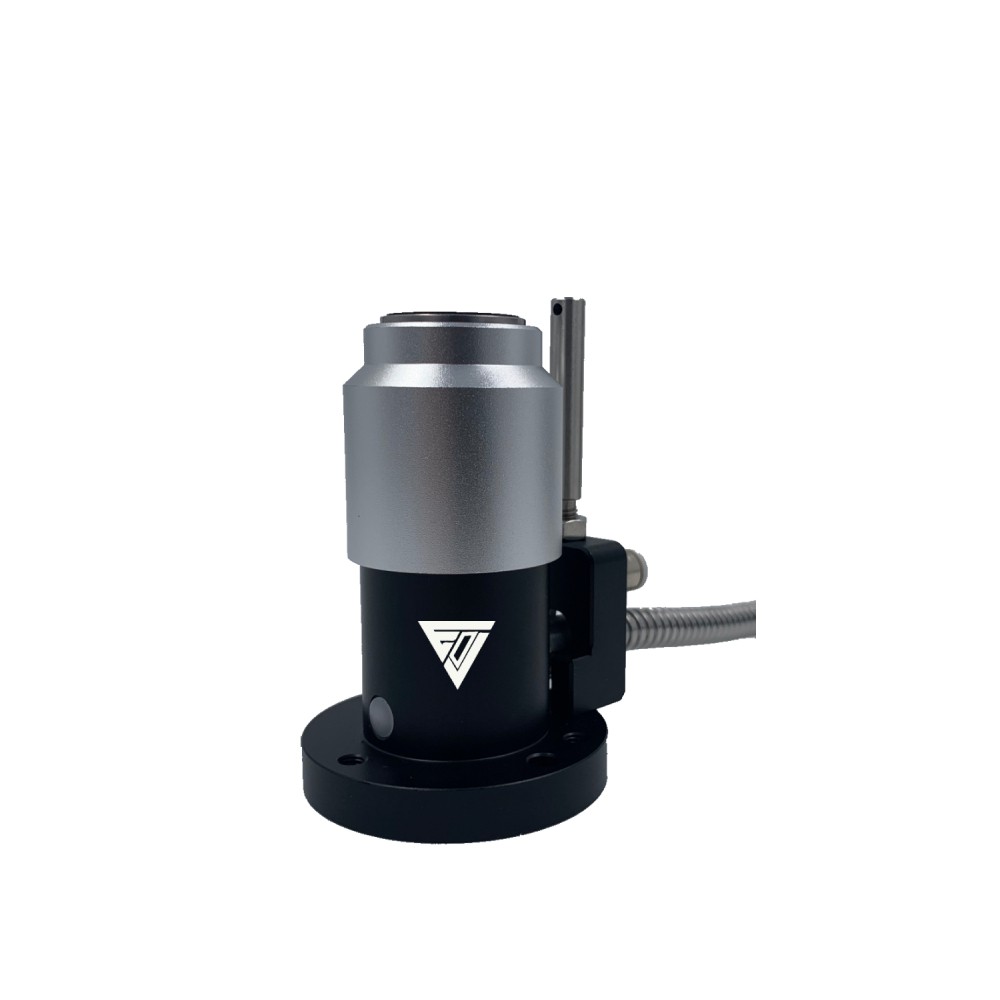

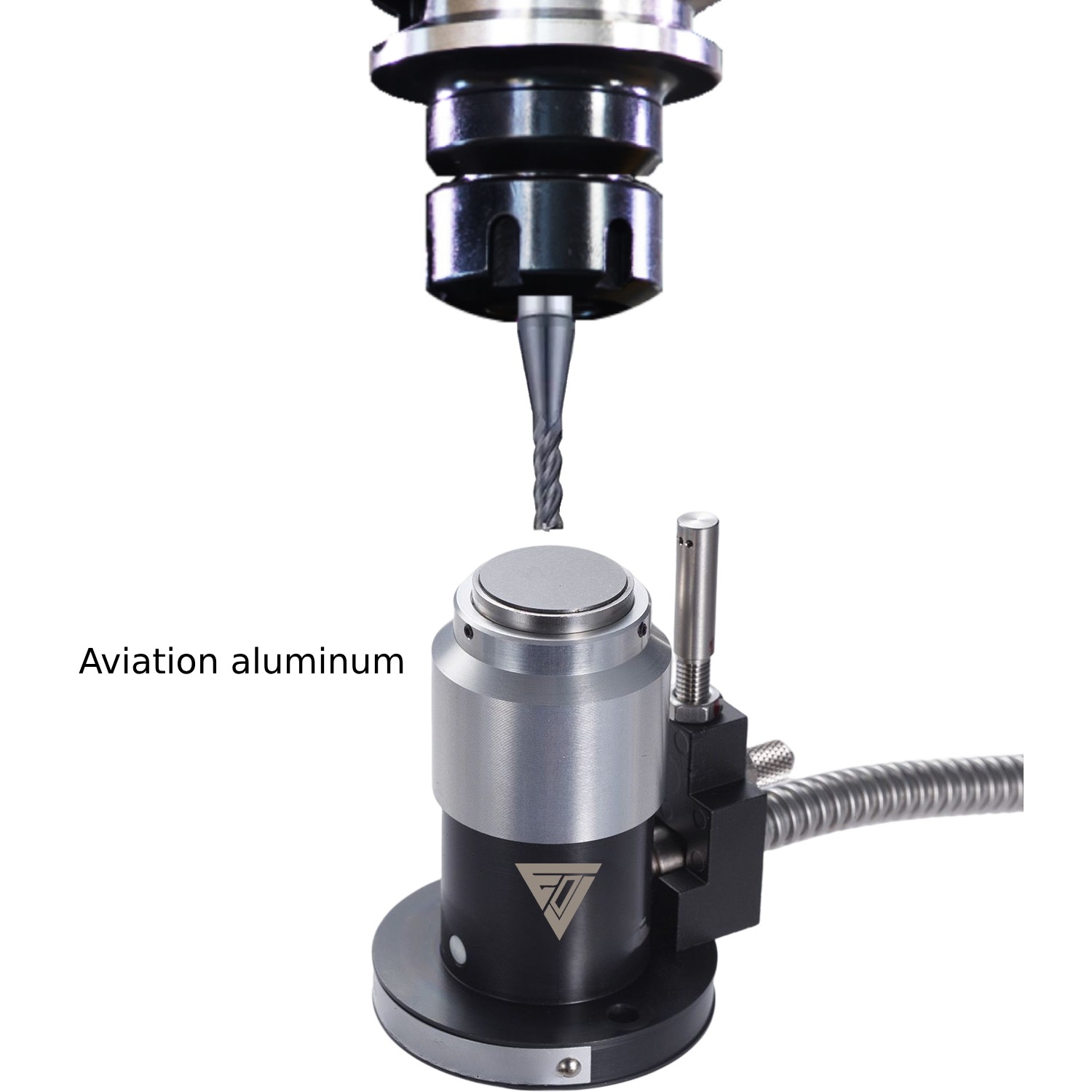

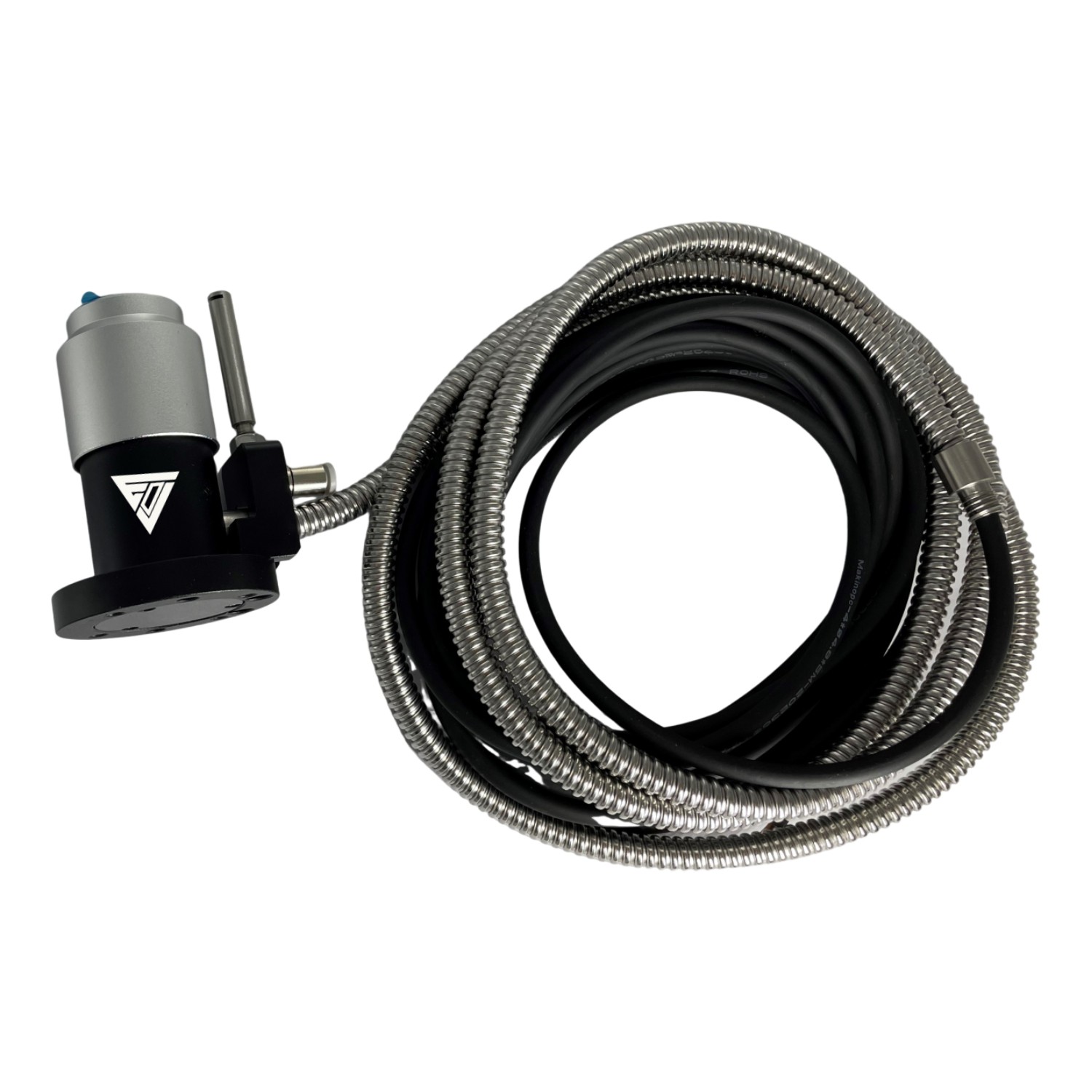

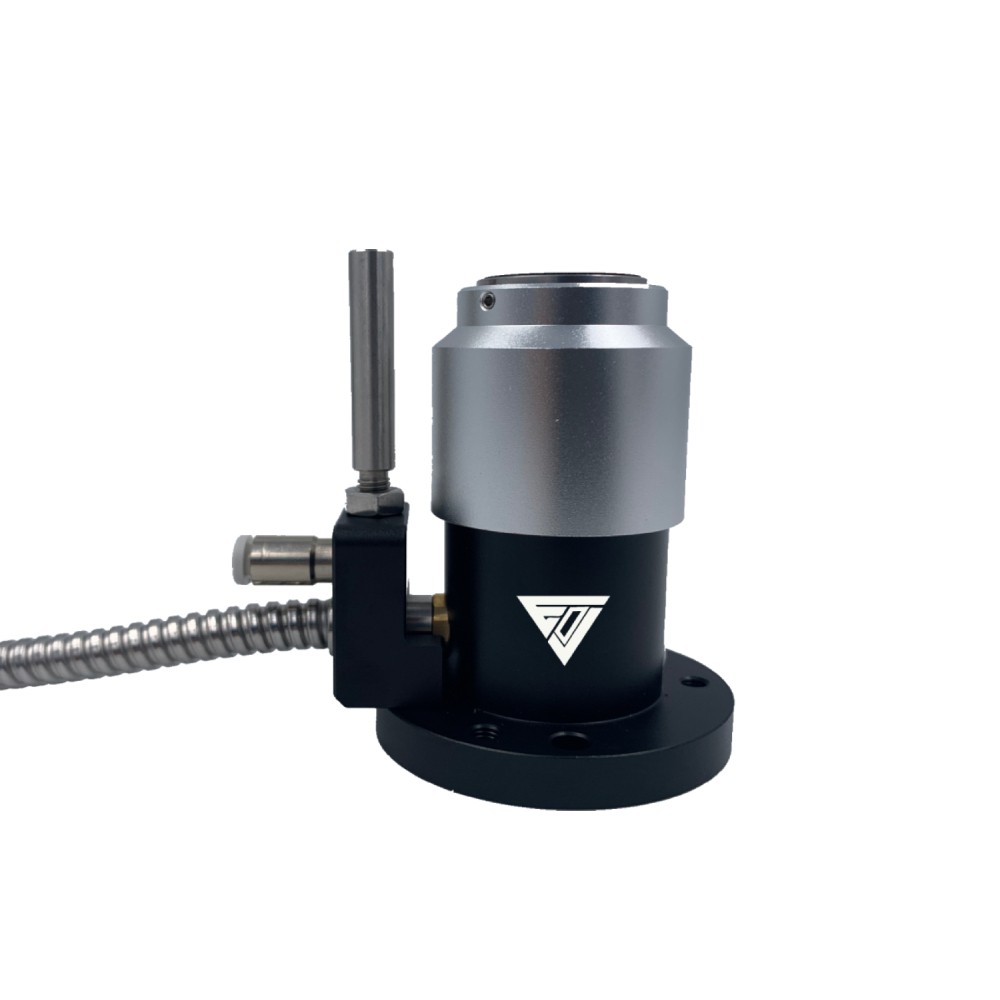

ETM26D-20A Tool Setter

The ETM26D-20A is Tool Setter for CNC Machining Centers.Tool setters are high-precision touch sensors used for positioning cutting tools . The ETM26D-20A is a compact, cost-effective tool setter with a φ20 contact-surface .（Customizable contact surface） It pre-sets a wide range of tool types on small to large machine tools, performs wear, chipping, , and contributes to maintaining the machine's precision at all times.

-Automates high-precision originating of cutting tools
-Prevents machining defects due to thermal displacement and wear
-Eliminates operator burden by reducing setup time by 90%, including conventional test cutting and manual measurement
-Eliminates dangerous on-machine tool setting
-Prevent serious losses caused by tool breakage during machining
