EDMP30 EDM probe

Product Item : 9
Category： probes for workpiece set‑up
INQUIRY EMAIL

Product Description:

Product Overview

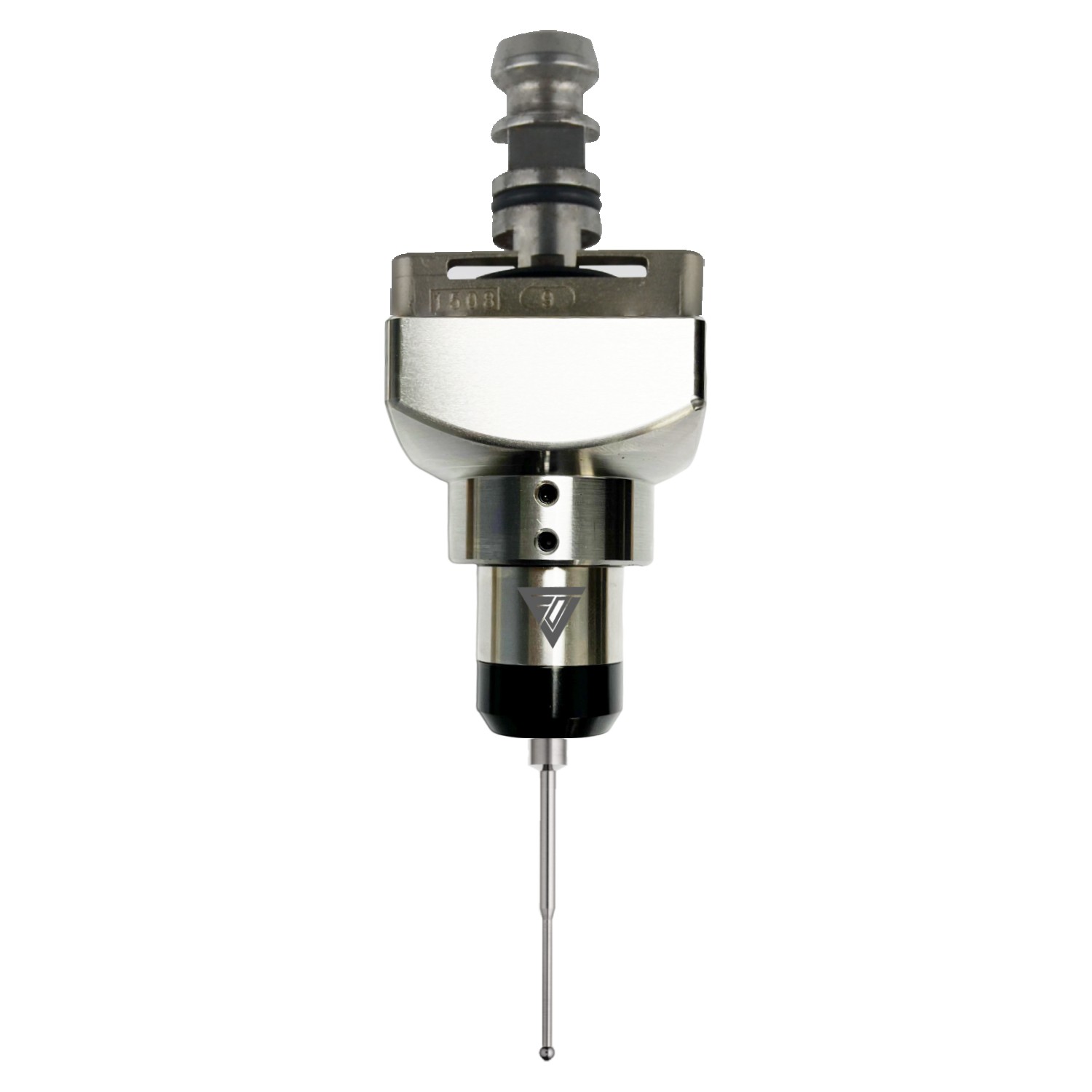

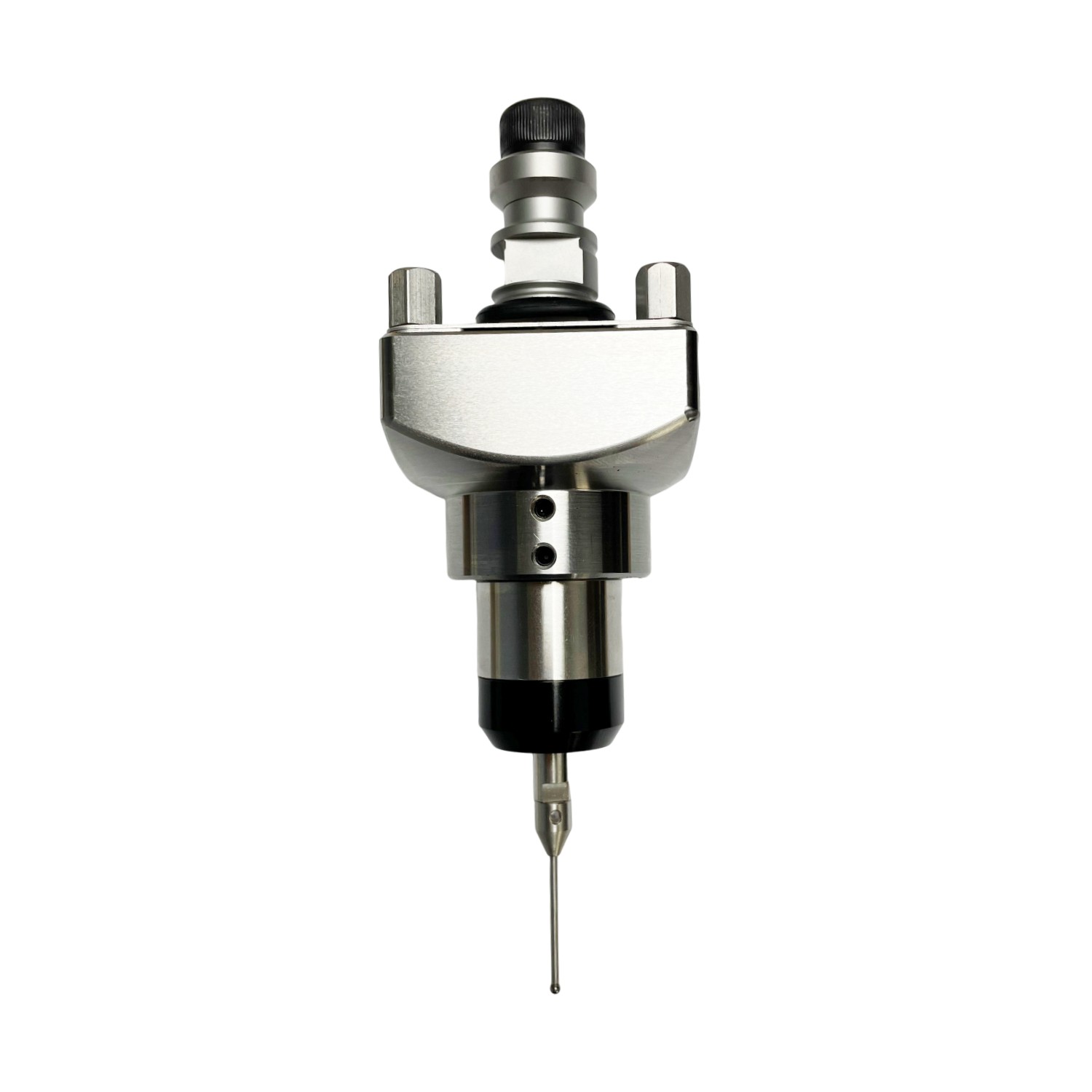

EDMP30 Electrical Discharge Machining probe

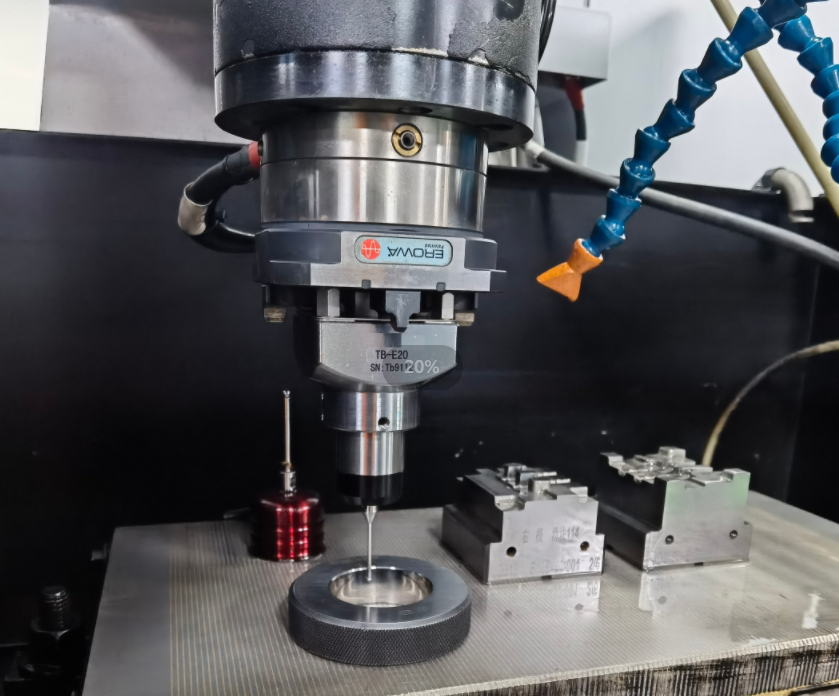

EDMP30 is an ultra-compact 3D trigger probe, the main body can measure motion in 5 directions, with high safety. It can be used for workpiece inspection and job setting in EDM machining centers and small multitasking machine tools. In the metering function, we can replace other brands, at the same time convenient for users to install and save costs.

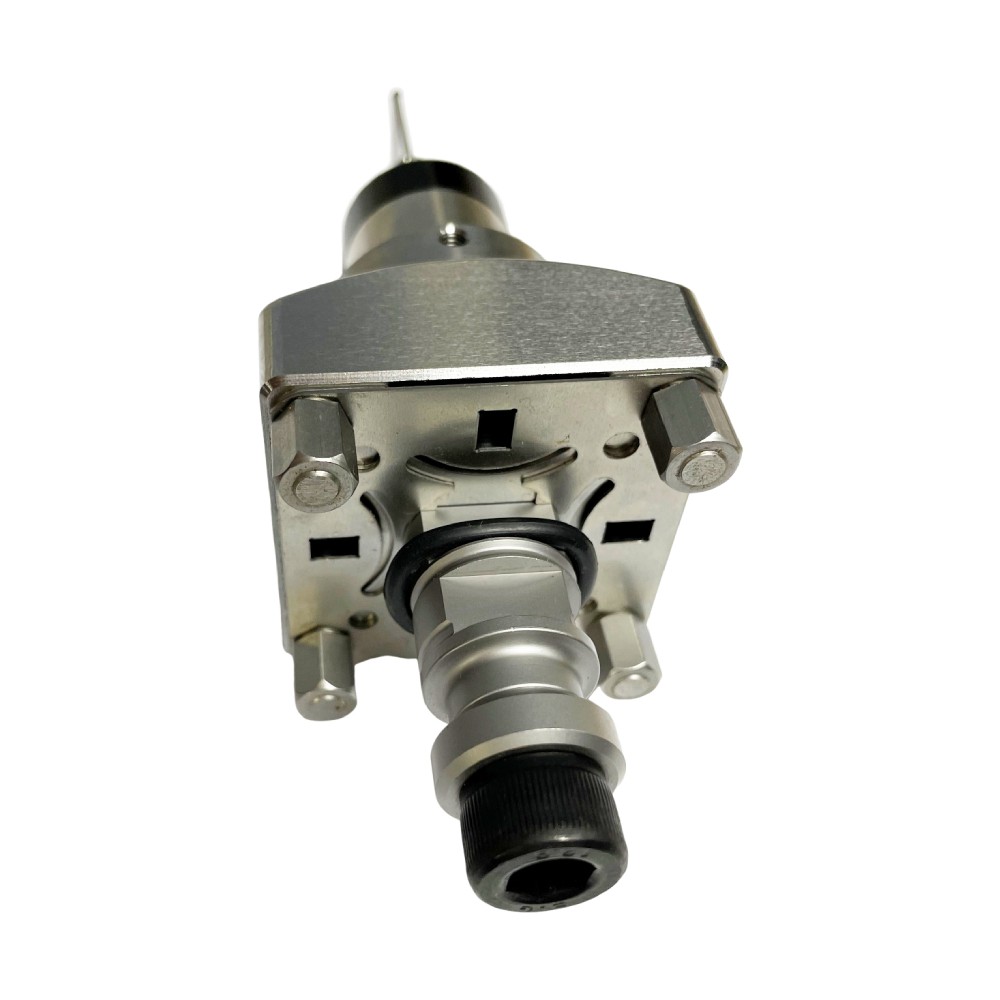

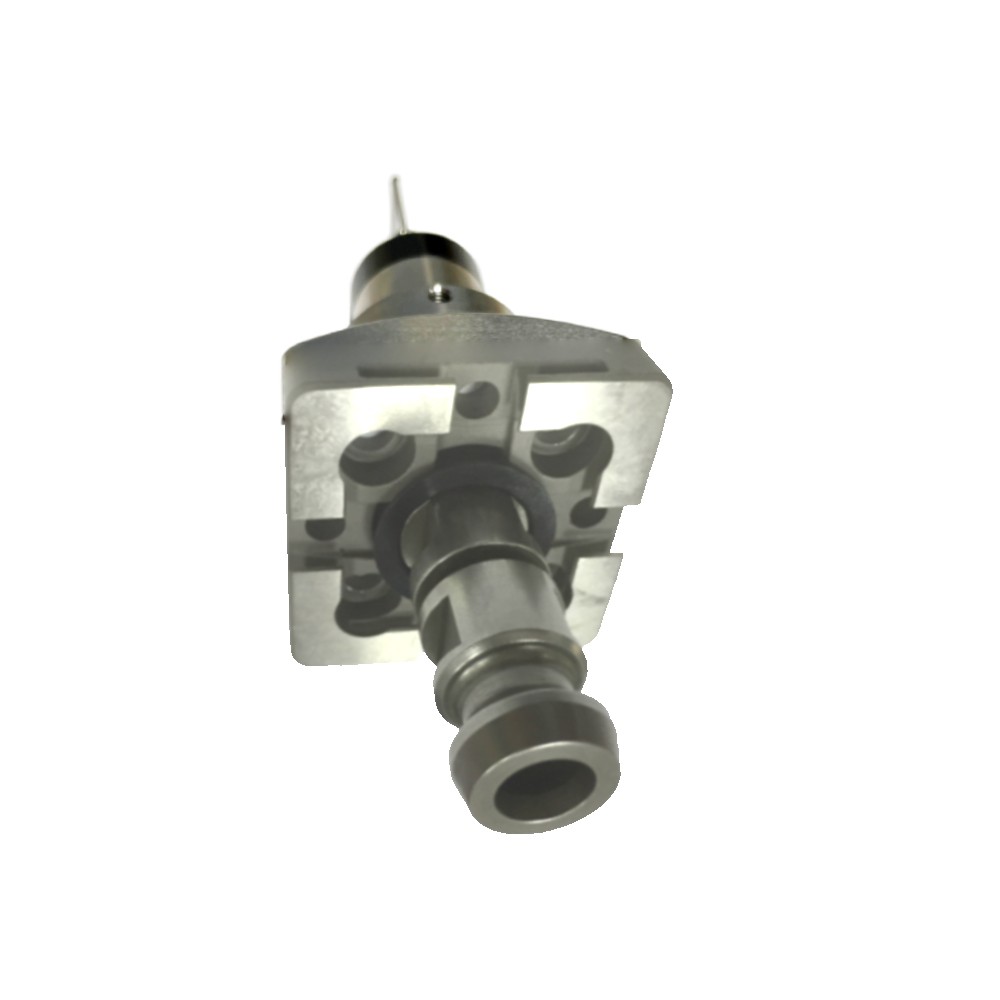

We can choose EROWA or 3R quick connector, or we can customize the product for you.

What can we do？

Before processing： Determine whether the workpiece is clamped. Determine the current workpiece center position. Find the workpiece Angle deviation. Determine the Z-direction reference point

After processing： Detect the key dimensions of the workpiece.

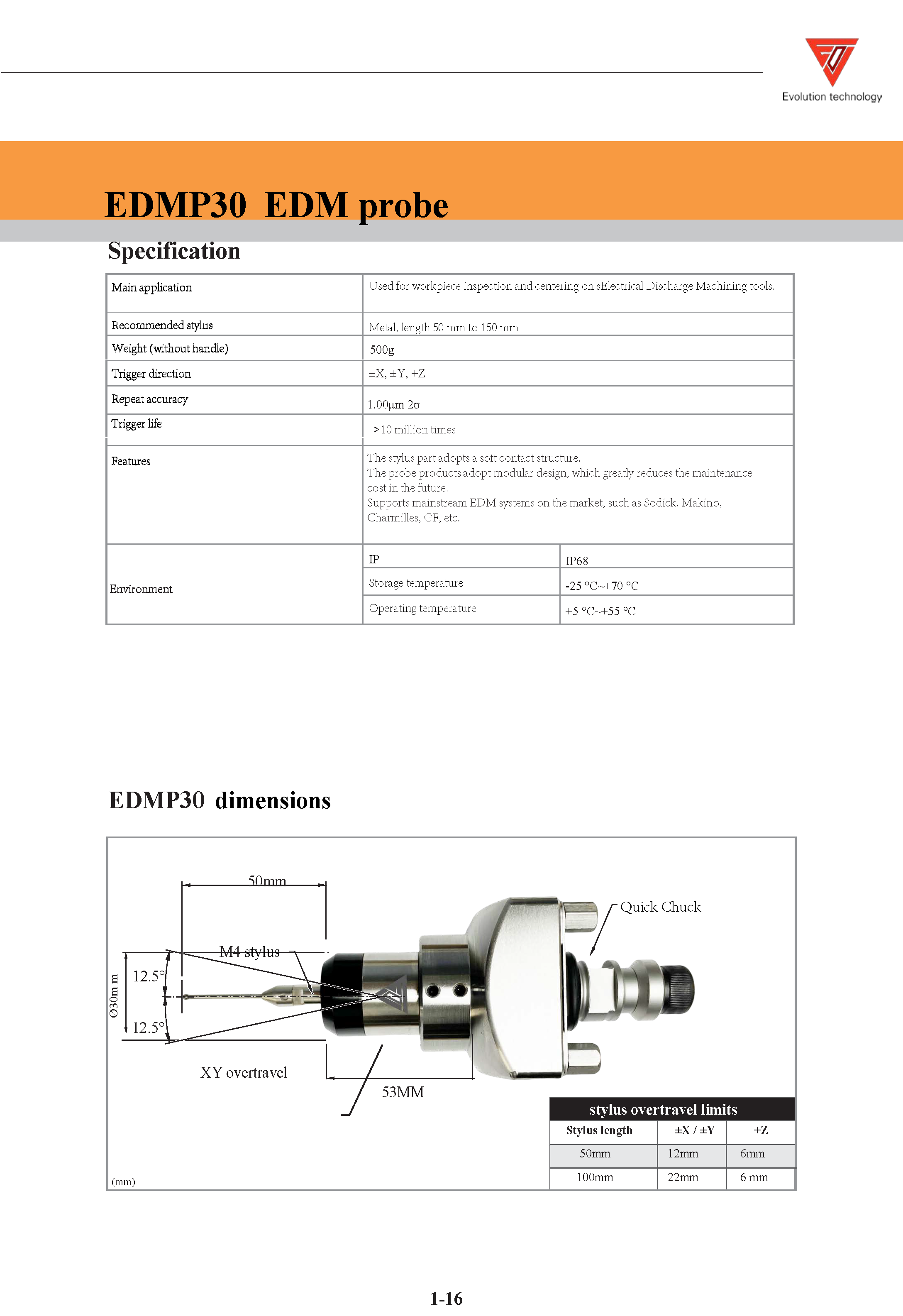

PRODUCT SPECIFICATIONS
