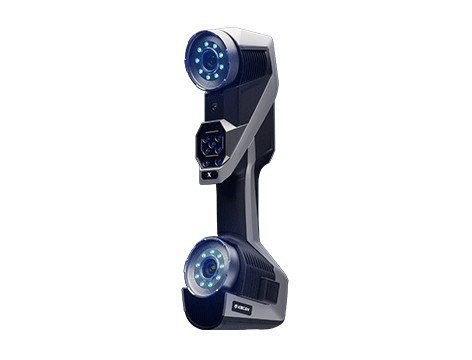

KSCAN-X Intelligent and Wireless Large-area 3D Scanner

KSCAN-X Intelligent and Wireless Large-area 3D Scanner

Category： Handheld 3D Scanners
INQUIRY EMAIL

Product Description:

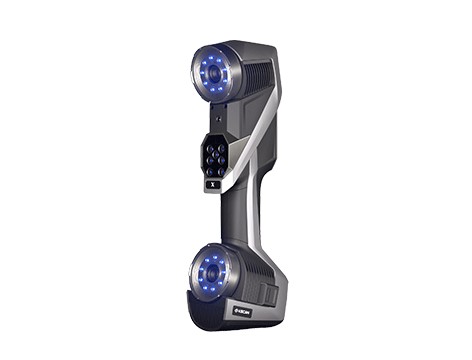

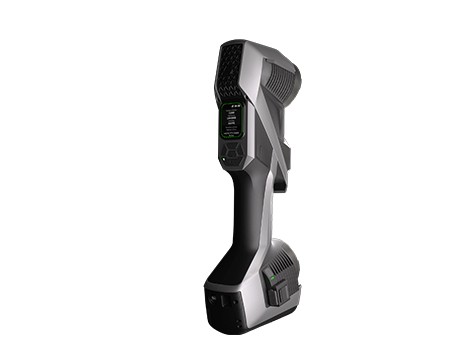

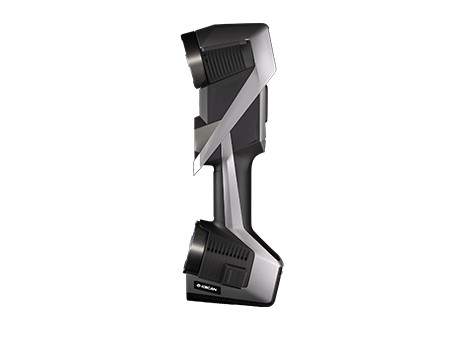

KSCAN-X Large-area 3D Scanner
Intelligent and Wireless Large-area 3D Scanner

Powered by SCANTECH’s advanced wireless technology and adaptive photogrammetry, the KSCAN-X is an intelligent, wireless large-area 3D scanner that sets a new standard for large-scale 3D measurements.

Featuring wireless operation, ultra-wide scanning area, extended depth of field, and fast scanning, the KSCAN-X offers smooth and high-precision 3D measurements for ultra-large and large to medium-sized parts across industries such as aerospace, heavy industry, and rail transportation. Designed to boost efficiency and deliver accurate quality control, the KSCAN-X is the ultimate solution for advanced manufacturing

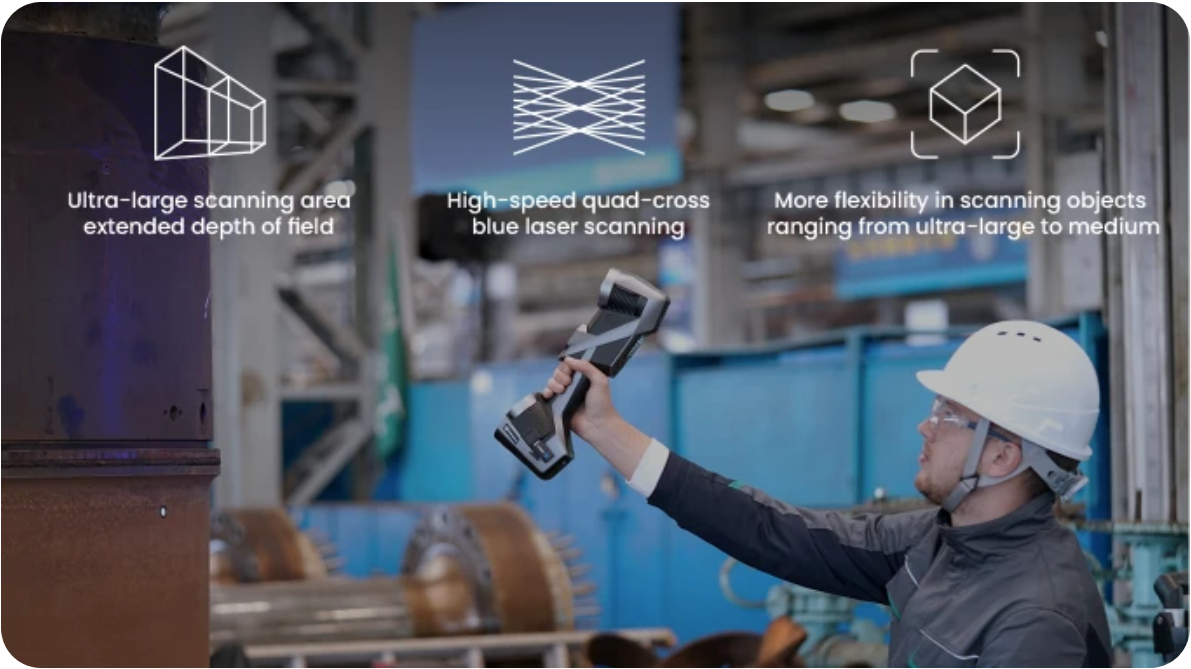

Wide-Area Scanning,Exceptional Precision

Ultra-large Scanning Area

KSCAN-X, powered by our in-house developed and sophisticated algorithms, offers extensive scanning area of up to 2.6 m*1.8 m, which is ideal for scanning ultra-large parts.

Ultra-large Depth of field

With a large depth of field ranging from 0.3 - 2.5 m, KSCAN-X ensures precise measurements for everything from medium to ultra-large parts with exceptional quality. Its flexible working distance makes scanning various-sized parts easier and more efficient.

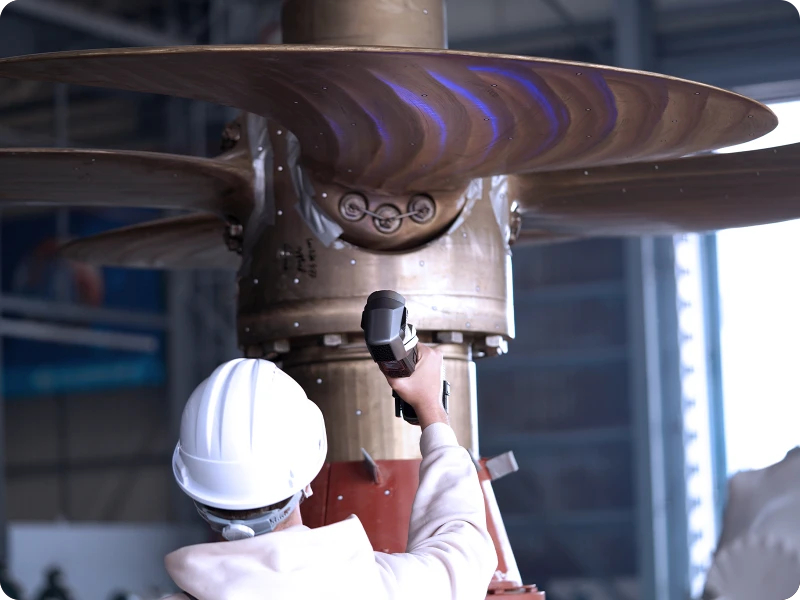

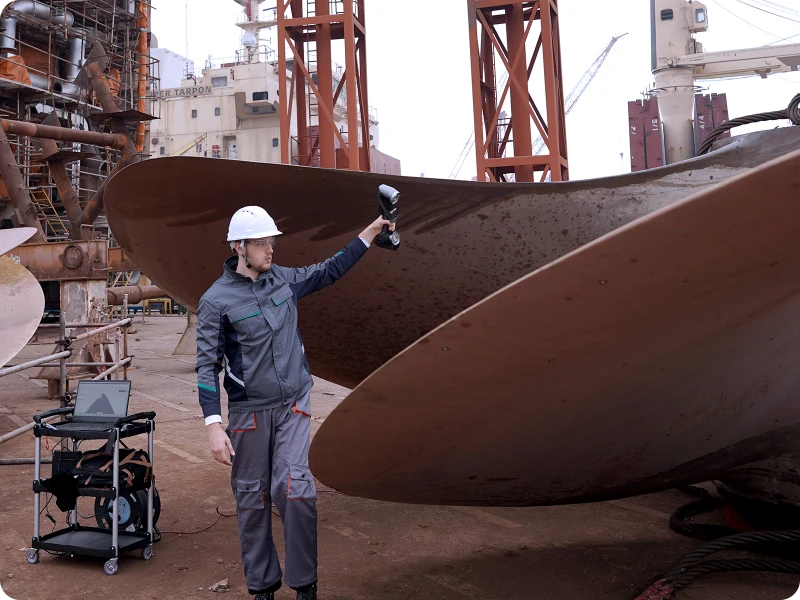

Ultra-large Parts | High Efficiency

Large FOV scanning: With 4*21 blue laser lines, KSCAN-X enables highly efficient large FOV scanning, capturing extensive surfaces in a single scan. It achieves exceptional accuracy of up to 0.075 mm, with volumetric accuracy reaching 0.075 mm + 0.010 mm/m.

Adaptive photogrammetry: With an advanced adaptive photogrammetry system, KSCAN-X ensures exceptional accuracy over long distances. It eliminates cumulative errors and ensures consistent volumetric accuracy, delivering high-precision results for both large-scale and detailed measurements, even in challenging environments.

Mid-to-large Parts | Fine Details

KSCAN-X's medium-distance scanning mode, with 27 blue laser crosses, is designed for scanning parts ranging from 0.5 m to 2 m. It captures intricate details with up to 0.030 mm accuracy, ensuring precise quality inspection of medium to large-sized parts, even with complex curves or fine features.

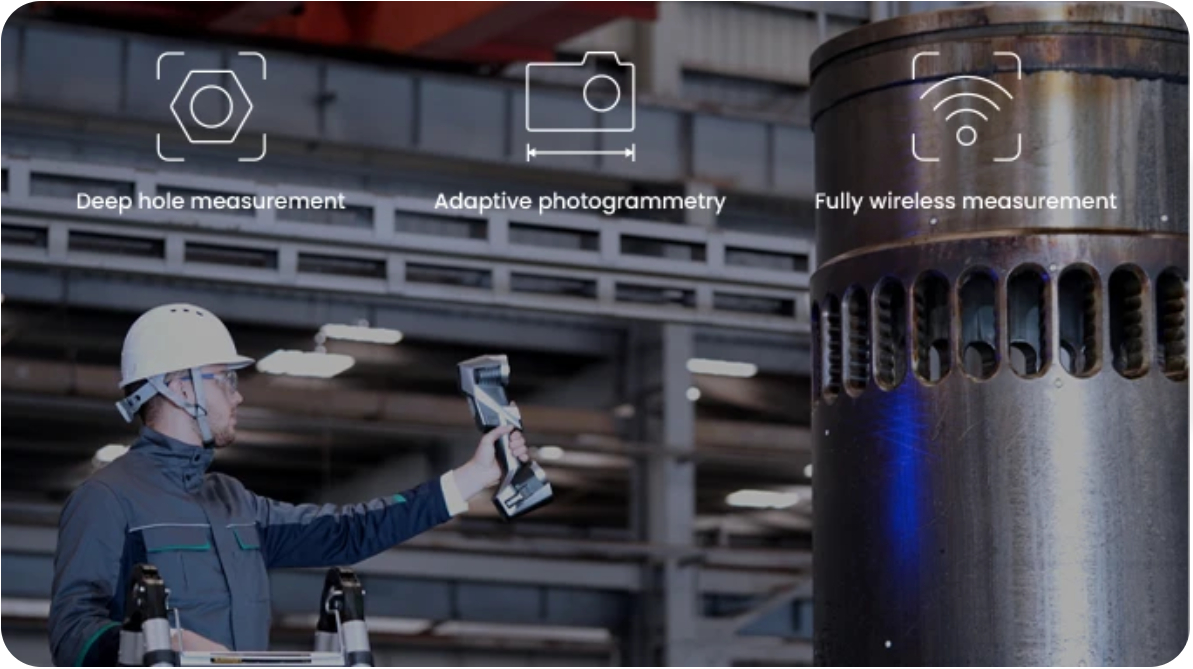

Deep Hole Measurement | No Blind Spots

KSCAN-X offers a more compact and lightweight design compared to similar products. Featuring a shorter baseline and a dedicated blue laser line for deep-hole detection, it excels at capturing hard-to-reach areas like pipe interiors and gear teeth, ensuring complete and accurate data collection, even in hard-to-reach areas.

Truly Wireless Scanning

It operates completely wire-free, enabling seamless scanning even in power-limited environments, at heights, or in remote locations. Experience true wireless freedom in 3D measurement.

Technical Specifications

Type	KSCAN-X
Scan mode	Large FOV scanning	84 blue laser lines
	Medium-distance scanning	54 blue laser lines
	Deep hole scanning	1 extra blue laser line
	Photogrammetry	Adaptive photogrammetry
Accuracy (1)	Medium-distance scanning	0.030 mm
Accuracy (1)	Large FOV scanning	0.075 mm
Volumetric accuracy (1)(2)		0.075 mm + 0.010 mm/m
Scanning rate up to		6,450,000 measurements/s
Scanning area up to		2600 mm*1800 mm
Working distance		0.30 - 2.50 m
Object size		0.5 m ~ 15 m
Laser class		Class Ⅱ (eye-safe)
Resolution up to		0.1 mm
Dimension		344 mm124 mm 99 mm
Stand-off distance		235 mm
Connection	Interface mode	USB3.0 Type-B
	Wireless standard	Wi-Fi 6，802.11a/b/g/n/ac
	Wireless connection	Support Dual WNIC
	Intelligent and wireless mode	Support
	Uninterrupted power supply	Support
Environment Adaptability	Operating environment	Fanless, suitable for workshop environments
	Operating temperature range	-10~40℃
	Operating humidity	10-90% RH
	Protection rating	IP50
Patent	CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1, KR102209255B1, US10914576B2, CN113470180B, CN113218417B, CN113063370B, CN218411073U, CN113310427B, CN113074659B, CN218772495U, CN113473034B, CN115830249B, CN219829786U, CN116206069B
(1) ISO 17025 accredited: Performance is evaluated based on JJF1951 specification, VDI/VDE 2634 Part 3 standard. (2) Paired with 800-mm high-precision scale bar.
