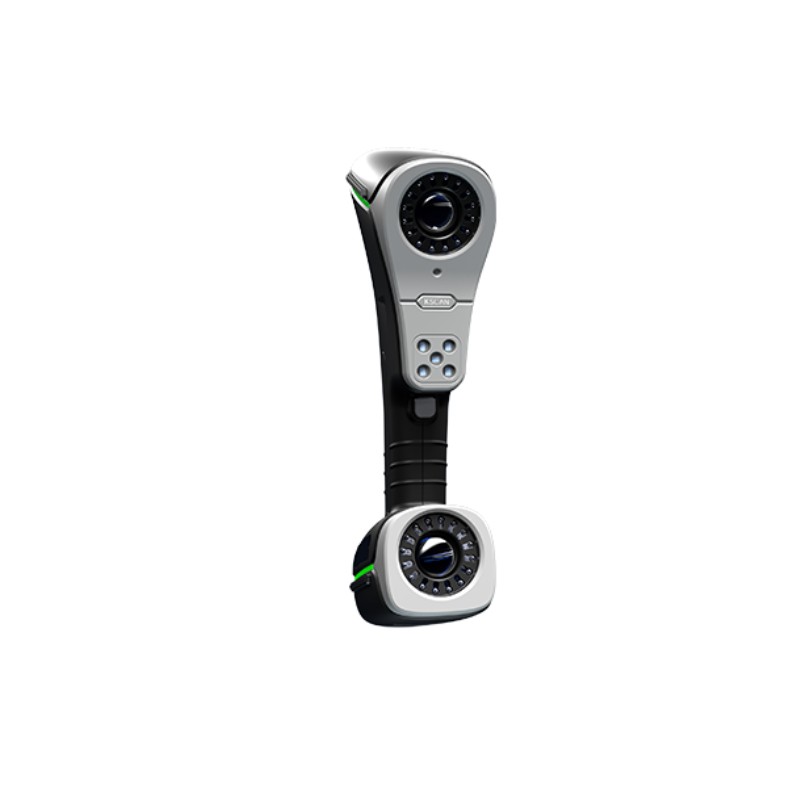

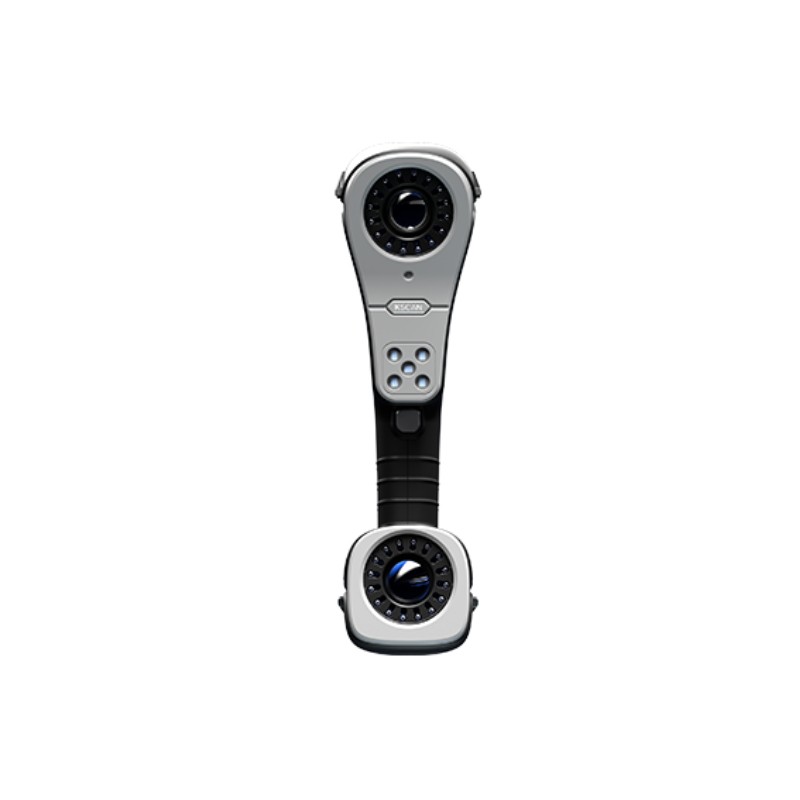

KSCAN-Magic Series 3D Object Scanner

Category： Handheld 3D Scanners
INQUIRY EMAIL

Product Description:

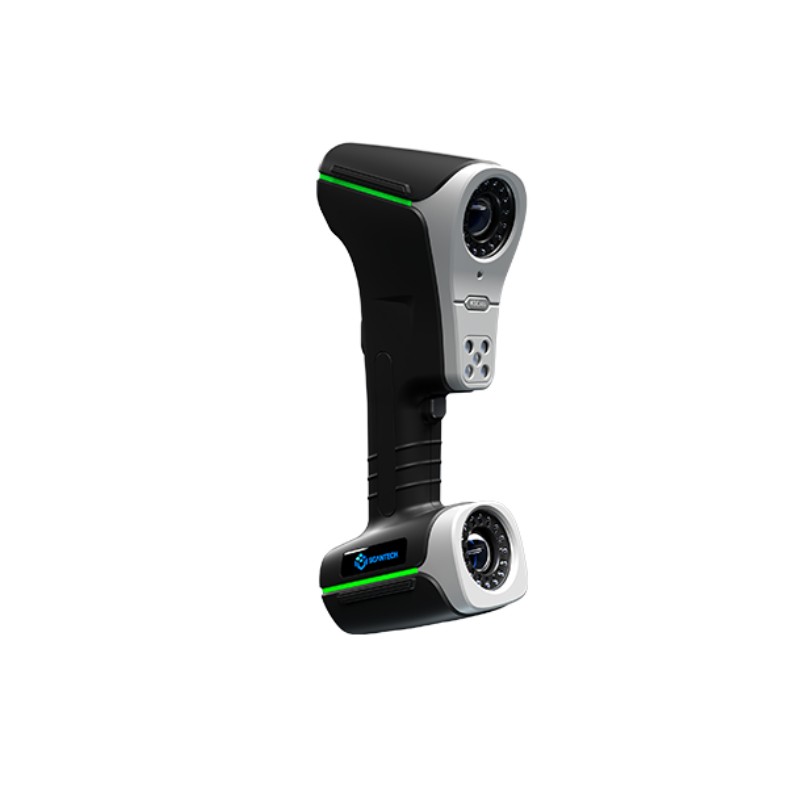

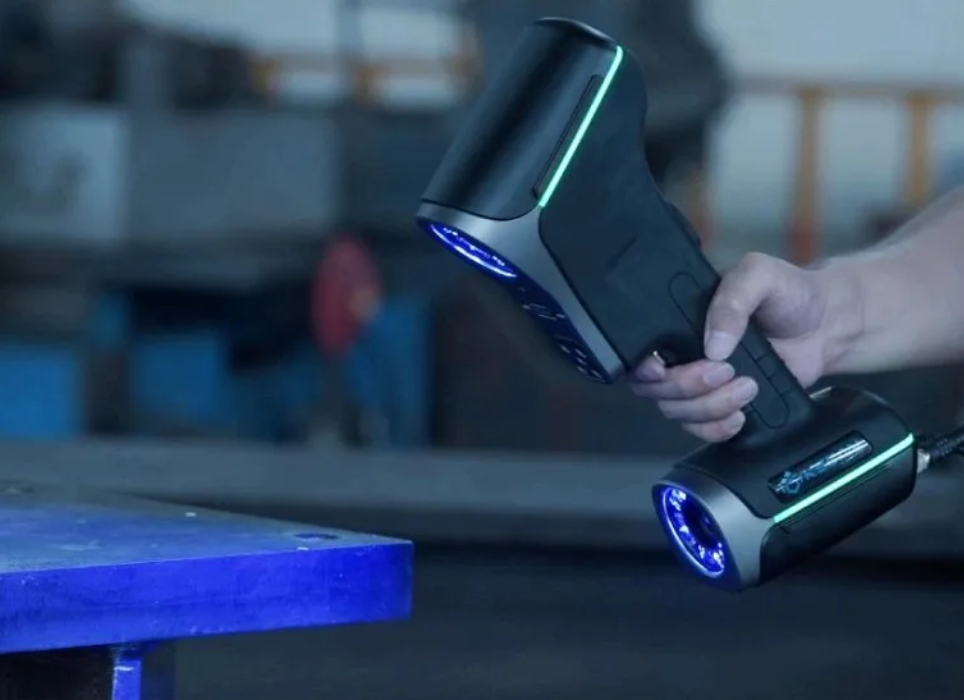

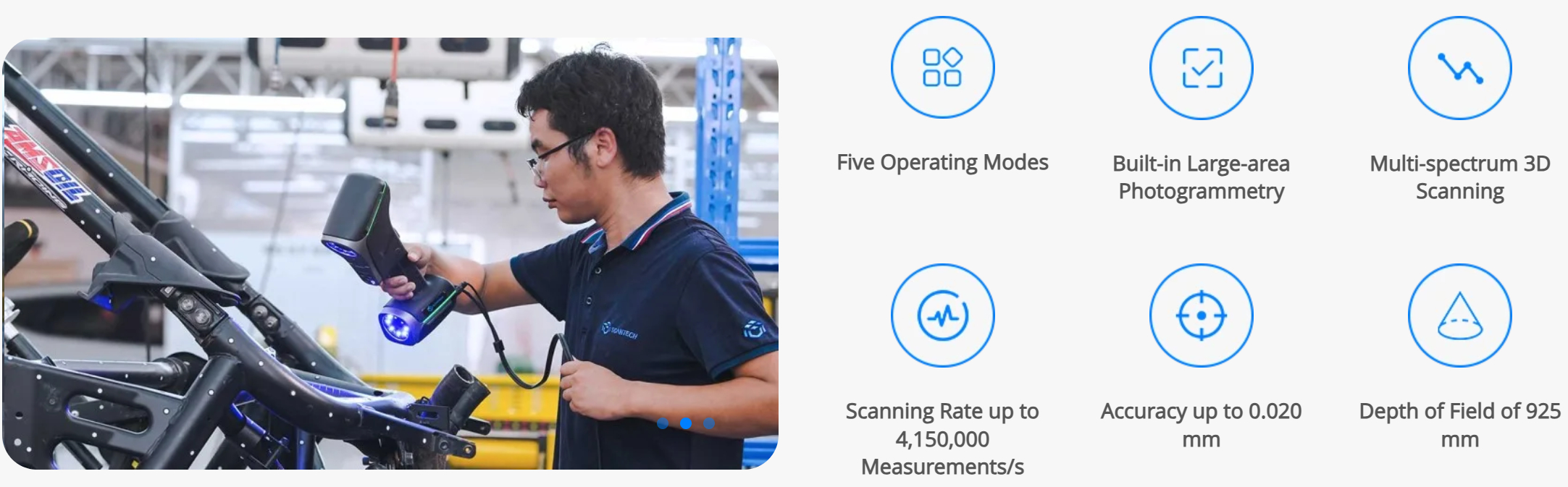

KSCAN-Magic Handheld 3D Scanner for Small & Large Objects

Introducing the KSCAN-Magic Upgrade 3D scanner Series: an innovative fusion of cutting-edge composite 3D scanning that integrates both infrared and blue laser. This unique 3D object scanner ensures versatility and applicability across a wide range of industries. Engineered for precision and versatility, our comprehensive handheld 3D scanner boasts five distinct modes of operation – large-area scanning with parallel infrared lasers, ultra-fast scanning with blue laser crosses, hyperfine scanning with blue parallel lasers, deep-hole scanning with a single blue laser, and a built-in large-area photogrammetry system.

KSCAN-Magic 3D object scanner features fast scanning speeds, high precision, and the ability to capture fine details over large areas with a deep field of view. It excels in measuring dark and reflective surfaces, suitable for industrial parts like wind turbines, automotive bodies, and hydro-power equipment.

Five Modes at Your Fingertips

Experience Diverse Ultimate from Metrology Measurement. With KSCAN Magic, the possibilities are endless, making it the ultimate solution for all metrology measurement needs.

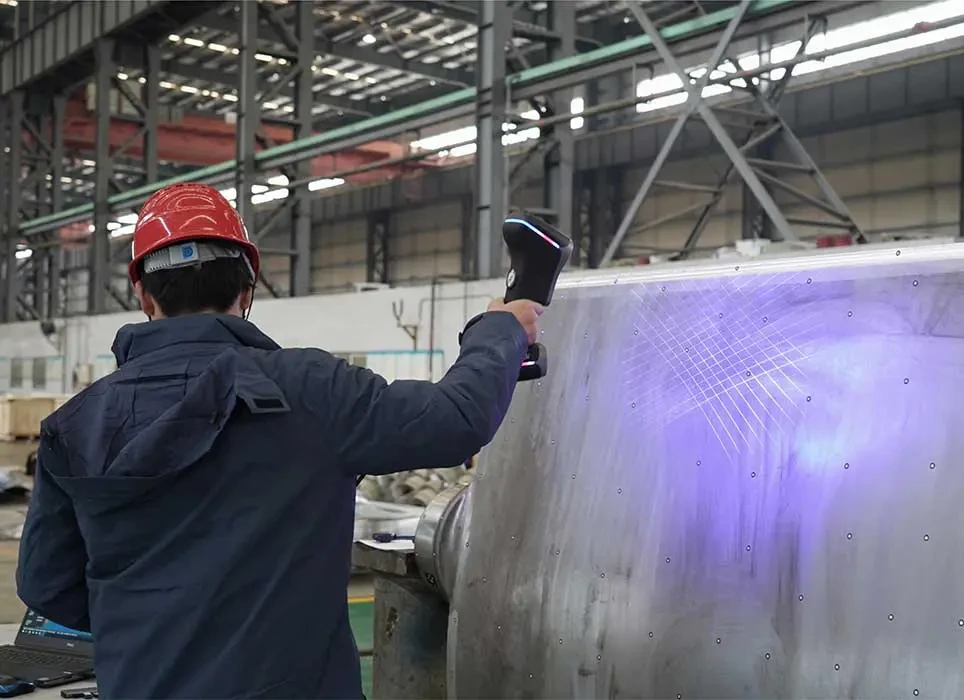

Large-area scanning
In large-area scanning mode, 11 parallel infrared laser lines can scan up to 1440 mm × 860 mm, easily achieving large-scale scanning of large objects.In large-area scanning mode, 11 parallel infrared laser lines can scan up to 1440 mm × 860 mm, easily achieving large-scale scanning of large objects.

High-speed scanning
In high-speed scanning mode, the number of blue cross laser lines can reach 34, and the scanning rate can reach up to 4,150,000 measurements/second, greatly improving work efficiency.

Fine scanning
In fine scanning mode, 7 parallel blue laser lines can reach a maximum resolution of 0.010mm, which can accurately obtain complete data on the surface of complex objects and clearly capture details.

Deep hole scanning
In deep hole scanning mode, a single blue laser line can quickly and accurately collect 3D data of deep holes and blind spots.

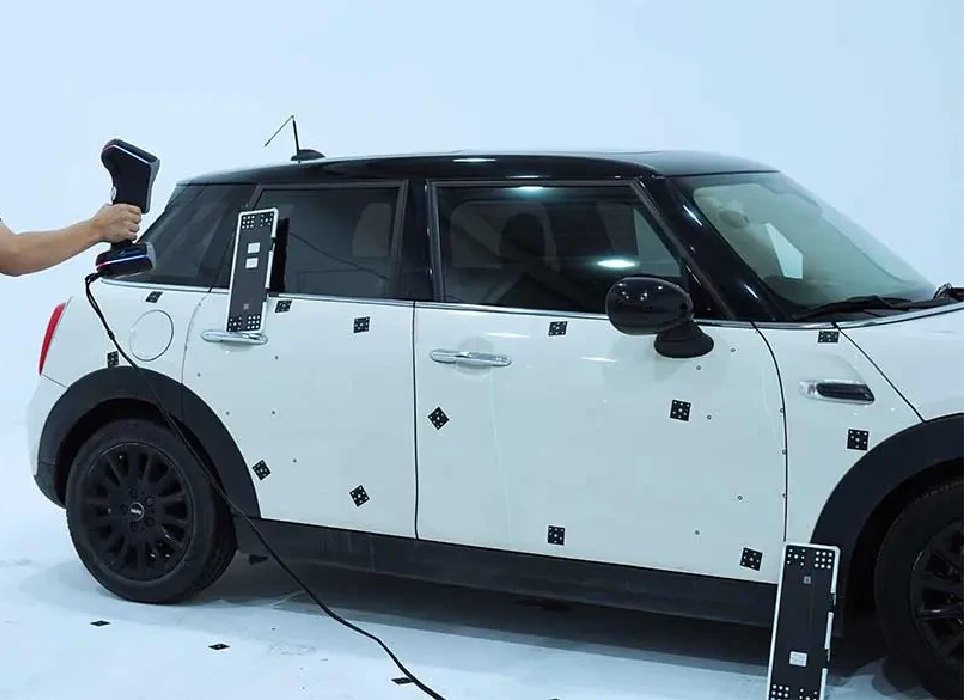

Built-in large-format photogrammetry
Built-in infrared photogrammetry system with a format of up to 3760 mm x 3150 mm can effectively eliminate the cumulative error caused by large-size measurement and ensure volume accuracy, especially suitable for scanning large-size objects.

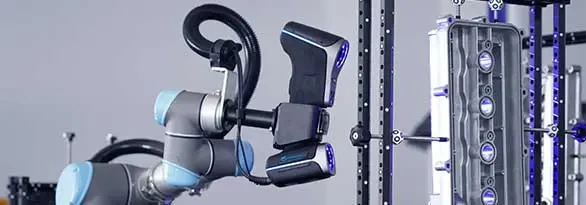

Metrology-grade NDT Measuring

Experience Diverse Ultimate from Metrology Measurement. With KSCAN Magic, the possibilities are endless, making it the ultimate solution for all metrology measurement needs.The KSCAN handheld 3D scanner boasts an exceptional scanning accuracy of up to 0.020 mm. When coupled with the MSCAN-L15 photogrammetry system, it excels even further by achieving a volumetric accuracy of 0.015 mm + 0.012 mm/m. This technology is pivotal in driving ultra-high precision Non-destructive Testing (NDT) catering to a diverse range of industries.

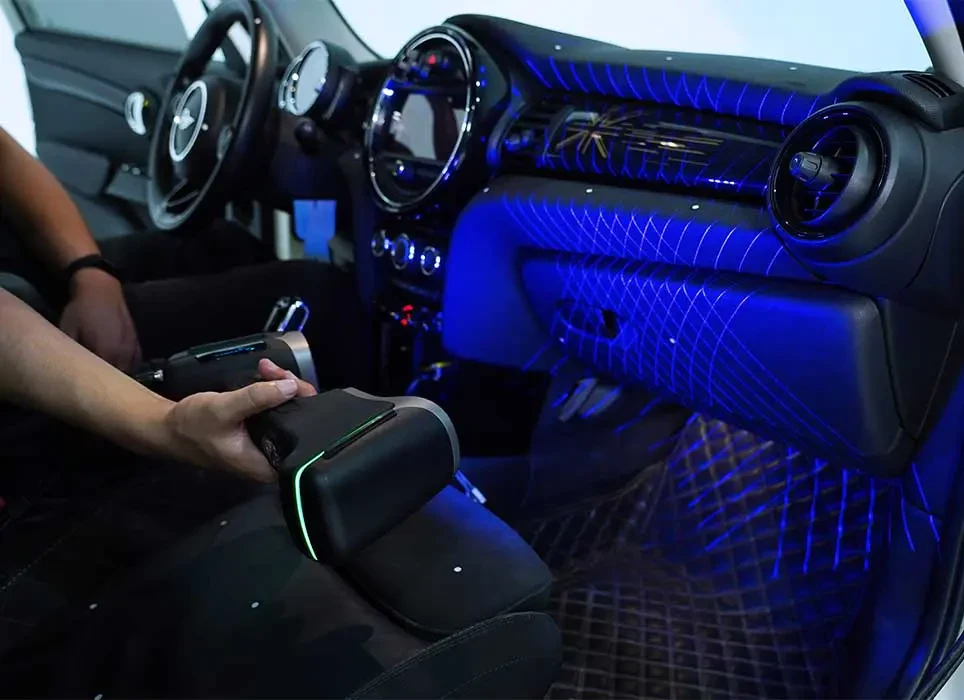

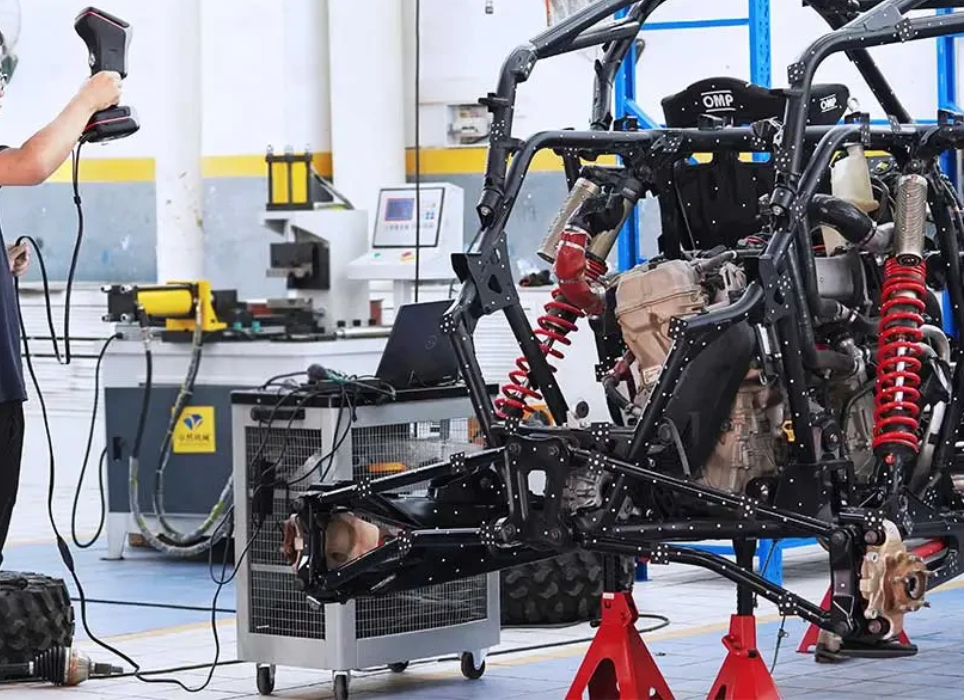

Flexible Uses

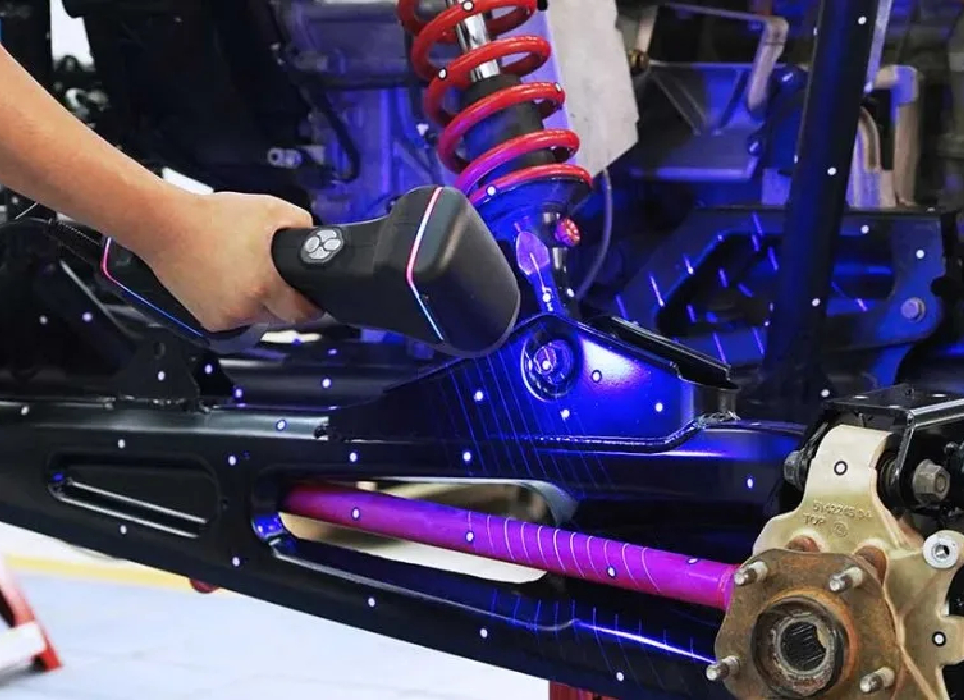

Experience Diverse Ultimate from Metrology Measurement. With KSCAN Magic, the possibilities are endless, making it the ultimate solution for all metrology measurement needs.KSCAN-Magic is lightweight and portable and can conduct 3D measurements anywhere and anytime regardless of vibrations, temperature, and humidity. Moreover, KSCAN-Magic is capable of 3D scanning various surfaces to capture precise 3D data, and it performs well even in 3D scanning reflective and black surfaces.

Technical Specifications

Type		KSCAN-Magic	KSCAN-MagicⅡ
Scan mode	Ultra-fast scanning	11 blue laser crosses	17 blue laser crosses
	Hyperfine scanning	7 blue parallel laser lines
	Large area scanning	11 parallel infrared laser lines
	Deep hole scanning	1 extra blue laser line
Accuracy(1)		Up to 0.020 mm (0.0008 in)
Scanning rate up to		2,700,000 measurements/s	4,150,000 measurements/s
Scanning area up to		1440 mm × 860 mm (57.0 in × 33.9 in)
Laser class		CLASS Ⅱ (eye-safe)
Resolution up to		0.010 mm (0.0004 in)
Photogrammetry system	Scanning area	3760 mm × 3150mm (148.0 in × 124.0 in)
	Depth of field	2500 mm (98.4 in)
Volume accuracy（2）	Work alone	0.015 mm + 0.030 mm/m (0.0006 in + 0.00036 in/ft)
	Work with 1m reference bar	0.015 mm + 0.020 mm/m (0.0006 in + 0.00024 in/ft)
	Work with MSCAN-L15	0.015 mm + 0.012 mm/m (0.0006 in + 0.00014 in/ft)
Stand-off distance		300 mm (11.8 in)
Depth of field		925 mm (36.4 in)
Output formats		.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Operating temperature range		-10℃-40℃ (14℉-104℉)
Interface mode		USB 3.0
Patents		CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1，KR102209255B1, US10914576B2
(1) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, probing error (size) (PS) performance is evaluated. (2) ISO 17025 accredited: Based on VDI/VDE 2634 Part3 standard and JJF 1951 specification, sphere spacing error (SD) performance is evaluated.
