AXE-B 3D Scanner

Category： Handheld 3D Scanners
INQUIRY EMAIL

Product Description:

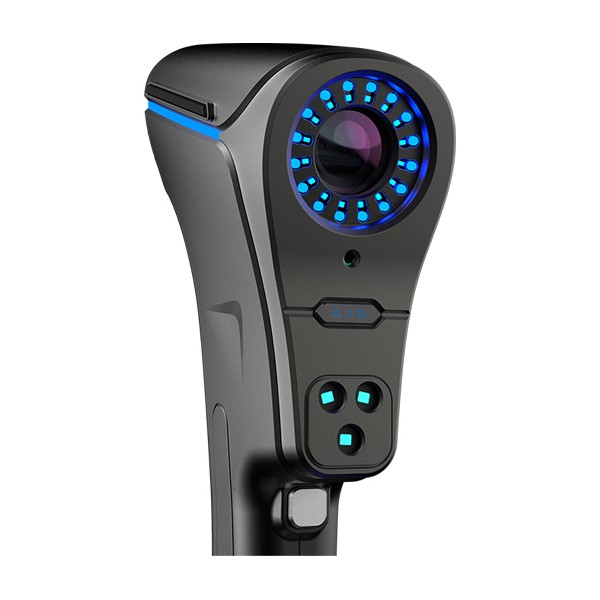

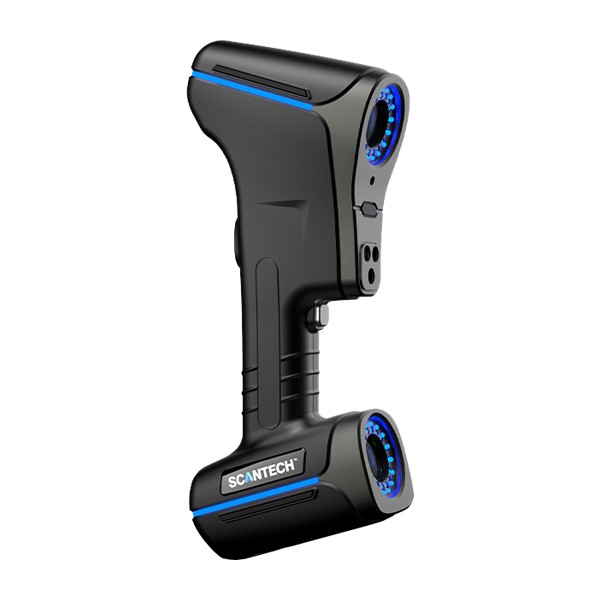

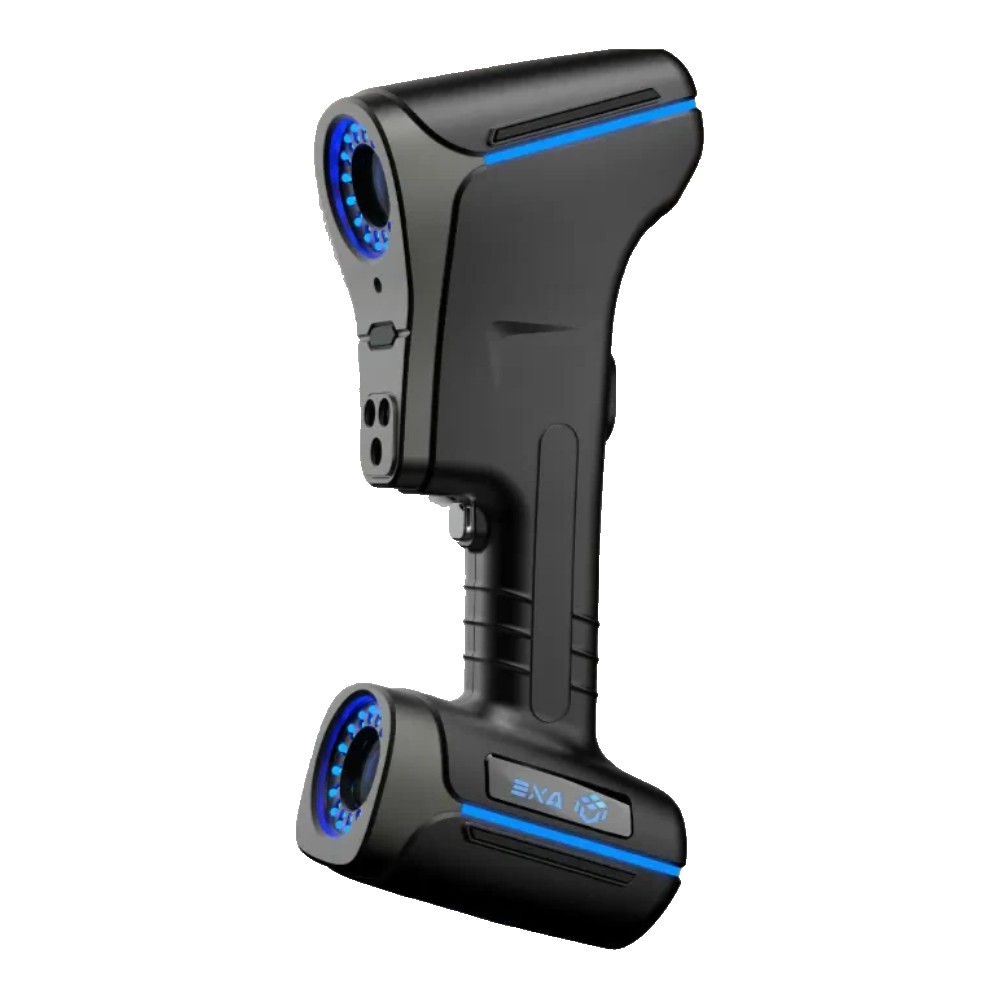

AXE-B 3D Model Scanner

The AXE-B 3D model scanner leverages advanced optical measurement technology to capture highly detailed 3D models of objects. With an impressive maximum scanning speed of 2,000,000 measurements per second, this scanner excels at swiftly and accurately gathering 3D data of various objects. Its ability to capture precise deviations on the geometric surface ensures that the scanned models are incredibly accurate and true to the original objects. This makes the AXE-B 3D scanner an invaluable tool for industries such as manufacturing, design, and prototyping.

Unlock 3D Scanning Precision

Discover the power of our advanced 3D model scanners for precise and detailed captures. With cutting-edge optical technology and rapid scanning speeds, our scanners deliver accurate digital replicas quickly.

Extreme-fast Response

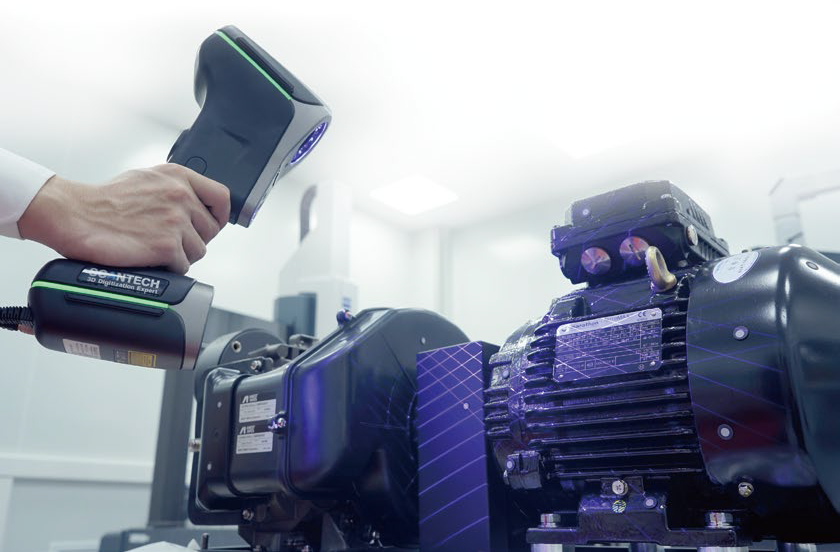

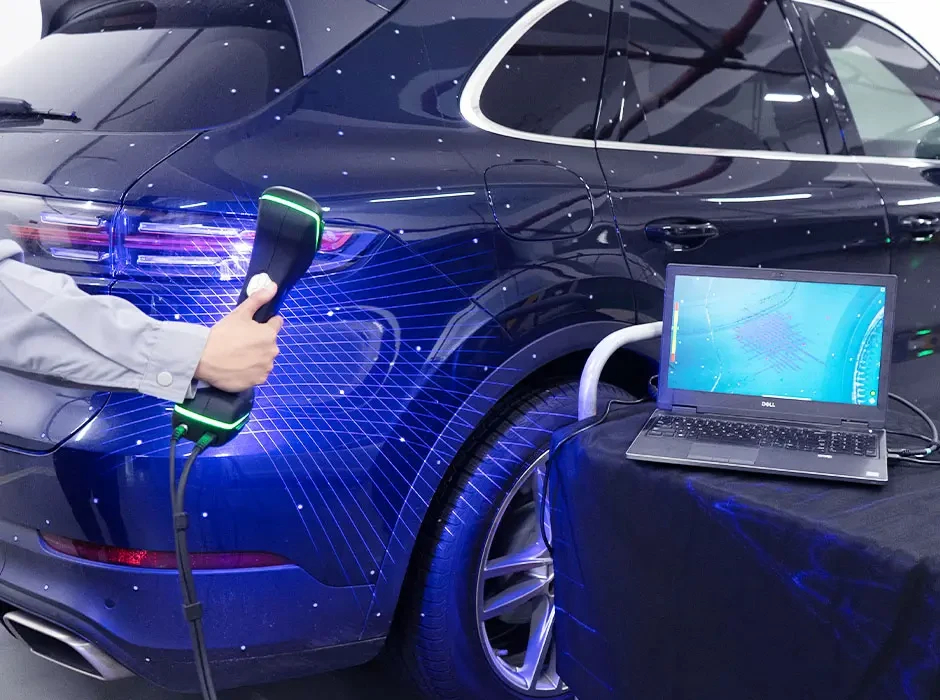

The AXE-B 3D model scanner features a maximum of 17 intersecting blue laser lines, ensuring rapid and precise scanning at speeds of up to 2,000,000 measurements per second. This exceptional performance translates to unparalleled work efficiency.

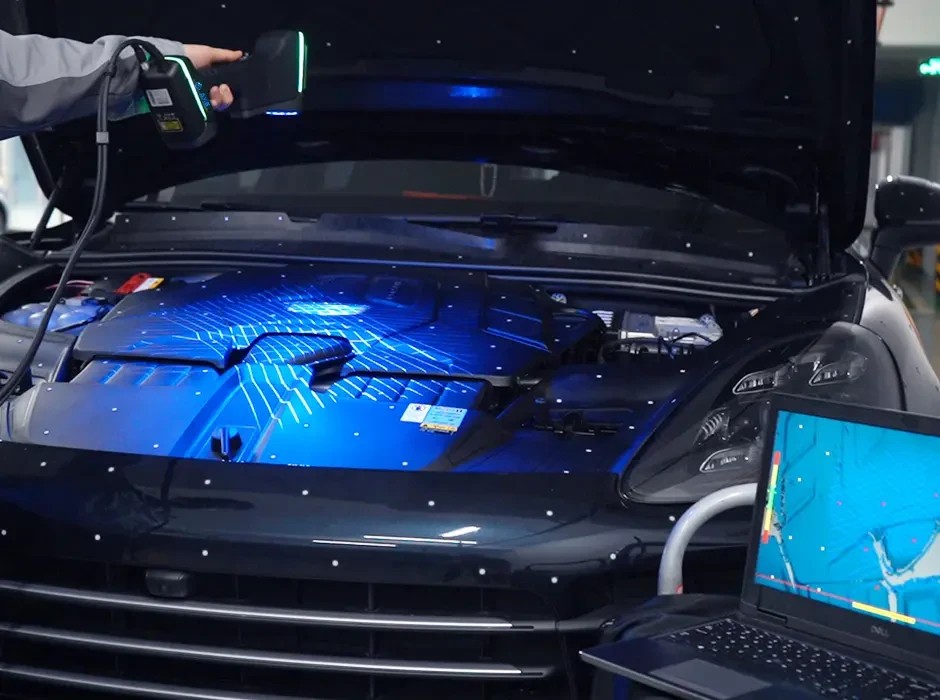

With global initiative built-in photogrammetry system, AXE-B outputs ultra-large scanning area and metrology-grade measurement accuracy. Getting rid of limitations like size, shape, material and complexity of the object, AXE-B can freely choose working modes of efficient high-speed scanning and accurate deep hole scanning. It achieves ultra-high precision 3D inspection of medium to large-sized projects without the aid of extra devices.

Versatile Stand-alone Operation

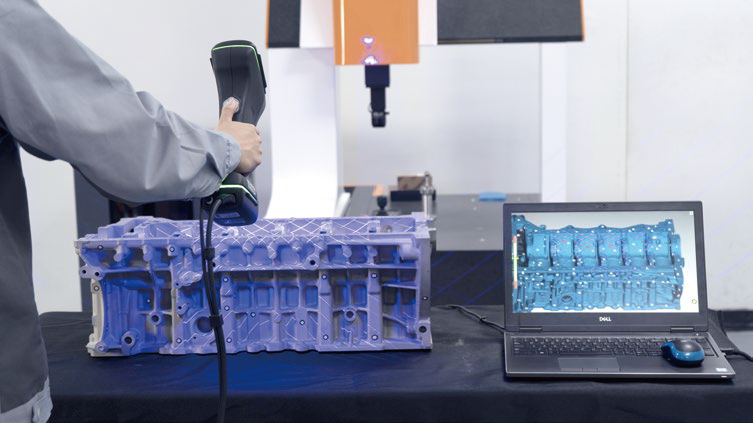

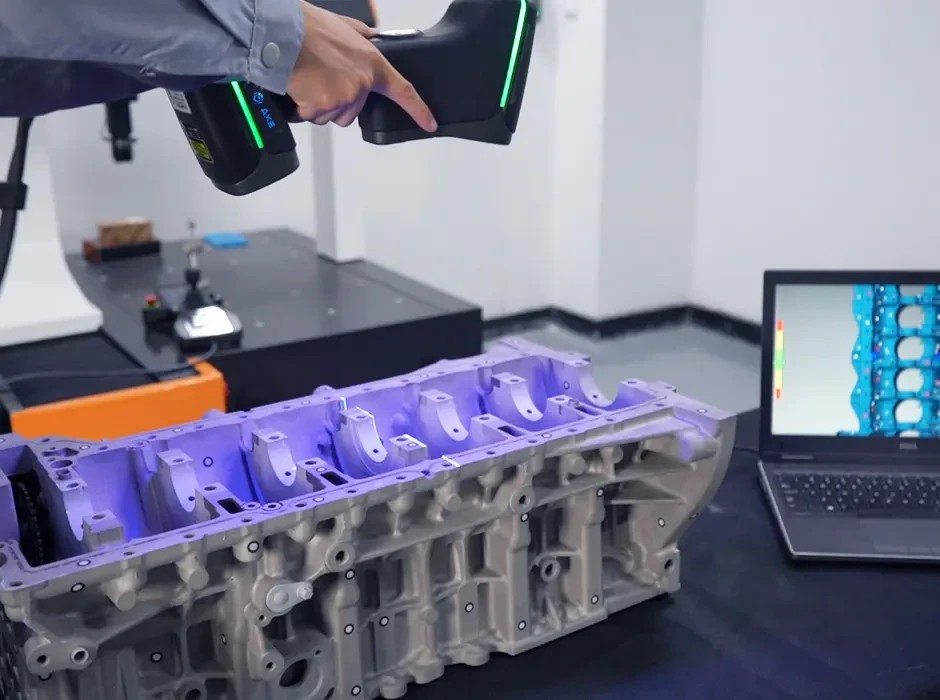

Our AXE-B scanner features flexible working modes tailored to different scanning needs: high-speed scanning for efficient results and precise deep hole scanning for intricate positions such as deep holes and challenging angles. It enables accurate 360° real-time 3D inspections independently, allowing for efficient and precise assessments of medium to large-sized workpieces while working alone.

Revolutionary Patent for Wide-Angle Vision

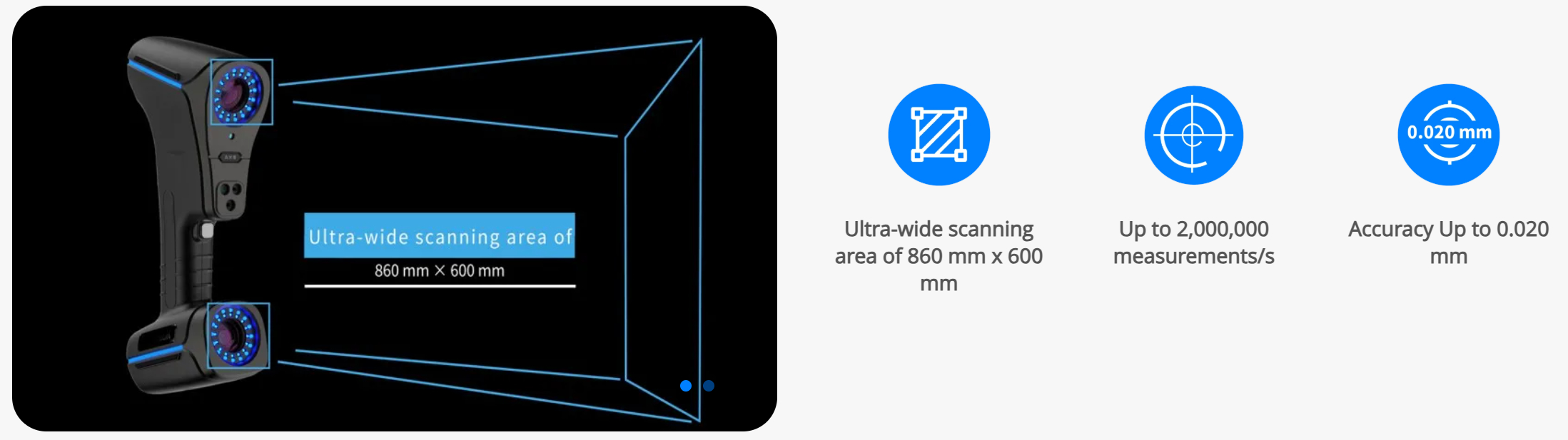

Our cutting-edge photogrammetry system sets a global standard for measuring medium to large-sized objects, boasting a volumetric accuracy of 0.030 mm/m. With an expansive scanning area of 860 mm × 600 mm, enjoy an unparalleled 3D scanning experience.

Technical Specifications

Type		AXE-B17	AXE-B11
Scan mode	Ultra-fast scanning	17 blue laser crosses	11 blue laser crosses
	Deep hole scanning	1 extra blue laser line
Accuracy(1)		Up to 0.020 mm (0.0008 in)
Measurement rate up to		2,000,000 measurements/s	1,300,000 measurements/s
Scanning area up to		860 mm × 600 mm (33.9 in × 23.6 in)	550 mm × 600 mm (21.7 in × 23.6 in)
Scan mode (Photogrammetry)	Scanning area up to	3760 mm × 3150 mm (148.0 in × 124.0 in)	2500 mm × 3000 mm (98.4 in × 118.1 in)
	Depth of field	2500 mm (98.4 in)
Laser class		CLASSⅡ (eye-safe)
Resolution up to		0.025 mm (0.0009 in)
Volumetric accuracy (2)	Work alone	0.020 mm + 0.030 mm/m (0.0008 in + 0.00036 in/ft)	0.020 mm + 0.035 mm/m (0.0008 in + 0.0004 in/ft)
	Work with 1m reference bar	0.020 mm + 0.020 mm/m (0.0008 in + 0.00024 in/ft)
	Work with	0.020 mm + 0.012 mm/m (0.0008 in + 0.00014 in/ft)
Stand-off distance		300 mm (11.8 in)
Depth of field		500 mm (19.7 in)
Output formats		.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Operating temperature range		-10°C–40°C (14℉-104℉)
Interface mode		USB 3.0
Patents		CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN206905709U, CN107202554B, US10309770B2, KR102096806B1, KR102209255B1, US10914576B2CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN206905709U, CN107202554B, US10309770B2, KR102096806B1, KR102209255B1, US10914576B2
(1) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, probing error (size) (PS) performance is evaluated. (2) ISO 17025 accredited: Based on VDI/VDE 2634 Part3 standard and JJF 1951 specification, sphere spacing error (SD) performance is evaluated.
