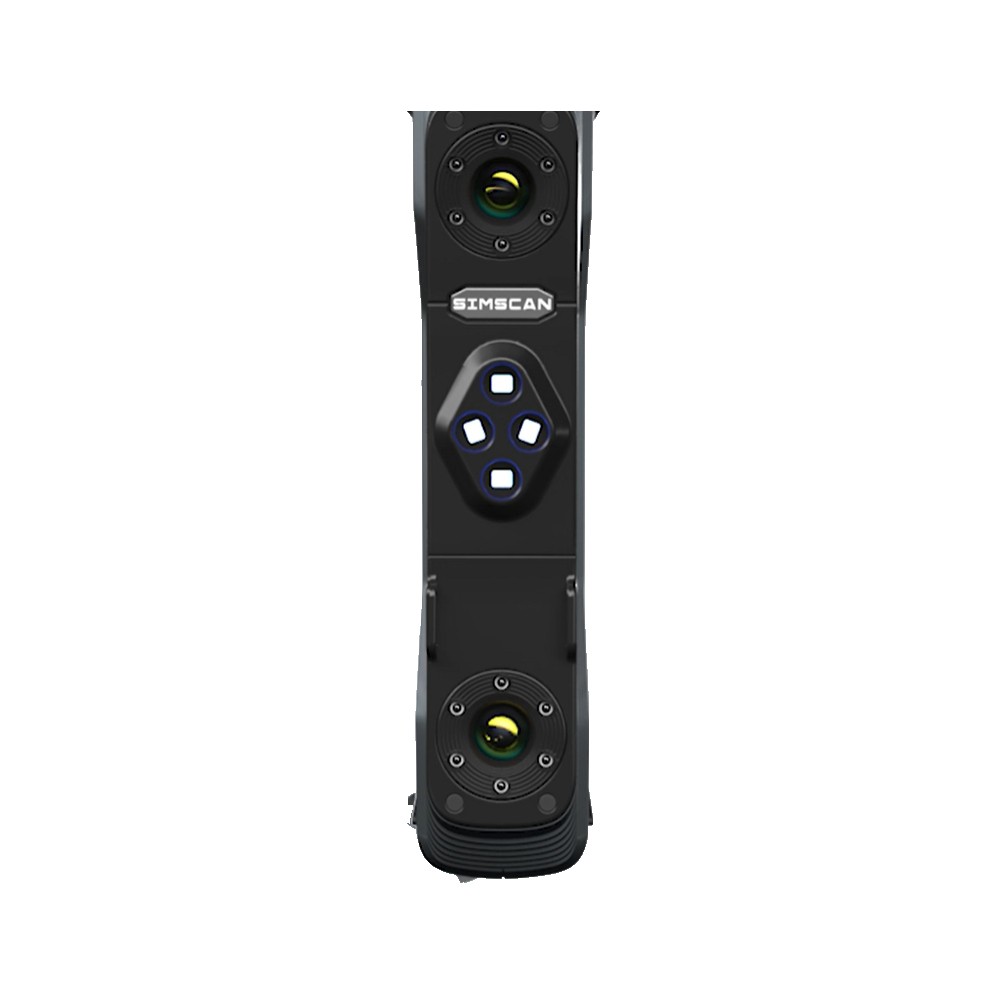

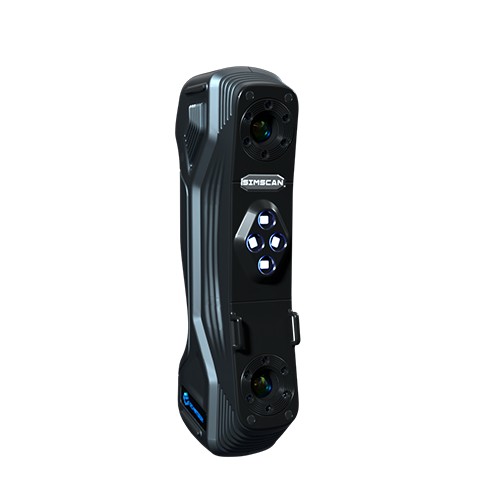

SIMSCAN Handheld 3D Laser Scanner

SIMSCAN, a palm-sized portable 3D laser scanner, is specially designed for 3D scanning narrow and hard-to-reach areas. Featuring full-metal housing, it is incredibly sturdy and reliable. SIMSCAN has become a disruptive innovation among professional 3D scanners due to its compact size, simplicity and robust performance. Its cutting-edge design also wins itself German Red Dot Award and China Design Silver Award. SIMSCAN performs high-quality 3D scanning regardless of any restrictions from the working environment. It is ideal for 3D scanning both narrow spaces and large-scale parts. Users can accurately capture every detail of objects and construct 3D models in a very short amount of time with the help of this metrology-grade 3D measurement instrument.

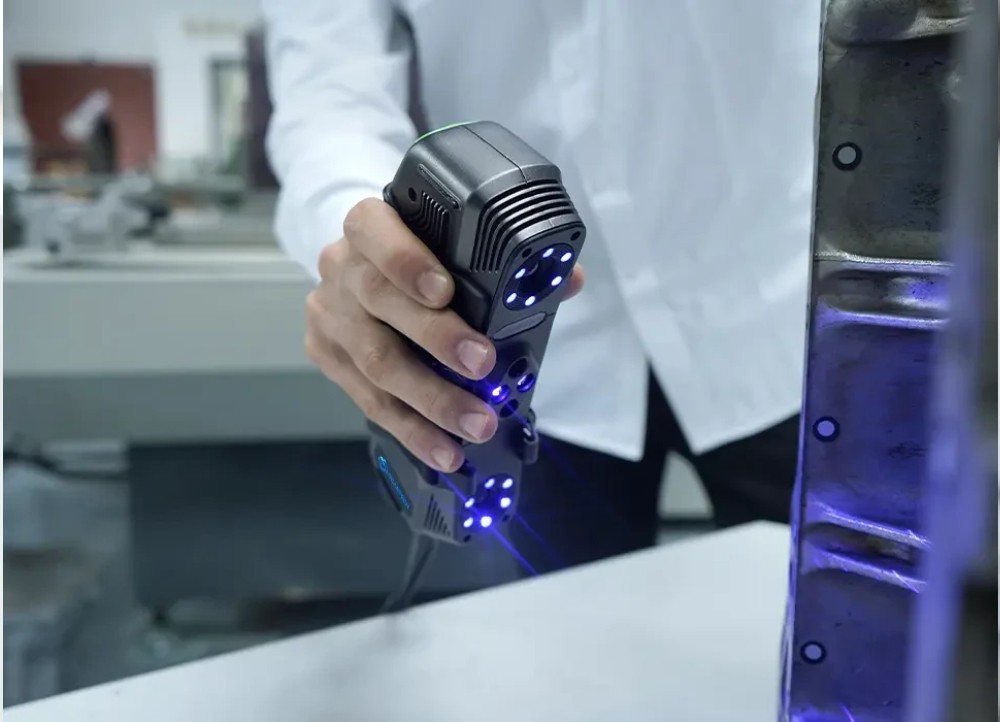

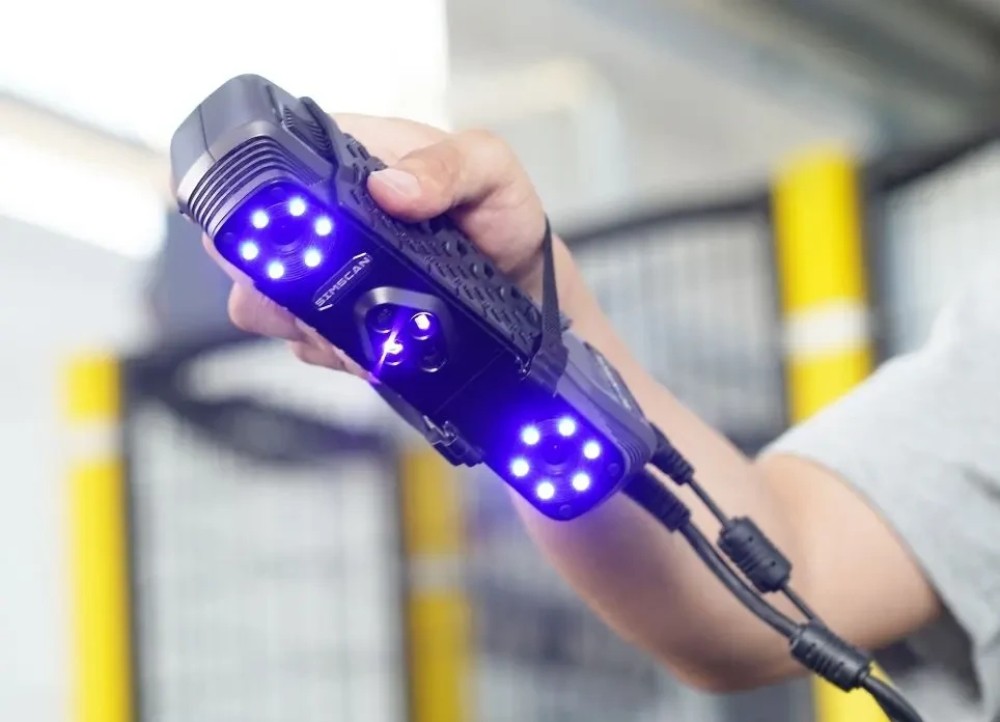

Single-handed Control
SIMSCAN’s full-metal housing provides solid protection and ensures extraordinary durability. Weighted only 570 g and sized 203 × 80 × 44 mm, SIMSCAN portable 3D scanner brings unparalleled simpleness for scanning anything with one hand.
Because of its hollow structure, it dissipates heat more effectively. The 3D laser scanner is efficient at performing measurements with low power consumption. Thanks to its versatility, it can meet a wide range of needs of 3D measurements.

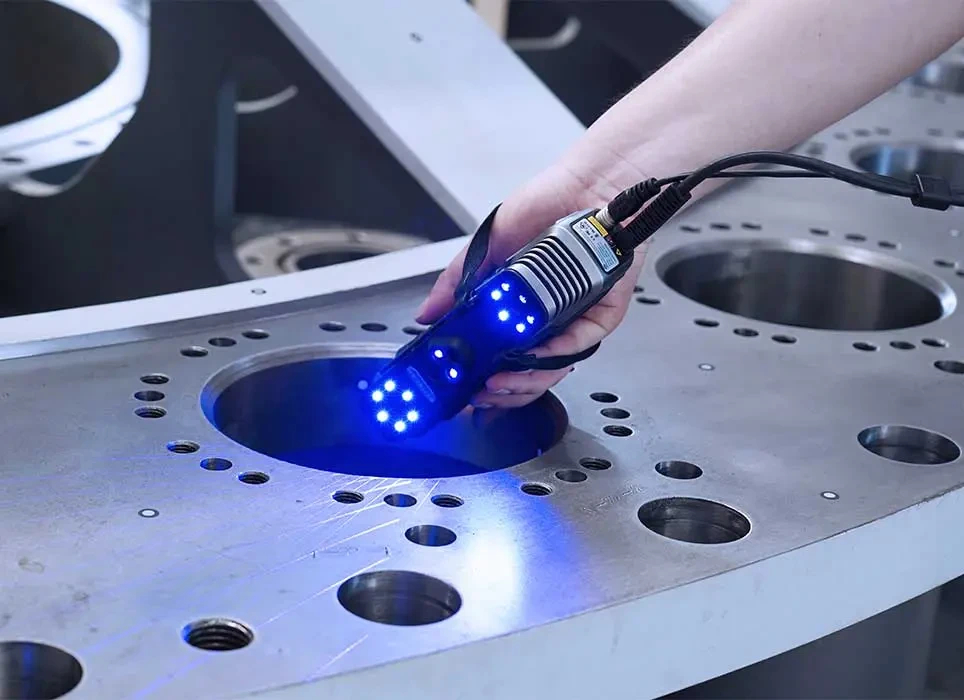

Narrow-space Measuring Booster

Compared with its competitors, SIMSCAN has a much shorter camera distance of 130 mm, which forms a steeper view angle to 3D scan narrow spaces. Therefore, SIMSCAN is more capable of capturing accurate and complete data in hard-to-reach areas like deep grooves and ensures users to capture full-field data.

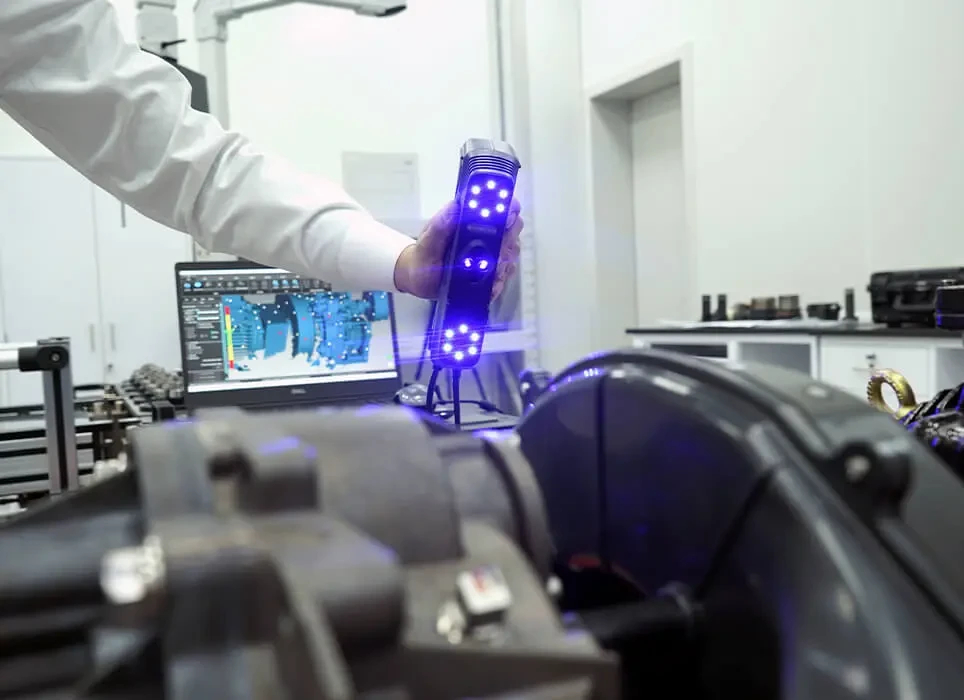

Detail, Everywhere
With its built-in HD cameras and three scanning modes, it realizes high-precision scanning with an accuracy up to 0.020 mm. It can accurately capture the 3D data of objects with complex surfaces or in confined areas.

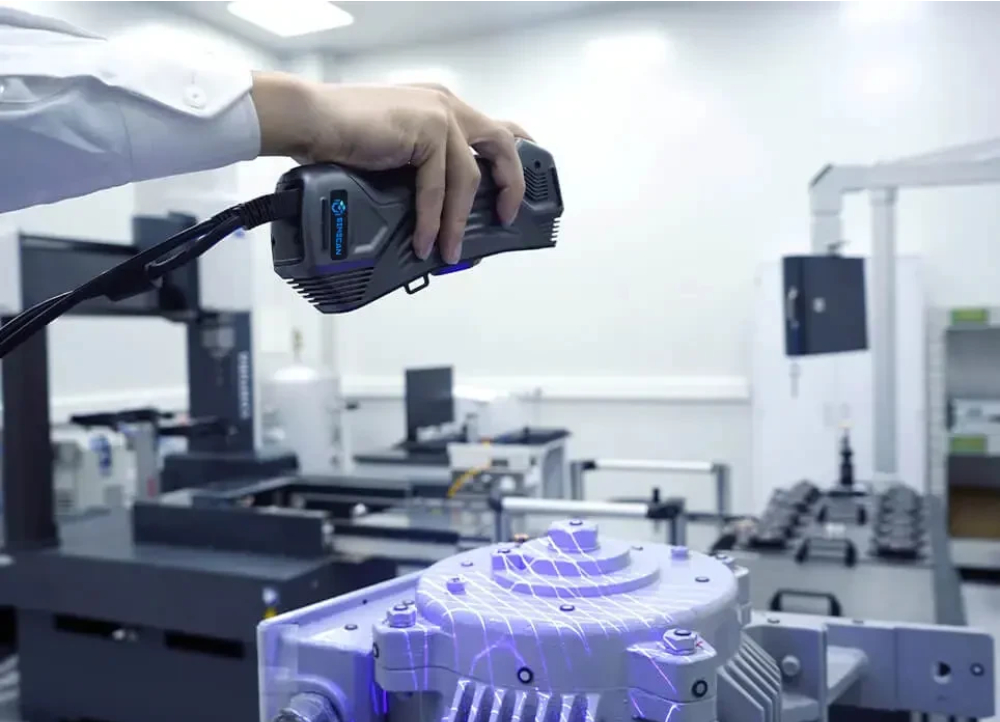

Smooth 3D Experience
SIMSCAN boasts a remarkable 3D scanning rate of up to 2.8 million measurements per second, made possible by its advanced algorithm. This design ensures users enjoy a seamless and efficient 3D digitization process.

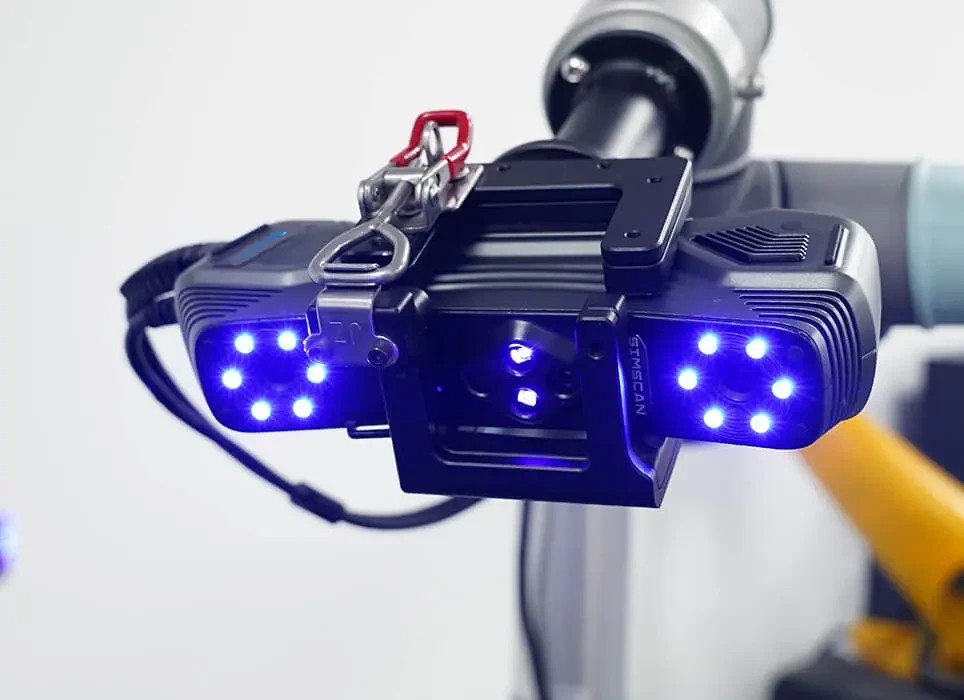

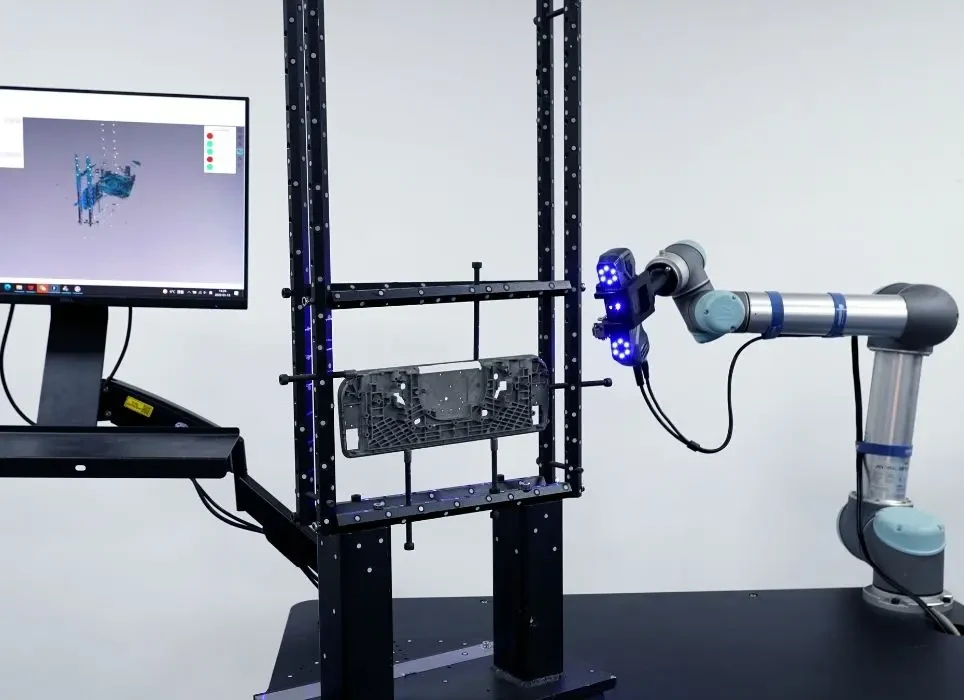

When paired with Scantech’s automated 3D measurement system, it enables continuous measurements, breaking free from the constraints of traditional methods. Automated high-batch measurement overcomes the limitation of traditional methods and it significantly improves efficiency for all stages of manufacturing.

Technical Specifications

Type		SIMSCAN 42	SIMSCAN 30	SIMSCAN 22
Scan mode	Ultra-fast scanning	17 blue laser crosses	11 blue laser crosses	7 blue laser crosses
	Hyperfine scanning	7 blue parallel laser lines
	Deep hole scanning	1 extra blue laser line
Accuracy(1)		Up to 0.020 mm (0.0008 in)
Scanning rate up to		2,800,000 measurements/s	2,020,000 measurements/s	1,250,000 measurements/s
Scanning area up to		700 mm × 600 mm (27.6 in × 23.6 in)	650 mm × 550 mm (25.6 in × 21.7 in)
Laser class		CLASSⅡ (eye-safe)
Resolution up to		0.020 mm (0.0008 in)
Volume accuracy(2)	Standard	0.015 mm + 0.035 mm/m (0.0006 in + 0.0004 in/ft)
	Paired with MSCAN-L15	0.015 mm + 0.012 mm/m (0.0006 in + 0.00014 in/ft)
Stand-off distance		300 mm (11.8 in)
Depth of field		550 mm (21.7 in)
Output formats		.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Operating temperature range		-10℃–40℃ (14℉-104℉)
Interface mode		USB 3.0
Dimensions		203 mm × 80 mm × 44 mm (8.0 in × 3.1 in × 1.7 in)
Weight		570 g (1.26 lb)
Patents		CN204329903U, CN104501740B, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204902785U, CN106403845B, CN110030946B, CN212300269U, CN211904059U, CN211696268U, CN306053019S, CN212606697U, CN306321502S

(1)  ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, probing error (size) (PS) performance is evaluated.

(2)  ISO 17025 accredited: Based on VDI/VDE 2634 Part3 standard and JJF 1951 specification, sphere spacing error (SD) performance is evaluated.
