AutoScan-K 3D System

Category： Automated 3D System
INQUIRY EMAIL

Product Description:

AutoScan-K 3D System

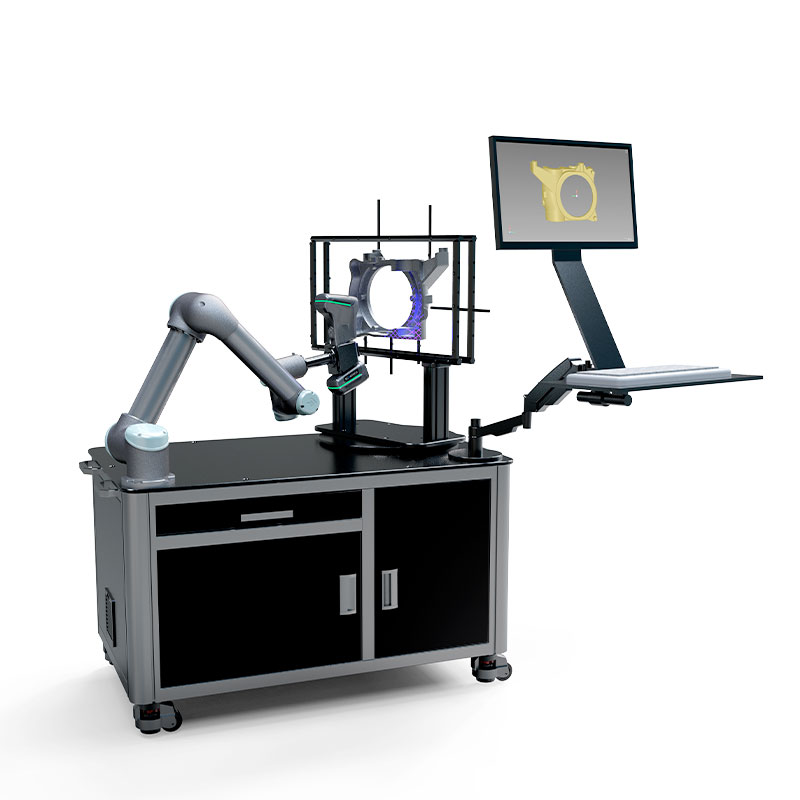

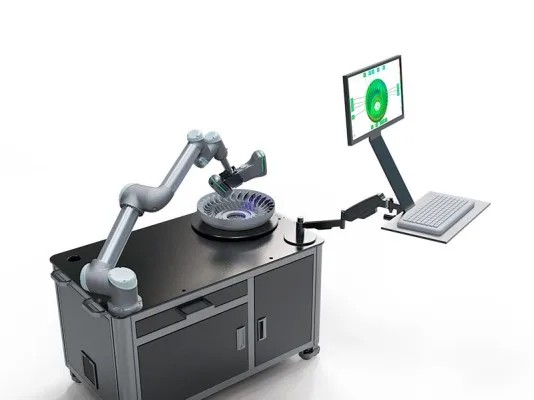

AutoScan-K series, an automatic 3D inspection system, can realize non-contact and non-destructive inspection using machine vision technology. While ensuring extra-high accuracy, it can effectively carry out online batch scanning and inspection. Featuring 24-hour constant operation, the AutoScan-K 3D system helps enterprises reduce manufacturing costs, accelerate product time-to-market and increase return on investment.

Equipped with multiple working modes, the AutoScan-K 3D system can adapt to the measurement in various industrial scenarios. Meanwhile, based on cutting-edge machine vision algorithms, it can precisely control the movements of the robot, thus realizing efficient and automatic batch inspection.

Automatic Whole-process Inspection

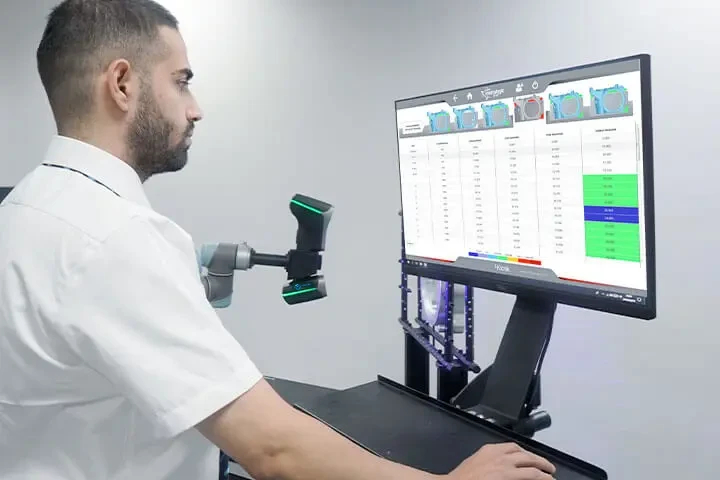

Without human involvement, AutoScan-K is an automated 3d scanner that can automatically conduct batch 3D scanning and inspection for data comparison, and generate inspection reports, after scanning routes and measurement process are set for different products.

Personalized Operation

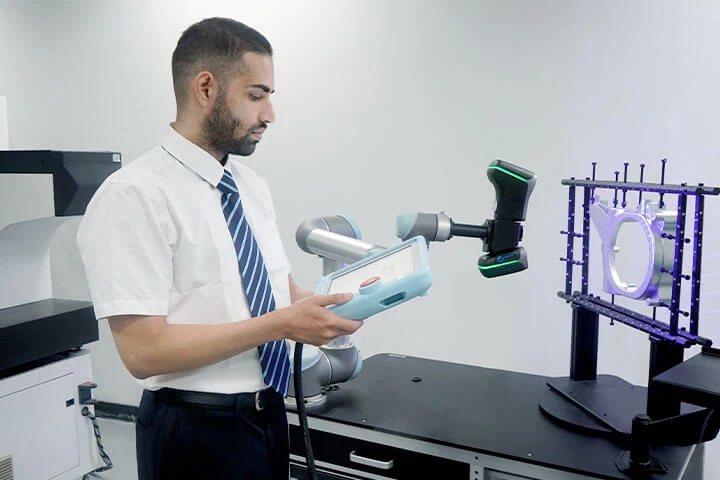

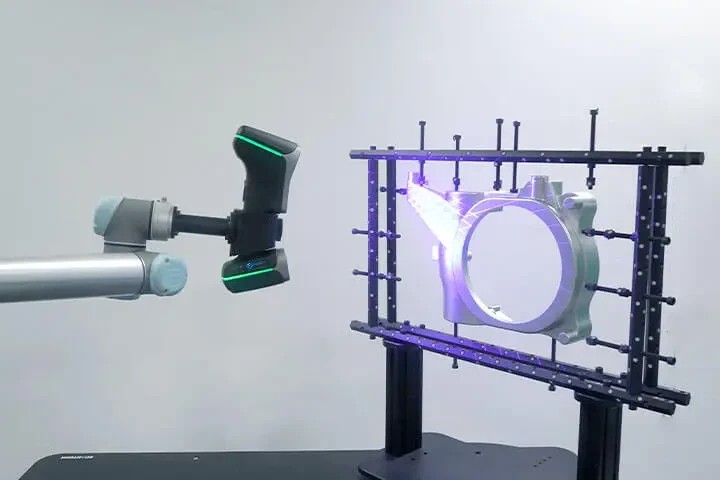

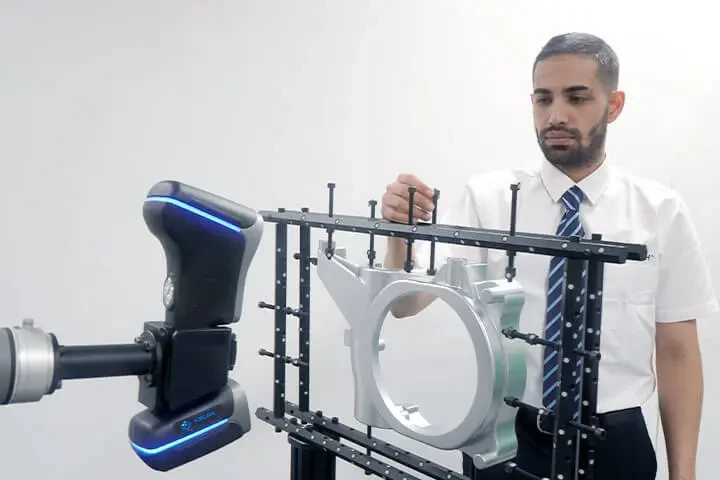

Multiple measurement modes are offered depending on the characteristics of different workpieces. To meet different inspection requirements, the workpieces can be clamped from multiple angles to set inspection routes.

Safe and Reliable NDT

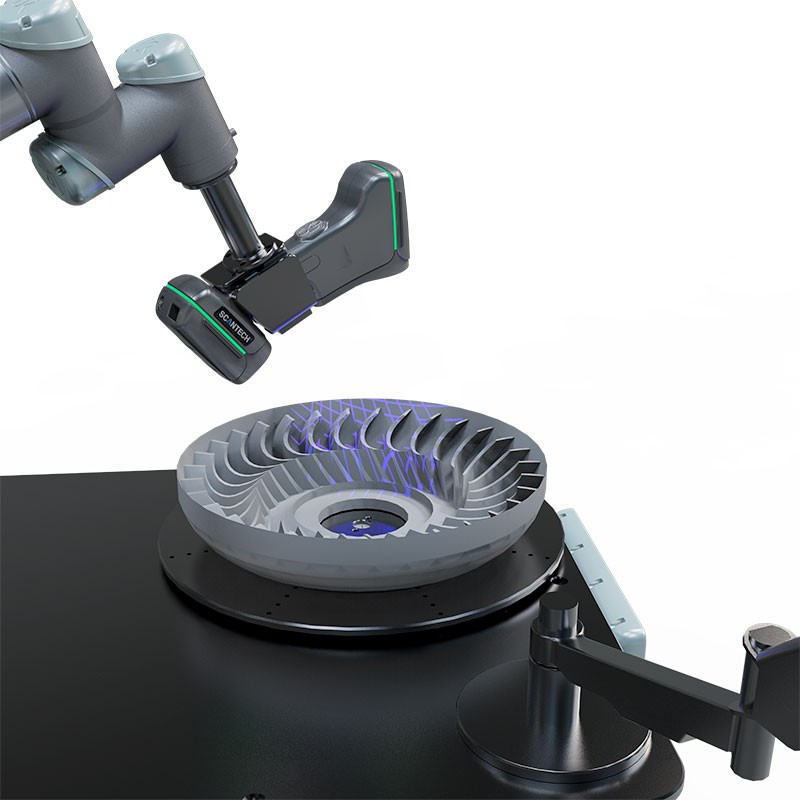

Based on automated optical measurement technology, the AutoScan-K automated 3d system truly achieves non-contact and non-destructive intelligent testing, which is safe, reliable, and applicable in different workshop environment. Its industrial intelligent rotary tables make efficient and blind-angle-free inspection possible.

Precise and Effective Measurement

AutoScan-K can inspect workpieces with different sizes, weights and pieces made from different materials. It can generate as much as 45 laser lines for high density data scanning, with the speed of up to 1,650,000 per second. It enables precise 3D inspection in harsh industrial environment with resolution up to 0.010 mm and volume accuracy up to 0.030 mm/m.

Secondary Development

The secondary development allows operators to control the system by calling the SDK interface.

Technical Specifications

Type		AutoScan-KM II	AutoScan-KM
Scan mode	Ultra-fast scanning	17 blue laser crosses	11 blue laser crosses
	Hyperfine scanning	7 blue parallel laser lines
	Large area scanning	11 parallel infrared laser lines
	Deep hole scanning	1 extra blue laser line
Accuracy(1)		Up to 0.020 mm (0.0008 in)
Scanning rate up to		4,150,000 measurements/s	2,700,000 measurements/s
Scanning area up to		1440 mm × 860 mm (57.0 in × 33.9 in)
Laser class		CLASS Ⅱ (eye-safe)
Resolution up to		0.010 mm (0.0004 in)
Photogrammetry system	Scanning area	3760 mm × 3150mm (148.0 in × 124.0 in)
	Depth of field	2500 mm (98.4 in)
Volumetric accuracy(2)	Work alone	0.015 mm + 0.030 mm/m (0.0006 in + 0.00036 in/ft)
	Work with 1 m reference bar	0.015 mm + 0.020 mm/m (0.0006 in + 0.00024 in/ft)
	Work with MSCAN-L15	0.015 mm + 0.012 mm/m (0.0006 in + 0.00014 in/ft)
Stand-off distance		300 mm (11.8 in)
Depth of field		925 mm (36.4 in)
Output formats		.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Operating temperature range		-10℃-40℃ (14℉-104℉)
Interface mode		USB 3.0
Patents		CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1, KR102209255B1, US10914576B2
