5-ETM27R

Product Item : 18
Category： Tool setter system
INQUIRY EMAIL

Product Description:

Product Overview

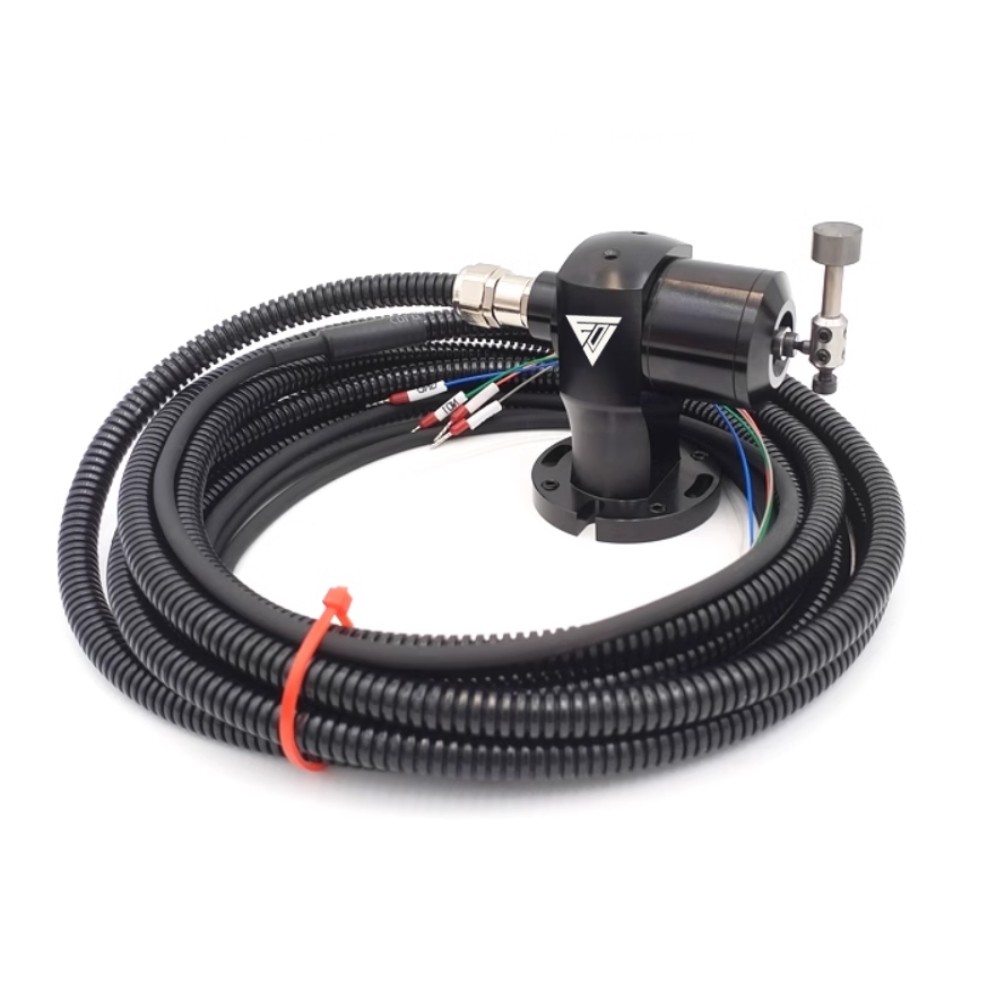

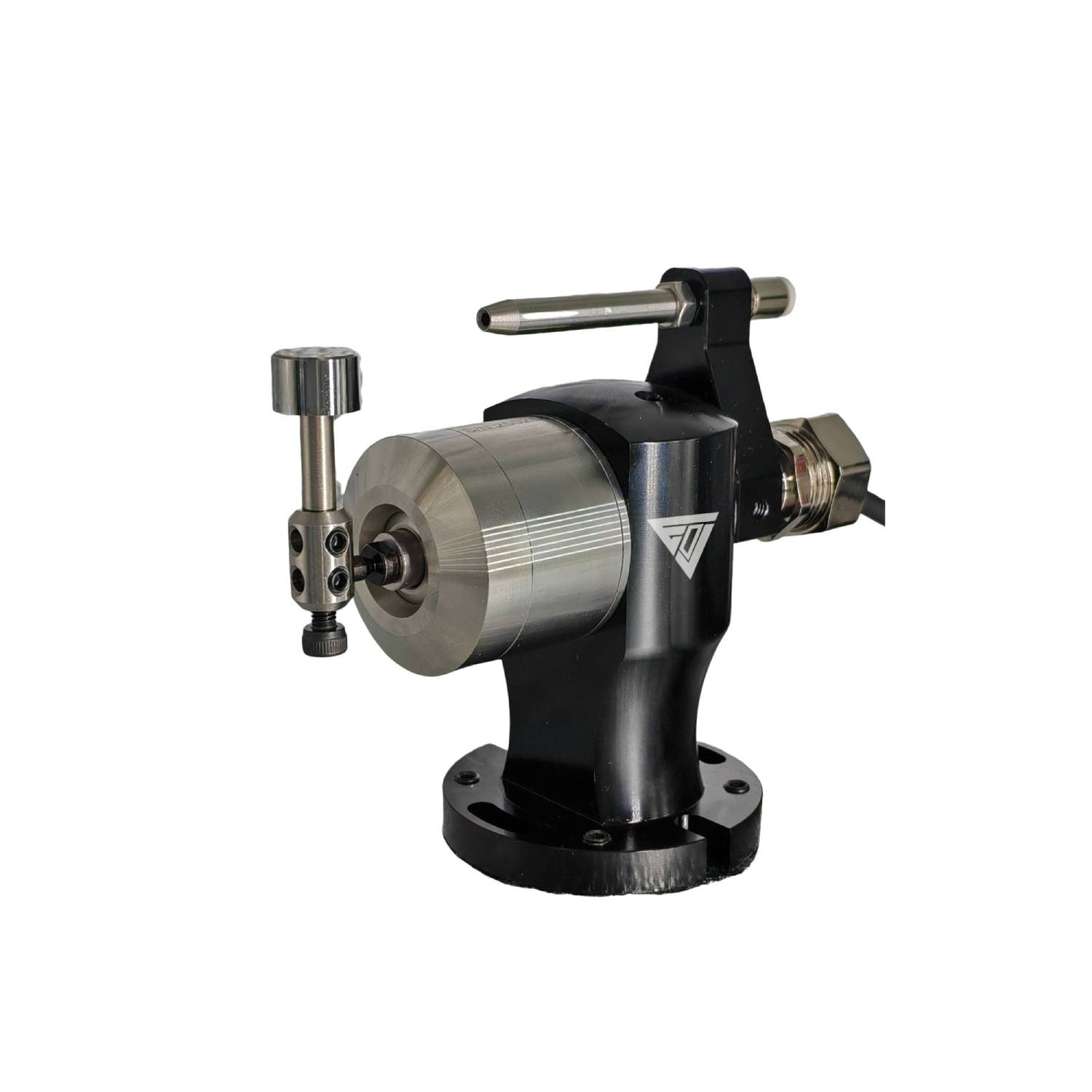

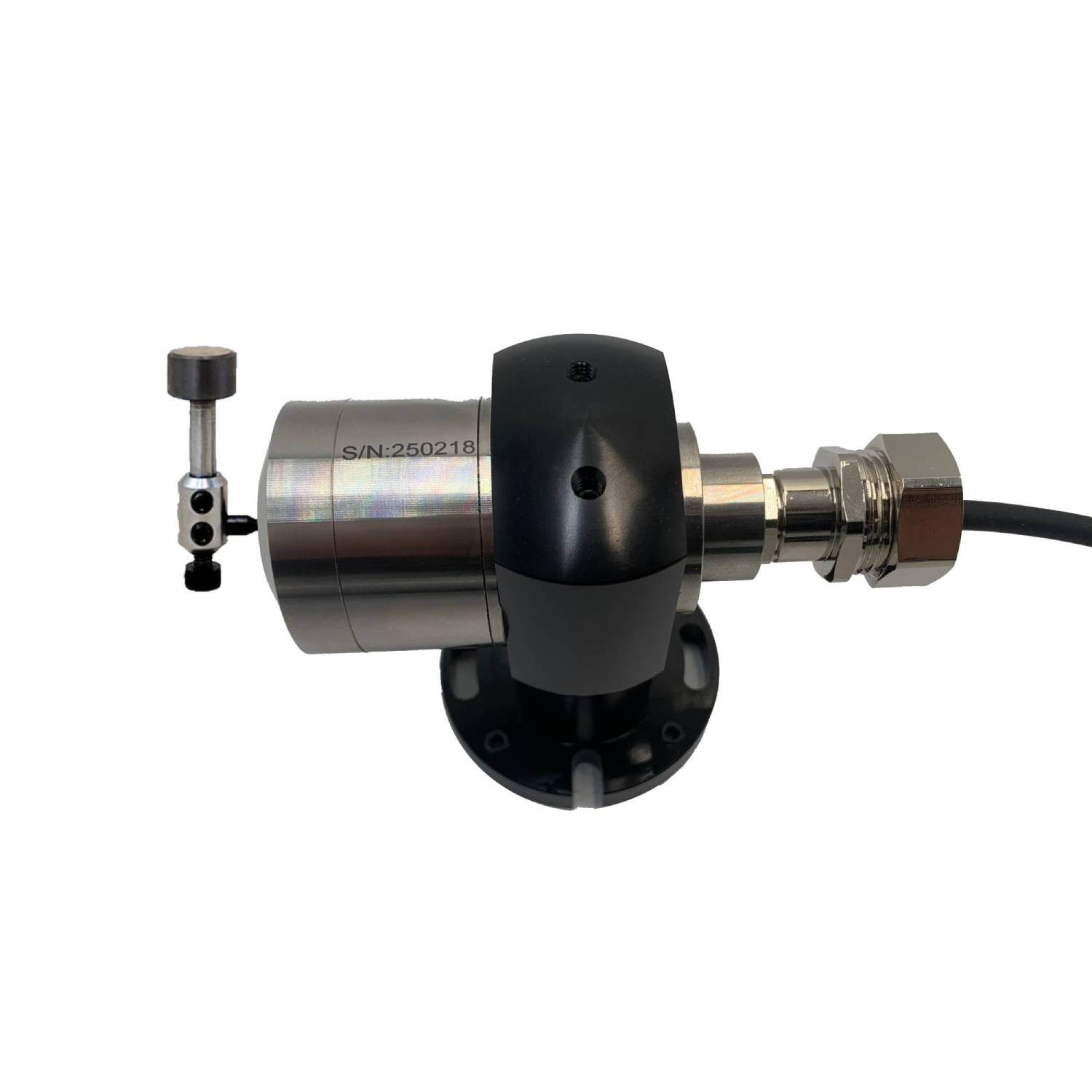

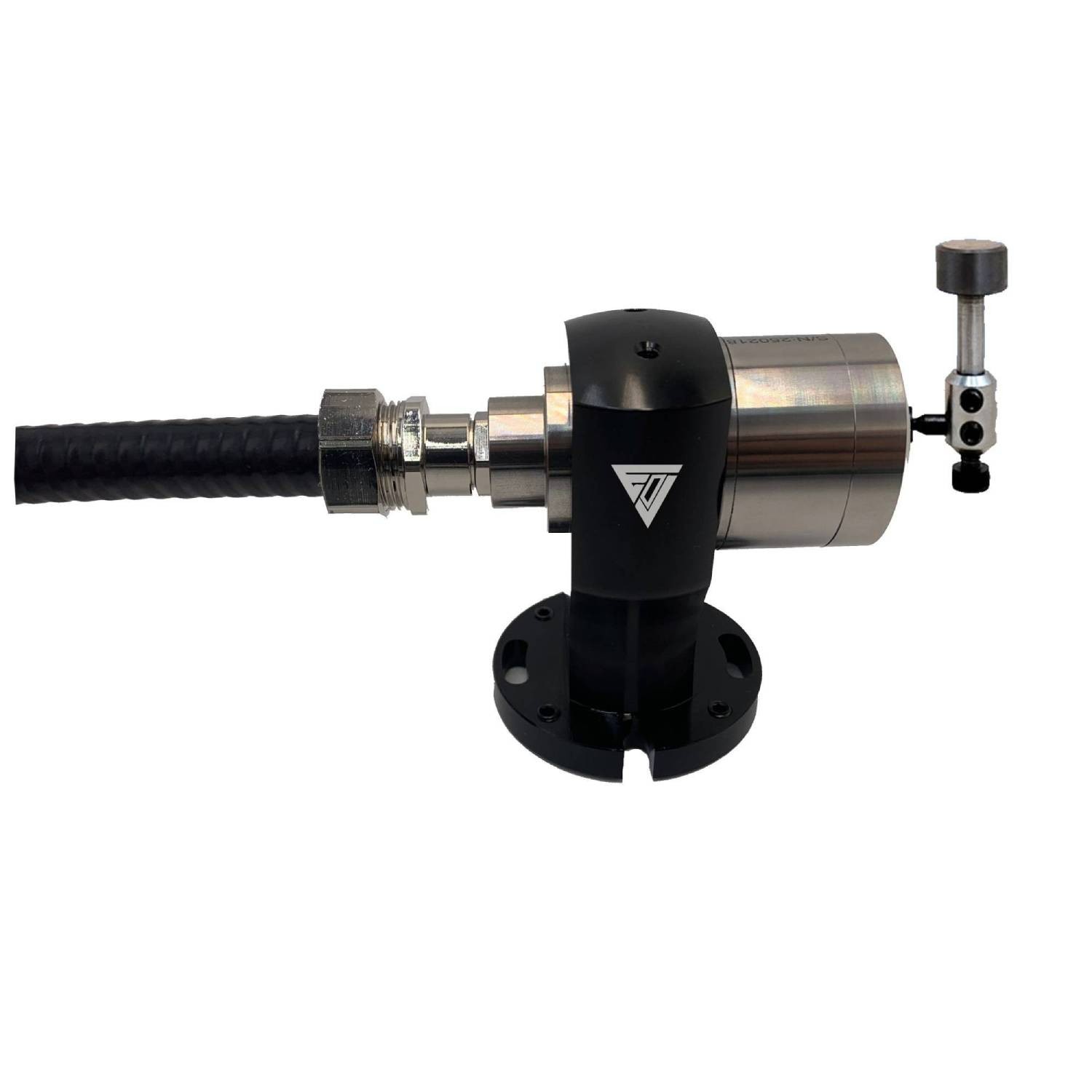

5-ETM27R Tool Setter

The 5-ETM27R is Tool Setter For tool measuring and broken tool detection on all sizes of vertical and horizontal machining centres and all gantry machining centres.

5-ETM27R have hard-wired signal transmission used for broken tool detection and rapid measurement of tool length and diameter on a wide range of tools.

It can pre-sets a wide range of tool types on small to large machine tools, performs wear, chipping, and thermal mutation compensation, and contributes to maintaining the machine's precision at all times.

What can we do？

-Automates high-precision originating of cutting tools
-Prevents machining defects due to thermal displacement and wear
-Eliminates operator burden by reducing setup time by 90%, including conventional test cutting and manual measurement
-Detection of wear in tool length and diameter
-Prevent serious losses caused by tool breakage during machining

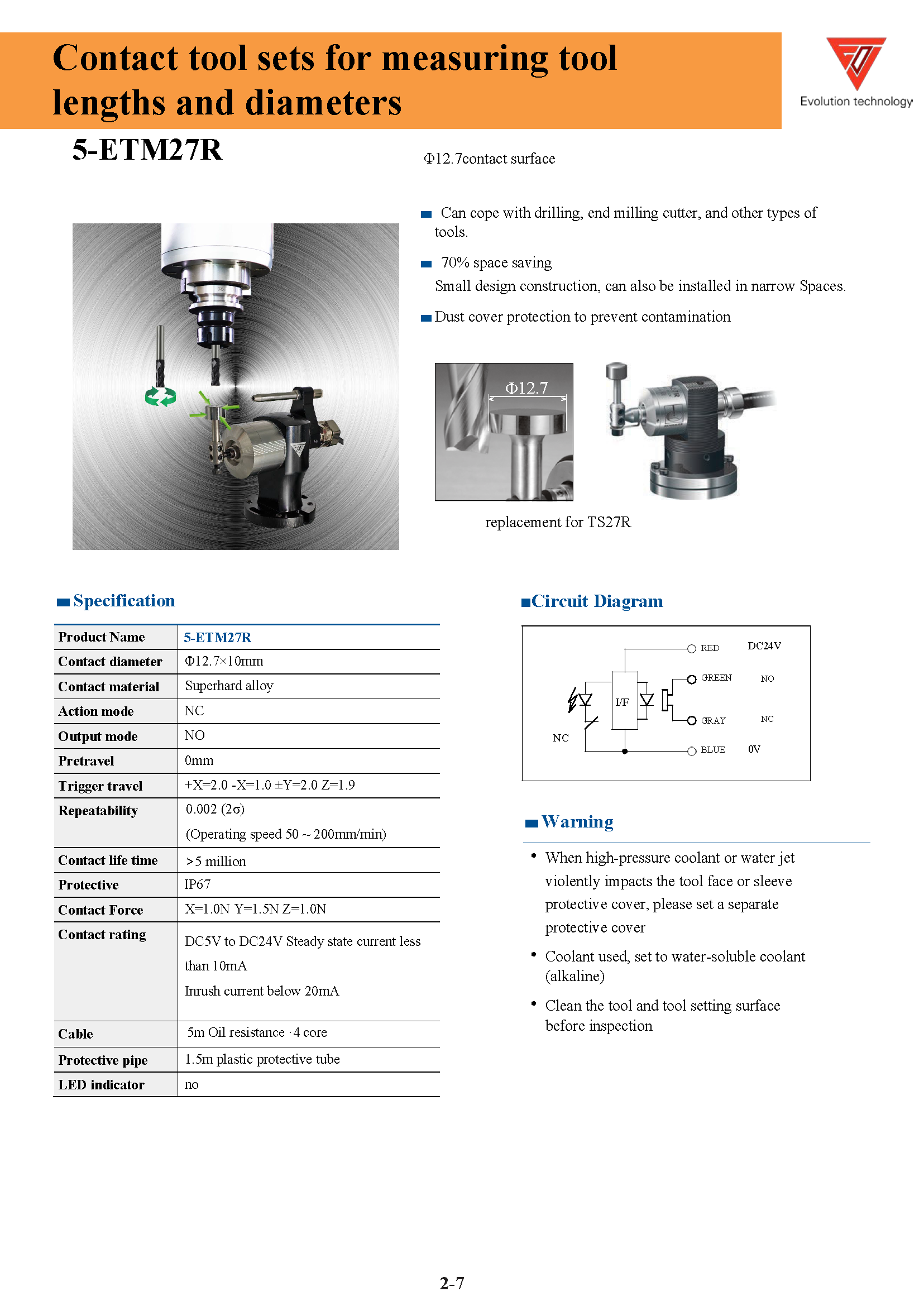

PRODUCT SPECIFICATIONS
